COB Strip Light

COB Strip Light

Features:

- High output LEDs provide excellent luminous intensities at low drive currents.

- Uniform diffusion without the need for accessories.

- The maximum beam Angle is 180°.

- Strong bending resistance.

- Dimmable using dimmable power supplies, controllers or DMX interface.

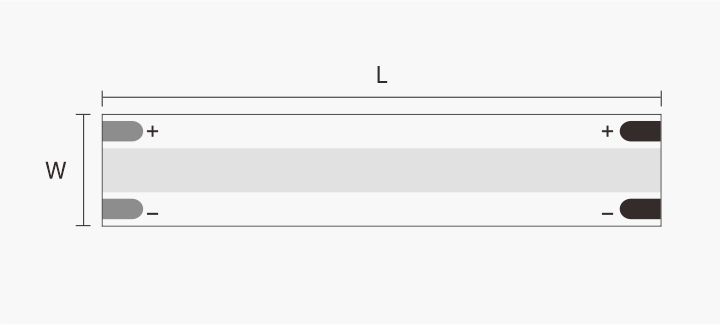

Line Drawing:

COB Strip Light

General Features:

Static White Color Strip Light

Static White Color Strip Light

Static White Color Strip Light

Static White Color Strip Light

Static White Color Strip Light

Static White Color Strip Light

IP Rating

Static White Color Strip Light

Static White Color Strip Light

Static White Color Strip Light


COB



The new technology-COB LED Strip light, featuring uniform illumination without the need for additional diffused covers or accessories. It delivers premium light quality from a solid stream of light. Perfect for areas with low clearance or reflective surfaces to eliminate spot-glare.





 COB Strip Light



 Static White Color Strip Light



 Static White Color Strip Light



 Static White Color Strip Light



 Static White Color Strip Light


Specs

• High output LEDs provide excellent luminous intensities at low drive currents.


• Uniform diffusion without the need for accessories.


• The maximum beam Angle is 180°.


• Strong bending resistance.


• Dimmable using dimmable power supplies, controllers or DMX interface.


Model NO.LED TypeVoltageLED QuantityPower(W/m)CRICCT(K)Luminous FluxLEDs/Cut(L)PCB(W)
EC309-2448008COB24V60 LEDs/m11W80+, 90+2700/3000/4000/6500660lm/m24 LEDs/50mm8mm
EC309-2460810COB24V80 LEDs/m11W80+, 90+2700-6500770lm/m6 LEDs/10mm10mm
ECRGB-2476810COB24V120 LEDs/m11W80+, 90+RGB/38 LEDs/50mm10mm



Image      DescriptionModel NO#
Static White Color Strip Light

Connector 1

01
Static White Color Strip Light


Connector 2

02
Static White Color Strip Light

Connector 3

03
Static White Color Strip Light

Connector 4

04
Static White Color Strip Light

Connector 5

05



How can we support you?

*Subscribe for new products & discount.

YES
NO

COMMENTS

LED Strip Light Family

Encore’s LED Strip light, adopting high quality LED, which passed LM80 testing. With high speed SMT, it is shaped by means of automatic mounting to offer different choice of power, color, CCT and CRI. A wide range of protections grades of IP55, IP65 and IP67 can be achieved by adopting gel coating, silicone integrated extrusion and other protection processes, applying to indoor and outdoor lighting, furniture, vehicle, advertisement and other supporting usages.
