AVA MR16 Modular Downlight System

AVA MR16 Modular Downlight System

videovideo

Products Specification:

Application:  Recessed-mounted

SDCM: <3

Beam Angle: 10°, 15°, 24°, 38°, 50°

Power: 5W, 8W, 10W, 15W

CCT: 2700K, 3000K, 4000K, 5000K

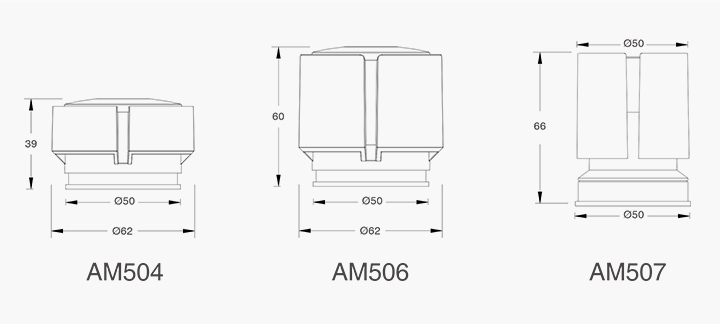

Line Drawing:

AVA MR16 Modular Downlight System

General Features:

Accessories

AVA - Commercial MR16 Modular Downlight 5-15W

AVA - Commercial MR16 Modular Downlight 5-15W


AVA MR16 Modular Downlight System

(The easiest way for halogen MR16(GU10) to modern LED!)

Elegant MR16 compatible design, Ava was born to be versatile. The perfect thermal management ensures the high wattage in the smaller housing. Aesthetic design is not the only advantage of Ava, it’s 90lm/w efficacy with uniform light distribution also worth a mention. Except the single color 2700K to 5000K range, Ava also offers 1800K-3000K dim-to-warm create a SDCM<3; color consistency home-like atmospere to where it is needed. It complies with the modular design, everything is changeable except COB, well covered the commercial and residential applications. The performance of Ava is the ice of the cake on the aesthetic appearance.





 AVA MR16 Modular Downlight System

Elegant and Functional Design

Elegant appearance with multifunction, Ava has defined itself as a strong and capable downlight. The delicated thermal management design ensures efficient heat convection, as a result Ava could realize high wattage in a smaller size.( 39mm height heatsink support Max.8W, 60mm height heatink support Max.15W). The low heightness also provide more possibilities for Ava fits into the low ceiling applications.


 AVA MR16 Modular Downlight System

Good Heat Disspation

AVA impresses customers with its modern style linecrossed heat sink design. Take another closer look,AVA downlight adopts this design to realize the free flow of heat that guranteed a good heat dissipation performance. So that AVA could provide both elegant and smaller size with big wattage, ensuring it not only has an aesthetic look but also a highly practical performance.


 AVA - Residential MR16 Modular Downlight 5-15W



5 Beam Angles

Available in 10°, 15°, 24°, 38° and 50° beam angles, Ava MR16 downlight allows enough flexibility for you to choose from accent lighting, flood lighting or general lighting no matter for small objects or big walls. Except the complete beam angles, it also provide 90lm/W efficacy with uniform light distribution to fill in every details of the space.


 AVA - Residential MR16 Modular Downlight 5-15W

Different Atmosphere

Except single color 2700K to 5000K range, Ava also uses Dim-to-warm from 1800K-3000K chips, full brightness 3000K to warmer in 1800K like a halogen. With the SDCM<3 chips presents the high color consistency and provide a warm and cozy home-style atmosphere.


 AVA - Residential MR16 Modular Downlight 5-15W

Anti-glare

In the glare free angle, there is no direct view of the LED and the visible part of the reflector produces practically no glare at all. 38 degree cut-off angle offers very high visual comfort.


 AVA - Residential MR16 Modular Downlight 5-15W

Anti-glare Accessories

Honeycomb filter and soft lens can be added to provide maximum visual comfort.


 AVA - Residential MR16 Modular Downlight 5-15W

Modular Design Luminaire

Ava’s LED engine is designed with modular concept, everything is changeable except COB, support free DIY on optical lens and accessories. You can easily get a brand new luminaire by a quick and simple snap on of the LED module + mounting ring without any tools. Humanized modular design ensures fast delivery and low stock mangement cost.


 AVA MR16 Modular Downlight System

Diverse Mounting Rings

With various mounting rings in different cut-outs& low glare leverl& tiltable, Ava would be a great fit no matter for commercial or residential applications to offer precise directional spotlights for brilliant effects. Ava also compatible with the MR16, convenient to replacing from the conventional MR16, GU10 to the modern LED.

Specs

-Ava50 module fits various custom mounting rings or any MR16 fittings for wide range of applications.


-Aesthetic in design, Small in size but high in wattage thanks to it’s efficient convection ventilation design heatsink.


-Uniform light distribution, light efficiency up to 90lm/W, 5 beam angles selectable(10, 15, 24, 36, 50D).


-Dim-to Warm 1800K-3000K and single color 2700K to 5000K range with SDCM<3 high color consistency.


-Ava50 Module, mounting rings, optics and accessories, all in modular design to help customer to reduce stock.


-Variable Mounting rings with different cut-outs & low glare level & tiltable for choice.


Application:Recessed luminaires
Light source:COB LED
Light solution: 10°,15°,24°,38°,50°
SDCM:<3
Watt:5W-15W
CCT:2700K,3000K,4000K,5000K
Luminous:133lm-1348lm
Control option:On/off,Triac,DALI,Phase dim
CRI:80+,90+
Module:
AM504,AM506,AM507
