AVA - Residential MR16 Modular Downlight 5-15W

video video

Products Specification:

Application: Recessed-mounted

SDCM: ＜3

Beam Angle: 15°, 24°, 36°, 50°

Power: 5W, 8W, 10W, 15W

Static White:2700K, 3000K, 4000K, 5000K

Dim To Warm:1800K-3000K

Line Drawing:

AVA - Residential MR16 Modular Downlight 5-15W

General Features:

Accessories

AVA - Commercial MR16 Modular Downlight 5-15W

AVA - Residential MR16 Modular Downlight 5-15W

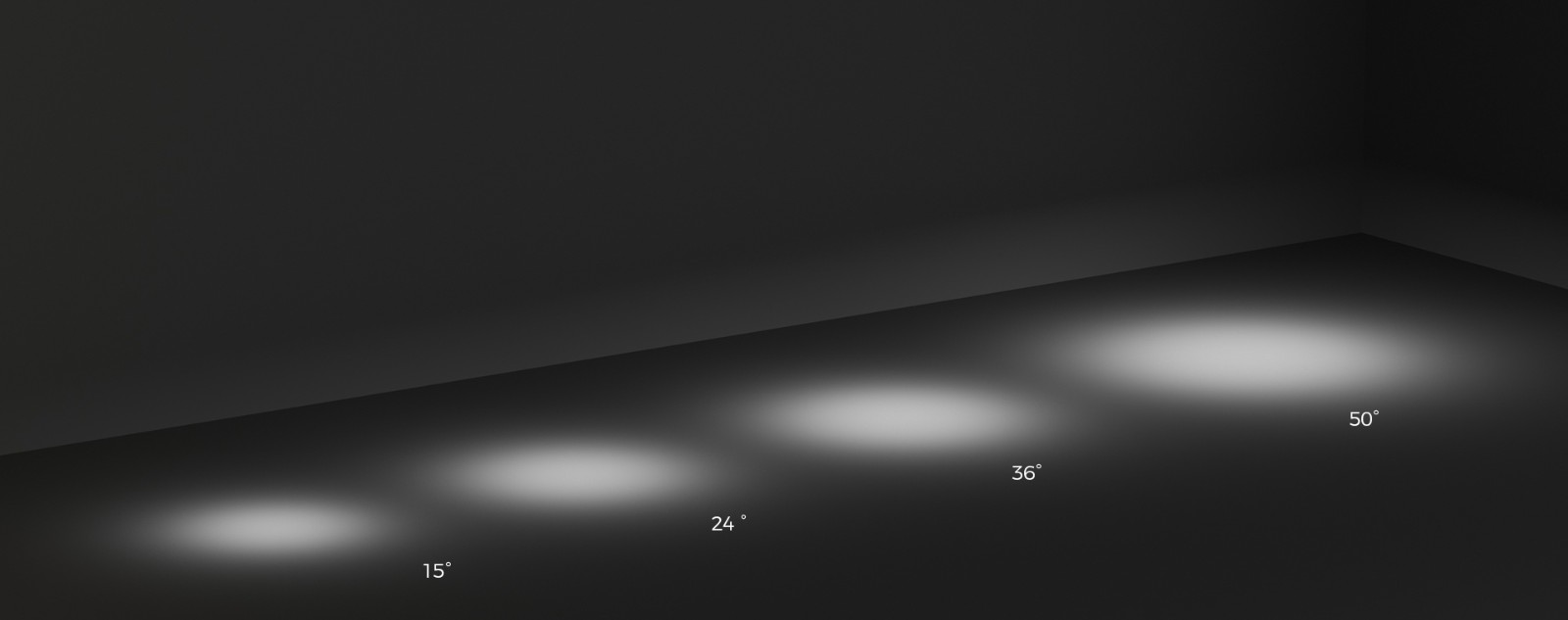

5 Beam Angles

Available in 15°, 24°, 36° and 50° beam angles, Ava MR16 downlight allows enough flexibility for you to choose from accent lighting, flood lighting or general lighting no matter for small objects or big walls. Except the complete beam angles, it also provide 90lm/W efficacy with uniform light distribution to fill in every details of the space.

AVA - Residential MR16 Modular Downlight 5-15W

Anti-glare

In the glare free angle, there is no direct view of the LED and the visible part of the reflector produces practically no glare at all. 38 degree cut-off angle offers very high visual comfort.

AVA - Residential MR16 Modular Downlight 5-15W

Anti-glare Accessories

Honeycomb filter and soft lens can be added to provide maximum visual comfort.

AVA - Residential MR16 Modular Downlight 5-15W

Modular Design Luminaire

Ava’s LED engine is designed with modular concept, everything is changeable except COB, support free DIY on optical lens and accessories. You can easily get a brand new luminaire by a quick and simple snap on of the LED module + mounting ring without any tools. Humanized modular design ensures fast delivery and low stock mangement cost.

AVA - Residential MR16 Modular Downlight 5-15W

Diverse Mounting Rings

With various mounting rings in different cut-outs& low glare leverl& tiltable, Ava would be a great fit no matter for commercial or residential applications to offer precise directional spotlights for brilliant effects.Ava also compatible with the MR16, convenient to replacing from the conventional MR16, GU10 to the modern LED.

AVA - Residential MR16 Modular Downlight 5-15W

Dim-to Warm

Dimmable luminaires can be operated using group dimmers,that makes them ideal for energy-efficient renovation of existing lighting installations which are equipped with this widely used dimmer technology.

-Ava50 module fits various custom mounting rings or any MR16 fittings for wide range of applications.

-Aesthetic in design, Small in size but high in wattage thanks to it’s efficient convection ventilation design heatsink.

-Uniform light distribution, light efficiency up to 90lm/W, 5 beam angles selectable(15, 24, 36, 50D).

-Dim-to Warm 1800K-3000K and single color 2700K to 5000K range with SDCM<3 high color consistency.

-Ava50 Module, mounting rings, optics and accessories, all in modular design to help customer to reduce stock.

-Variable Mounting rings with different cut-outs & low glare level & tiltable for choice.

Order info.	Power	Luminous Flux(lm)	Max Candela(cd)	CRI	CCT	Beam Angle (°）
AM504-AF21RA01	5W	363	2868	90+	3000K	15°
AM504-AF21RA01	5W	408	2474	90+	3000K	24°
AM504-AF21RA01	5W	345	758	90+	3000K	36°
AM504-AF21RA01	5W	294	363	90+	3000K	50°
AM507-AF21RA01	8W	693	4062	90+	3000K	15°
AM507-AF21RA01	8W	655	2932	90+	3000K	24°
AM507-AF21RA01	8W	579	1394	90+	3000K	36°
AM507-AF21RA01	8W	520	813	90+	3000K	50°

Order info.	Power	Luminous Flux(lm)	Max Candela(cd)	CRI	CCT	Beam Angle (°）
AM504-AF22RA01	8W	608	6302	90+	3000K	15°
AM504-AF22RA01	8W	664	4649	90+	3000K	24°
AM504-AF22RA01	8W	638	1789	90+	3000K	36°
AM504-AF22RA01	8W	639	1143	90+	3000K	50°
AM506-AF22RA01	10W	812	8793	90+	3000K	15°
AM506-AF22RA01	10W	898	6450	90+	3000K	24°
AM506-AF22RA01	10W	867	2444	90+	3000K	36°
AM506-AF22RA01	10W	860	1581	90+	3000K	50°
AM506-AF22RA01	15W	1085	11524	90+	3000K	15°
AM506-AF22RA01	15W	1182	8457	90+	3000K	24°
AM506-AF22RA01	15W	1139	3198	90+	3000K	36°
AM506-AF22RA01	15W	1132	2094	90+	3000K	50°

Image	Description	Model NO#	Available for
	Honeycomb	AM504-H	AM504
	Soft Lens	AM504-L	AM504
	Honeycomb	AM506-H	AM506
	Soft Lens	AM506-L	AM506

*Subscribe for new products.

YES

More About The AVA Family

Elegant MR16 compatible design, Ava was born to be versatile. The perfect thermal management ensures the high wattage in the smaller housing. Aesthetic design is not the only advantage of Ava, it’s 90lm/w efficacy with uniform light distribution also worth a mention. Except the single color 2700K to 5000K range, Ava also offers 1800K-3000K dim-to-warm create a SDCM<3； color consistency home-like atmospere to where it is needed. It complies with the modular design, everything is changeable except COB, well covered the commercial and residential applications. The performance of Ava is the ice of the cake on the aesthetic appearance.
