VEGA Track Light System

VEGA Track Light System

Products Specification:

Application: Track-mounted, Surface-mounted

SDCM: ≤2

Lighting Soultion: Standard/Premium/Reflector/Zoomable/Projection

Power: 8W, 10W, 15W, 20W, 25W, 30W

CCT: 2700K, 3000K, 3500K, 4000K

Line Drawing:

VEGA Track Light System

General Features:

ALINE Track Light 10-15W

VEGA Track Light 10W

VEGA Track Light 10W

Accessories

VEGA Track Light System

VEGA Track Light System

VEGA Track Light System

VEGA Track Light System

Frame Color




VEGA Track Light System

VEGA is a comprehensive family of architectural spotlights for retail, museums, galleries and hospitality. Four complementary optical solutions—Standard, Reflector, Zoomable and Projector—address different lighting tasks, from highlighting materials and objects to adjusting beam coverage, precisely framing artwork and projecting graphics. High-voltage track, 48V magnetic track, surface and recessed mounting options adapt the family to different ceiling conditions and interior concepts.

By bringing diverse optical capabilities and mounting options together in one family, VEGA provides a coordinated solution for multiple lighting requirements within a single project. Consistent cylindrical forms maintain visual continuity across rooms and functional zones, giving designers the freedom to vary the lighting effect while preserving a unified architectural expression.



 VEGA Track Light System

Full Light Solutions

Numerous beam pattern from narrow, flood to zoomable, projection and customized options.


 VEGA Track Light System



Optical Accessories

Wide range of optical accessories available for versatile use.


 VEGA Track Light System


Slim&Clean Design

Finely engineered mechanism for premium look and better user experience.


 VEGA Track Light System

VEGA-Standard

Wattage: 8W / 15W / 20W / 30W

Luminous Efficiency: Up to 100 lm/W

Beam Angle: 15° / 24° / 38° / 50°


VEGA-Premium

Wattage: 10W / 20W / 30W

Luminous Efficiency: Up to 125 lm/W

Beam Angle: 24° / 30° / 40° / 52°


 VEGA Track Light System




VEGA-Reflector

Wattage: 15W / 20W / 25W / 30W

Beam Angle: 22°, 26°, 40°, 50°(20W)

22°, 28°, 38°, 60°(30W)


 VEGA Track Light System




VEGA-Zoomable

Wattage: 10W / 20W / 30W

Beam Angle: 10°-60°(10W) / 20°-60°(20W)

11°-52°(20W) / 22°-57°(30W)


 VEGA Track Light System

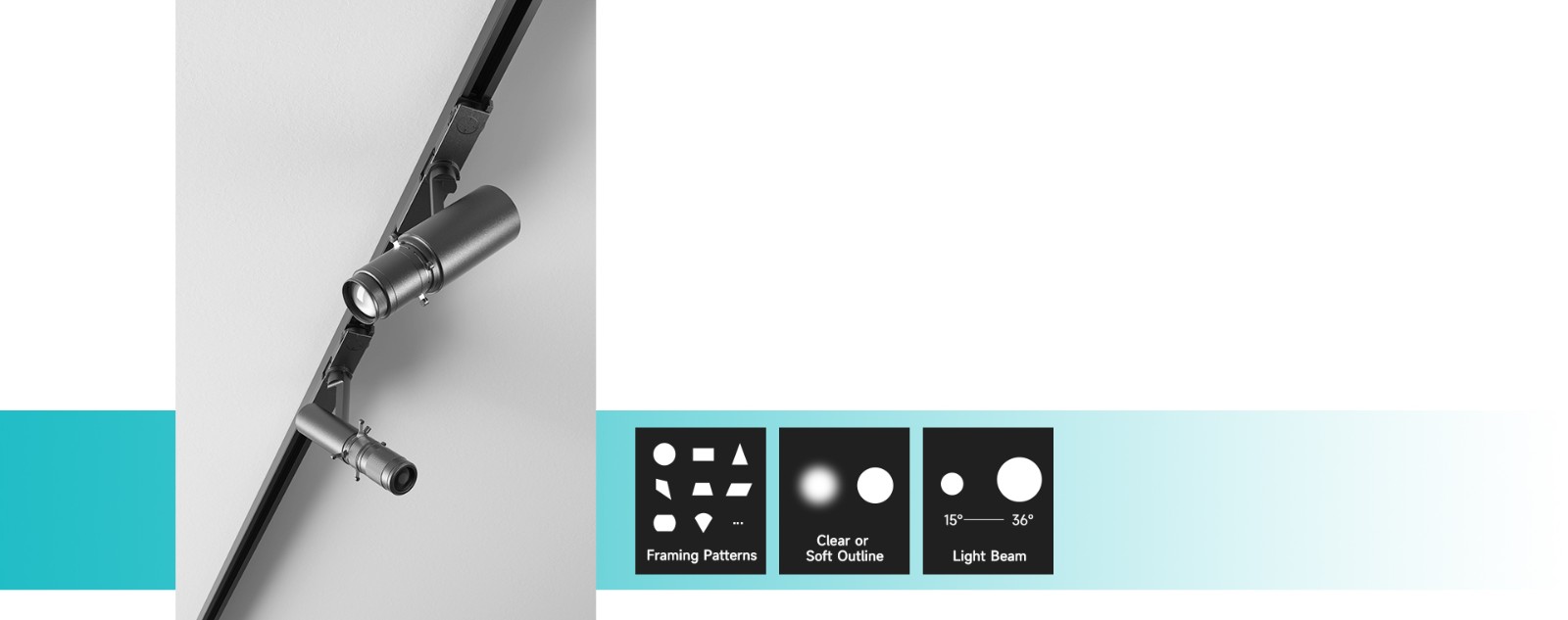

VEGA-Projector

Wattage: 10W / 20W

Beam Angle: 15°-36°(10W) / 55°(20W)

Specs

-Slim and sleek aesthetic design without screw.


-360+° rotatable, 90° tiltable.


-High power in compact size (Ultra mini size 1.5"/40mm dia.)


-Tunable white 2800-6000K optional.


-In-track driver for flexible dimming: triac, dali, wireless control.


-Wide range of Interchangeable accessories: honey-comb, soft, oval filter etc.


-Flexible mounting options: Track-mounted, Surface-mounted, Recessed


Order info.PowerEfficacy(lm/W)Luminous
Flux(lm)
CRICCTBeam Angle
(°)
TVS08S-118W64579lm90+3000K24°
TVM20S-1120W851699lm90+3000K24°
TVL30S-1130W982912lm90+3000K24°
TVS10P-1110W87822lm90+3000K30°
TVM20P-1120W1142405lm90+3000K30°
TVL30P-1130W1253827lm90+3000K30°
TVM10S-2110W64655-687lm90+4000K10°-60°
TVM20S-2120W711374-1510lm90+3000K20°-60°
TVL20S-2120W551066-1158lm90+3000K11°-52°
TVL30S-2130W822242-2387lm90+3000K22°-27°
TVS10S-3110W33263-360lm90+3000K15°-36°
TVM20S-3120W27533lm90+3000K50°



ImageDescriptionModel NO#Available for

DELLA Mini Downlight 5W-8W

HoneycombTVS-H / TVM-H / TVL-HStandard/Zoomable

VEGA Track Light System

Oval LensTVS-OV / TVM-OV / TVL-OVStandard/Zoomable

VEGA Track Light System

Polarized LensTVS-PL / TVM-PL / TVL-PLStandard

DELLA Mini Downlight 5W-8W

Soft LensTVS-SL / TVM-SL / TVL-SLStandard

VEGA Track Light System

LogoTVM-LProjector

VEGA Track Light System

Color FilterTVM-CFProjector
