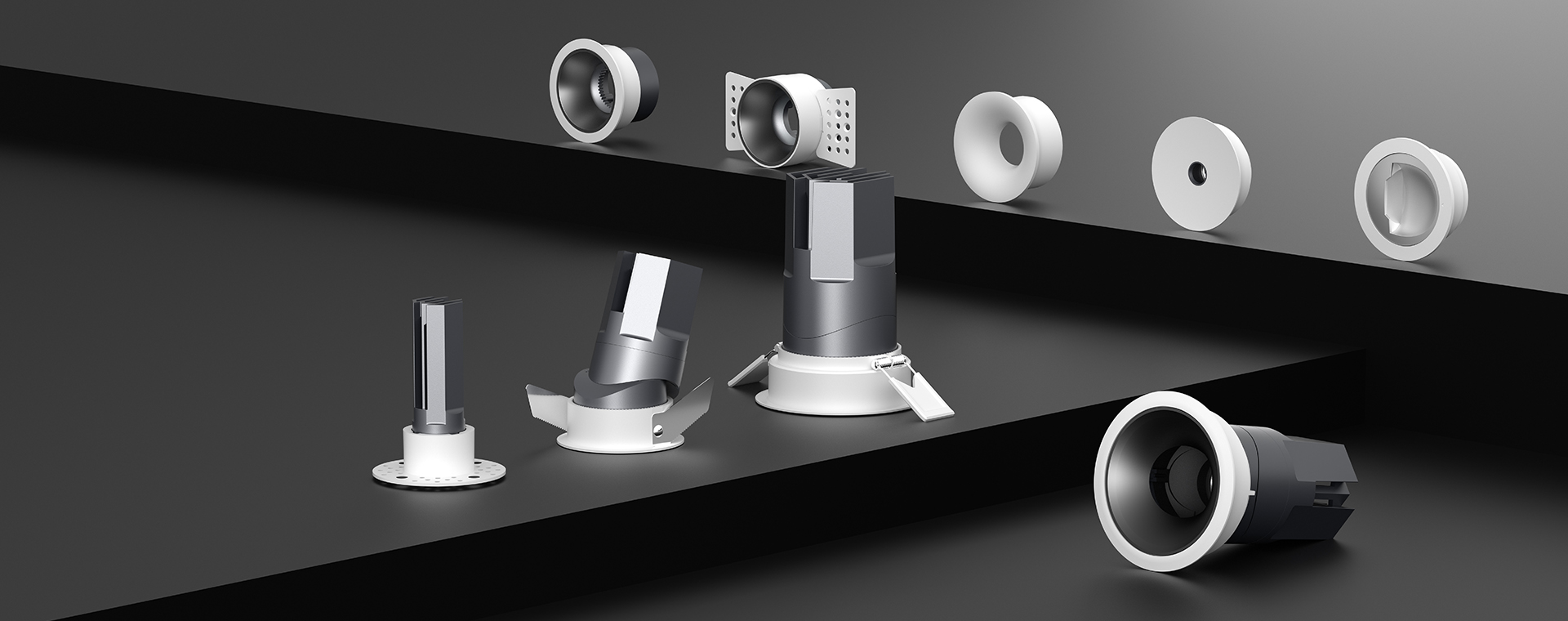

DELLA Mini Downlight System

Products Specification:

Application: Recessed-mounted

SDCM: ≤3

Beam Angle: 15°, 24°, 28°, 33°, 36°, 42°, 45°, 50°

Power: 5W, 8W, 10W, 15W

CCT: 2700K, 3000K, 3500K, 4000K, 1800K-3000K, 1800K-4000K, 2700K-6000K, RGBW

Line Drawing:

DELLA Mini Downlight System

General Features:

DELLA Mini Downlight System

Accessories

DELLA Mini Downlight System

Secondary Reflector

DELLA Mini Downlight System

Beam Options

Available in Narrow Spot (15°) , Spot ( 24°、28°、33°、36°) , Flood ( 42°、45°、50°）beam angles, DELLA downlight allows enough flexibility for you to choose from accent lighting, flood lighting or general lighting no matter for small objects or big walls.

DELLA Mini Downlight System

Pinhole Optics

A small aperture with deeply concealed light. DELLA’s pinhole optics direct the beam through a discreet opening, limiting direct views of the light source and delivering exceptional visual comfort. Selected pinhole configurations achieve UGR < 6.

DELLA Mini Downlight System

Anti-glare

A deeply recessed light source and generous shielding angle reduce direct glare. DELLA brings focused illumination to the space while keeping the ceiling visually quiet and comfortable from normal viewing positions.

DELLA Downlight 8W-10W

Tilt The Light, Keep The Full Beam

The SHIFT-AXIS mechanism shifts the light module as it tilts, allowing the full beam to pass through without being blocked by the frame. Aim freely without losing light output.

DELLA Mini Downlight System

No Light Leakage-Even at Maximum Tilt

The enclosed design prevents light from escaping through gaps, keeping the ceiling clean and free from distracting light leaks.

DELLA Mini Downlight System

Precise, Secure Aiming

The light is precisly tiltable with scale and lock point.

DELLA Downlight 8W-10W

Foldable Pull Ring

The integrated pull ring folds out for easy removal of the LED engine, simplifying access for servicing.

DELLA Mini Downlight System

Super Modular Design

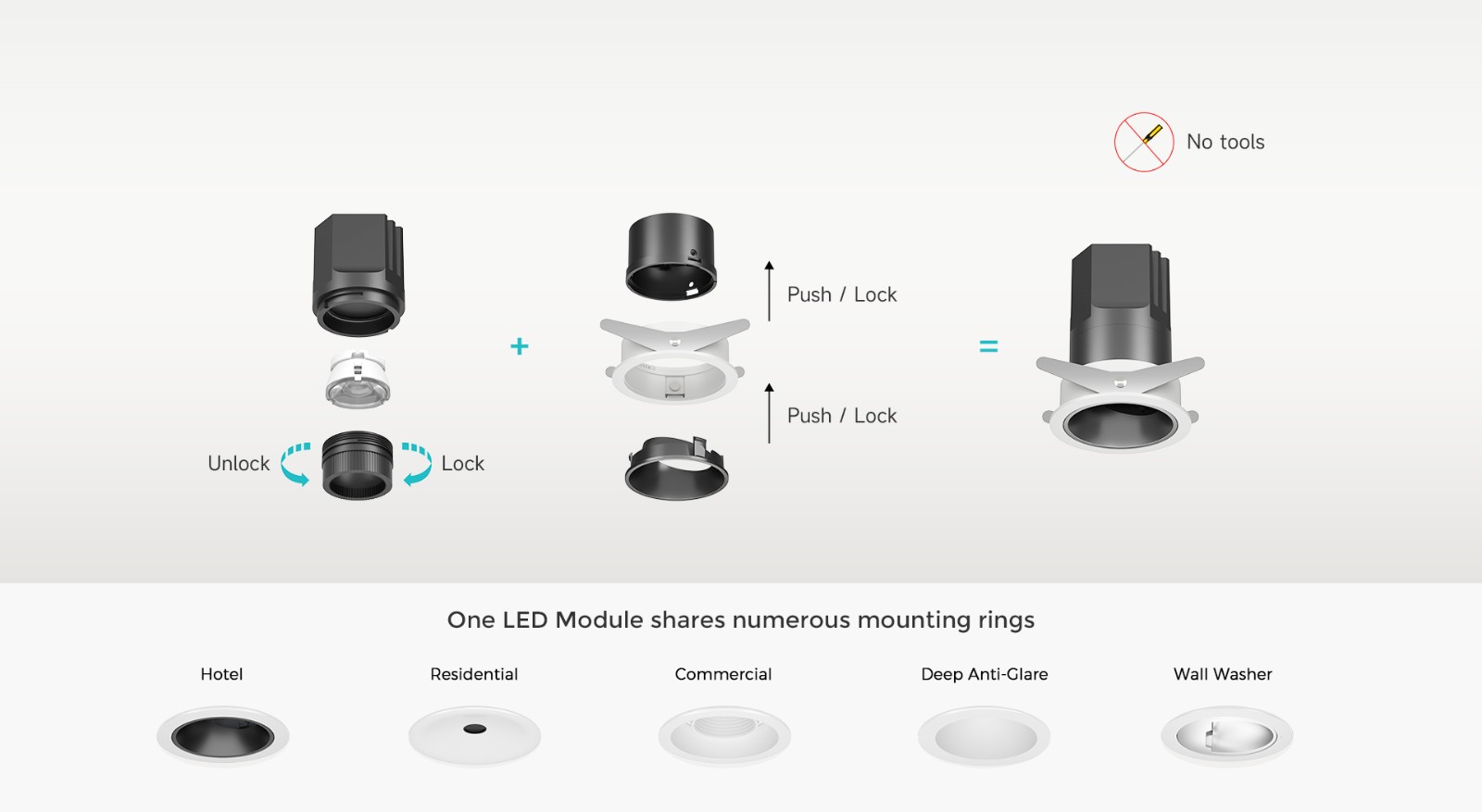

DELLA’s LED engine adopts a fully modular design. Every parts is interchangeable except COB, support free DIY on optical lens and accessories. You can easily get a brand new luminaire by a quick and simple snap on of the LED module + mounting ring without any tools.

This user-centric modularity also ensures fast lead times and low inventory management costs.

- Innovative SHIFT-AXIS design, precise tilt adjustment from 5°-20°, ensures internal darkness and zero light loss even at maximum beam offset.

- Precise adjustment with clear tactile and audible feedback.

- Locking design maintains the selected aiming position over time.

- 50° cut-off angle ensures superior visual comfort and glare-free illumination.

- Tool-Free Modular design, the modules can be replaced below the ceiling, simplifying installation, maintenance, and future upgrades.

- True IP65-rated for the entire fixture, suitable for humid environments such as bathrooms and semi-outdoor corridors.

- Modular structure for easier and cost effective SKU management.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
DM030-DF31RF01N	5W	12V*350mA	318 lm	90+	3000K	24°
DM030-DF31RF01N	8W	12V*500mA	407 lm	90+	3000K	24°
DM050-DF51RA01N	8W	36V*200mA	545 lm	90+	3000K	28°
DM050-DF51RA01N	10W	36V*250mA	686 lm	90+	3000K	28°
DM060-DF61RA01N	10W	36V*250mA	727 lm	90+	3000K	24°
DM060-DF61RA01N	15W	36V*350mA	968 lm	90+	3000K	24°
DM050-DF55RF01N	10W	36V*250mA	565 lm	90+	3000K	Wallwashing
DM060-DF65RF01N	15W	36V*350mA	677 lm	90+	3000K	Wallwashing

Image	Description	Model NO#	Available for
	Honeycomb	DM030-H/DM050-H/DM060-H	DM030/DM050/DM060
	Soft filter	DM030-SL/DM050-SL/DM060-SL	DM030/DM050/DM060
