Commercial MR16 Modular LED Downlight, 5–15W

AVA - Commercial MR16 Modular Downlight 5-15W

video video

Products Specification:

Application: Recessed-mounted

SDCM: ＜3

Beam Angle: 15°, 24°, 36°, 50°

Power: 5W, 8W, 10W, 15W

Static White: 2700K, 3000K, 4000K, 5000K

Dim To Warm: 1800K-3000K

Line Drawing:

AVA - Commercial MR16 Modular Downlight 5-15W

General Features:

Accessories

AVA - Commercial MR16 Modular Downlight 5-15W

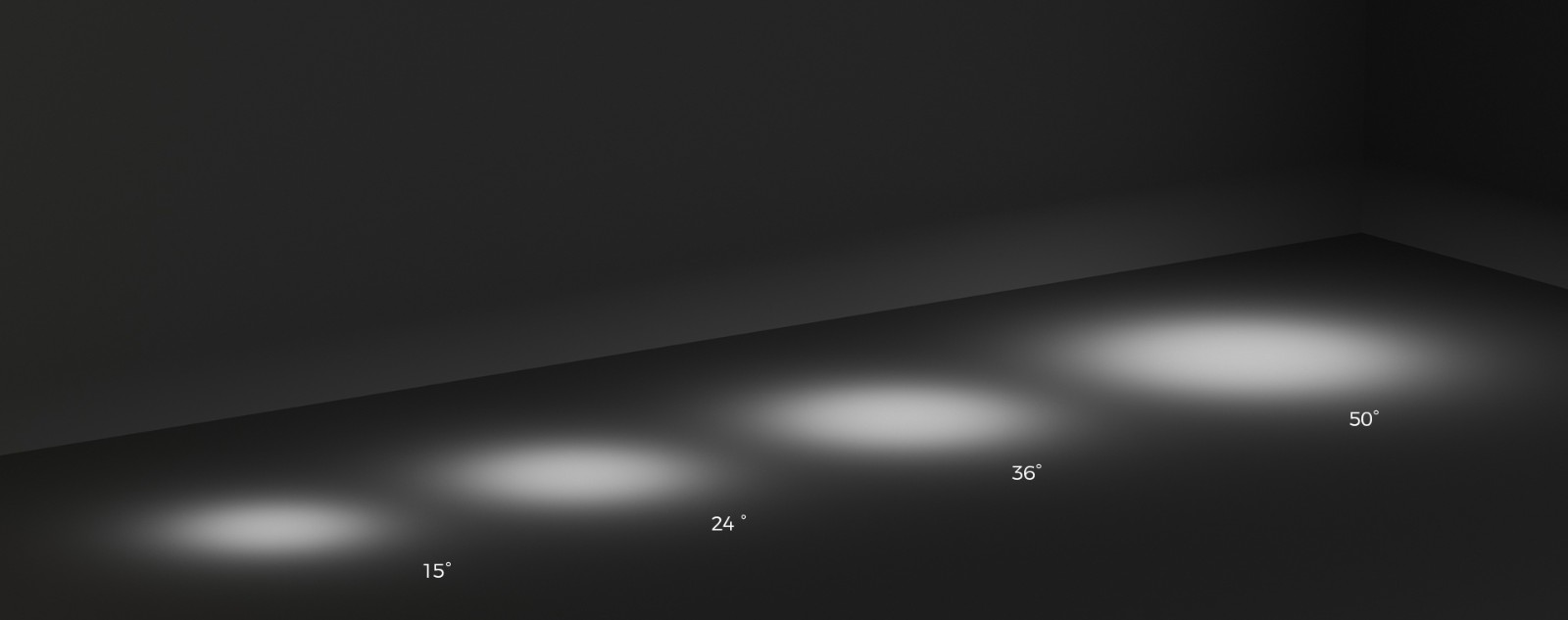

5 Beam Angles

Available in 15°, 24°, 36° and 50° beam angles, Ava MR16 downlight allows enough flexibility for you to choose from accent lighting, flood lighting or general lighting no matter for small objects or big walls. Except the complete beam angles, it also provide 90lm/W efficacy with uniform light distribution to fill in every details of the space.

AVA - Residential MR16 Modular Downlight 5-15W

Anti-glare

In the glare free angle, there is no direct view of the LED and the visible part of the reflector produces practically no glare at all. 38 degree cut-off angle offers very high visual comfort.

AVA - Residential MR16 Modular Downlight 5-15W

Anti-glare Accessories

Honeycomb filter and soft lens can be added to provide maximum visual comfort.

AVA - Residential MR16 Modular Downlight 5-15W

Modular Design Luminaire

Ava’s LED engine is designed with modular concept, everything is changeable except COB, support free DIY on optical lens and accessories. You can easily get a brand new luminaire by a quick and simple snap on of the LED module + mounting ring without any tools. Humanized modular design ensures fast delivery and low stock mangement cost.

AVA - Commercial MR16 Modular Downlight 5-15W

20° Tiltable At Any Direction

In comparison to general tilt downlights that are only able to tilt in the same fixed direction, AVA Commercial is not only equipped with 20° tile angle, but also 360° tilt direction, allowing the quality light to be shone on every spot without limit.

AVA - Commercial MR16 Modular Downlight 5-15W

Diverse Mounting Rings

With various mounting rings in different cut-outs& low glare leverl& tiltable, Ava would be a great fit no matter for commercial or residential applications to offer precise directional spotlights for brilliant effects.Ava also compatible with the MR16, convenient to replacing from the conventional MR16, GU10 to the modern LED.

AVA - Residential MR16 Modular Downlight 5-15W

Dim-to Warm

Dimmable luminaires can be operated using group dimmers,that makes them ideal for energy-efficient renovation of existing lighting installations which are equipped with this widely used dimmer technology.

-Ava50 module fits various custom mounting rings or any MR16 fittings for wide range of applications.

-Aesthetic in design, Small in size but high in wattage thanks to it’s efficient convection ventilation design heatsink.

-Uniform light distribution, light efficiency up to 90lm/W, 5 beam angles selectable(15, 24, 36, 50D).

-Dim-to Warm 1800K-3000K and single color 2700K to 5000K range with SDCM<3 high color consistency.

-Ava50 Module, mounting rings, optics and accessories, all in modular design to help customer to reduce stock.

-Variable Mounting rings with different cut-outs & low glare level & tiltable for choice.

Order info.	Power	Luminous Flux(lm)	Max Candela(cd)	CRI	CCT	Beam Angle (°）
AM504-AF31RA01	5W	398	3006	90+	3000K	15°
AM504-AF31RA01	5W	423	2501	90+	3000K	24°
AM504-AF31RA01	5W	378	749	90+	3000K	36°
AM504-AF31RA01	5W	293	361	90+	3000K	50°
AM504-AF31RA01	8W	574	4341	90+	3000K	15°
AM504-AF31RA01	8W	615	3642	90+	3000K	24°
AM504-AF31RA01	8W	553	1099	90+	3000K	36°
AM504-AF31RA01	8W	426	525	90+	3000K	50°
AM506-AF31RA01	10W	905	5063	90+	3000K	15°
AM506-AF31RA01	10W	1026	4818	90+	3000K	24°
AM506-AF31RA01	10W	992	2612	90+	3000K	36°
AM506-AF31RA01	10W	675	837	90+	3000K	50°
AM506-AF31RA01	15W	1182	6621	90+	3000K	15°
AM506-AF31RA01	15W	1356	6354	90+	3000K	24°
AM506-AF31RA01	15W	1308	3443	90+	3000K	36°
AM506-AF31RA01	15W	895	1111	90+	3000K	50°

Image	Description	Model NO#	Available for
	Honeycomb	AM504-H	AM504
	Soft Lens	AM504-L	AM504
	Honeycomb	AM506-H	AM506
	Soft Lens	AM506-L	AM506

*Subscribe for new products.

YES

More About The AVA Family

Elegant MR16 compatible design, Ava was born to be versatile. The perfect thermal management ensures the high wattage in the smaller housing. Aesthetic design is not the only advantage of Ava, it’s 90lm/w efficacy with uniform light distribution also worth a mention. Except the single color 2700K to 5000K range, Ava also offers 1800K-3000K dim-to-warm create a SDCM<3； color consistency home-like atmospere to where it is needed. It complies with the modular design, everything is changeable except COB, well covered the commercial and residential applications. The performance of Ava is the ice of the cake on the aesthetic appearance.
