Galaxy Downlight 30W-35W

video video

Products Specification:

Application: Recessed-mounted

SDCM: ≤3

Beam Angle: 24°, 38°, 50°

Power: 30W, 35W

Static White: 2700K, 3000K, 4000K, 5000K

Tunable White: 2700K-6500K

Full Spectrum: RGBW

Line Drawing:

Galaxy Downlight 30W-35W

General Features:

Galaxy Downlight 30W-35W

Secondary Reflector

Frame Color

Galaxy Downlight

Galaxy is designed to be well adapt to high ceiling applications thanks to it's super high efficient thermal management and high light efficiency 100lm/w.

Except for classic white color, Galaxy also support tunable white and CCT selectable with unparalleled quality light distribution, plus low glare UGR<16 design, Galaxy downlight delivers high-end, architectural-grade illumination precisely where you need it.

Its tool-free, field-changeable reflector allow you to easily change how your spaces feel and perform with minimal labor.

Galaxy Downlight 30W-35W

General Lighting & Accent Lighting

Available in 24°, 38°, 50°, Galaxy can create more powerful and dramatic beam strengths with precise optics, thanks to it's super high efficient thermal management and high light efficiency 110lm/w.

Galaxy Downlight 20W-25W

UGR＜16, anti glare cob downlight

Galaxy led downlight was developed with the specifications of good glare control and high visual comfort with UGR＜16.

Galaxy Downlight 30W-35W

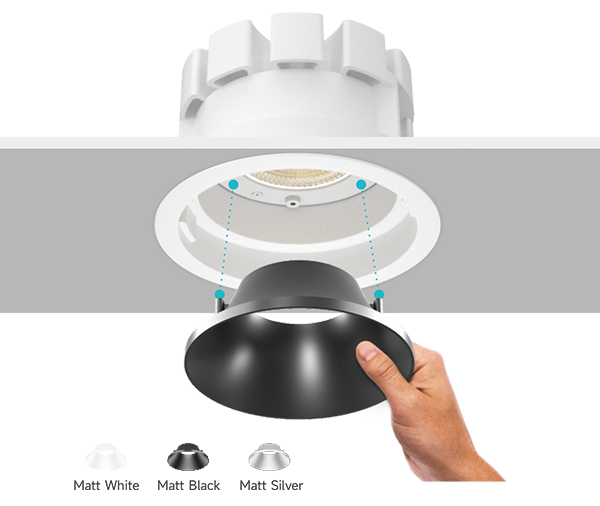

Magnetic Reflector

Installations (tool-free)

The magnetic design allow reflector to be swapped without positioning or any tool, allowing you to easily change how your spaces feel and perform with minimal labor. Multiple reflector colors to fit versatile design needs.

Galaxy Downlight 20W-25W

Excellent Thermal Management

Die-cast aluminum housing with smart ventilation design provides efficient heat transfer and proprietary thermal management system.

Galaxy Downlight 40W-45W

IP65 Waterproof

Galaxy with an extremely high IP rating IP54 are particularly suitable for the transitional areas between indoors and outdoors. In indoor areas where protection against moisture or dust is required, they ensure high-quality lighting even in harsh conditions.

Galaxy Downlight 40W-45W

High Ceiling Applications

With light output reaching 4,500 delivered lumens, Galaxy put long lasting, energy efficient, mercury-free high celling LED lighting options in play for shopping mall, airports, atriums, ballrooms, lobbies, and other spaces that require maximum lumen output.

Specs

Features
Specsheet
Accessories

-5 inch max 35W

-High lumen efficiency of 100lm/W

-Tunable white allow more flexible light adjustment to match the mood

-Low glare UGR<16 for visual comfort

-Magnetic reflector design enable tool-free replacement without trouble in positioning

Order info.	Power	Luminous Flux(lm)	Max Candela(cd)	CRI	CCT	Beam Angle (°）
GR125-24D	30W	2644	10836	90+	3000K	24°
GR125-38D	30W	2729	6988	90+	3000K	38°
GR125-50D	30W	2679	3683	90+	3000K	50°
GR125-24D	35W	3021	12378	90+	3000K	24°
GR125-38D	35W	3151	8106	90+	3000K	38°
GR125-50D	35W	3075	4218	90+	3000K	50°

None

How can we support you?

Galaxy Downlight System

Galaxy ceiling light is a family series consist of 3 sizes (4in, 5in, 6in) that gives wattage from 20W to 50W, fit perfectly Intospaces with cillng from 5m to 12m. And comes with 3 mounting styles: recessed, surface-mount and pendant to be versatile enough for different needs, whilst keep uniform impression for the space.
