Ultra-Narrow LED Linear Light: 26mm, 110 lm/W

English

Home / Products / Linear Light / ATRO Ultra-Slim Linear

Overview Specs

ATRO Ultra-Slim Linear

Products Specification:

Installation: Pendant

Length: 960mm, 1200mm, 1800mm

Optics lens: PC Diffuser(100°) / Grille(20°, 40°, 60°, 20°x20°)

Lighting Types: Downlight

Power: 25W, 30W, 50W

Static White: 2700K, 3000K, 3500K, 4000K, 5000K

Tunable White: 3000K-6000K

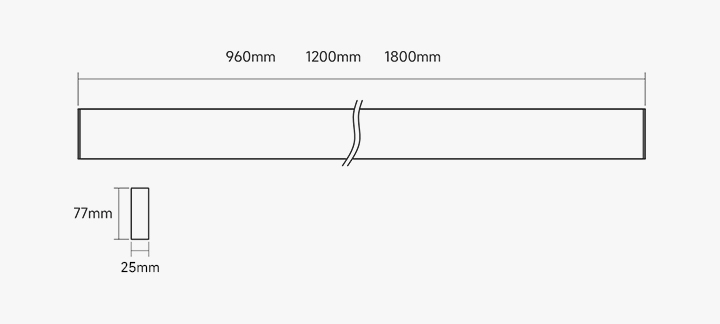

Line Drawing:

ATRO Ultra-Slim Linear

General Features:

ARC 2.75" Linear Light System

ATRO 26mm Linear Light System

SLEM 45mm Linear Light System

Frame Color

ARC 2.75" Linear Light System

ATRO Ultra-Slim Linear

SLENDER FORM. PRECISE LIGHT.

With a body just 25 mm wide, ATRO Ultra-Slim Linear brings controlled, comfortable illumination into a slender architectural form. Its precision lenses direct light where it is needed, while a uniformly illuminated lens surface softens the appearance of the light source.

Available for suspended or surface-mounted installation, individual luminaires can stand alone or connect into continuous linear runs. Static White and Tunable White options adapt the atmosphere to different uses, making ATRO a refined choice for offices, premium retail and high-end residential interiors.

ATRO Ultra-Slim Linear

Precise Control, Exceptional Comfort

Advanced light cone correction optics distribute brightness evenly across the lens surface, reducing harsh hotspots while maintaining precise beam control. The result is a softer appearance to the eye, even when the lenses are visible.

An optional louvre provides additional glare control for greater visual comfort.

ATRO Ultra-Slim Linear

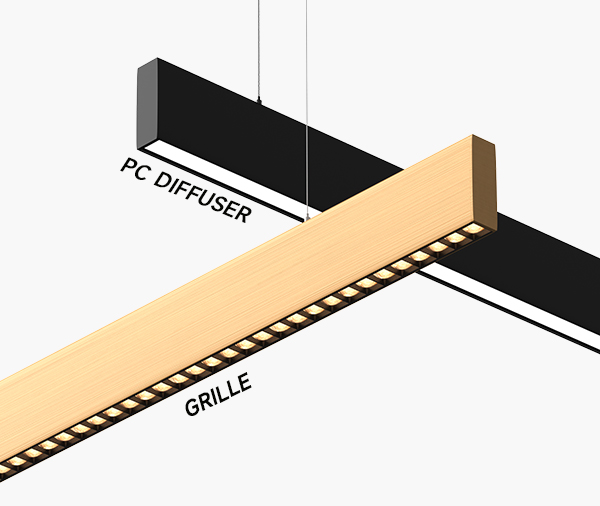

Versatile Optic Cover

Available in different optic covers to accommodate versatile lighting needs for different spaces.

Specs

Features
Specsheet
Accessories

- 25 mm slim profile: Minimal visual presence with a refined linear form.

- Low-glare optics: Uniform lens brightness reduces harsh visual hotspots.

- Precise beam control: 20°, 40°, 60° and 80° options for different lighting needs.

- Flexible installation: Suspended or surface-mounted, standalone or continuous runs.

- Static White or Tunable White: Effective optical mixing for uniform light colour.

- Coordinated lighting: Shared optics and LED specification with ATRO track lights and downlights.

Order info.	Power	Efficacy(lm/W)	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
AT26D (PC Diffuser)	30W	80	2065lm	80+	3000K	100°
AT26D (Grill Cover)	30W	113	3692lm	80+	3000K	20°
AT26D (Grill Cover)	30W	113	3699lm	80+	3000K	40°
AT26D (Grill Cover)	30W	110	3552lm	80+	3000K	60°
AT26D (Grill Cover)	30W	115	3720lm	80+	3000K	20°x20°
