Home / Products / Recessed Luminaires / ELLA-Hotel Square Adjustable 10W-35W
Overview Specs

ELLA-Hotel Square Adjustable 10W-35W

ELLA-Hotel Square Adjustable 10W-35W

Products Specification:

Application: Recessed-mounted, Pendant

SDCM: <3

Beam Angle: 15°, 24°, 38°, 55°

Power: 10W, 15W, 20W, 25W, 30W, 35W

CCT: 2700K, 3000K, 4000K

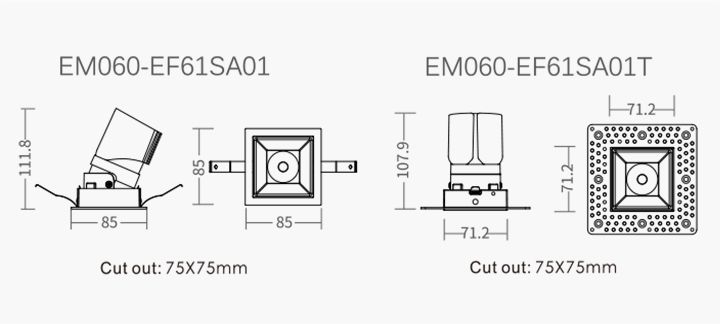

Line Drawing:

ELLA-Hotel Square Adjustable 10W-35W

General Features:


AVA - Commercial MR16 Modular Downlight 5-15W

AVA - Commercial MR16 Modular Downlight 5-15W

Secondary Reflector


(Square Adjustable Version)

ELLA-Hotel downlight fixtures offer an all-time exceptional performance with an exceptional wide range of options covering 4 sizes, 8 wattages, adjustable/fixed & trim/trimless mounting ring,  round & square shape, single & multiple luminaire combo, 3 reflector colors as well as 2 accessories. All of these versatile packages are realized in the unified classic and aesthetically designed appearance with exceptional light quality.

 ELLA-Hotel Square Adjustable 5W-35W

Atmosphere-boosting Lights

Light is not just a brightness that lets you see things, it sets a mood and creates atmosphere. ELLA Hotel series offers 4 kinds of quality lights-oblique, direct, elliptical, and small round-to set different moods and create different atmospheres. Each of the four options will bring you a unique atmosphere lighted up in a precisely controlled lighting effect.

 ELLA-Hotel Round Adjustable 5W-35W

4 Beam Angles

Available in 15°, 24° , 38° and 55° beam angles, ELLA LED recessed downlight allows enough flexibility for you to choose from narrow beam on small objects requiring accent lighting to flood light on walls lacking general brightness. But no matter which angle is needed and where it is needed, one thing that remains the same is ELLA's high-level light quality and evenly blended light edge.

 ELLA-Hotel Square Adjustable 5W-35W

Above-average Anti-glare

ELLA's thoughtful design enlarges the cut-off angle to be 38°, which helps every user easily get rid of the annoying and damaging glare issue. Therefore, on one hand, ELLA brings a very high level of visual comfort, and on the other hand, it also realizes healthy lighting need, which is crucial especially for families with newborns, school-age children, and family members staring at screens a lot.

 ELLA-Hotel Square Adjustable 5W-35W

Anti-glare Accessories

In order to push the anti-glare effect further to a new level, ELLA is designed to be compatible with either honeycomb or soft lens, so that UGR could be minimized.

ELLA cares about every user's eye health very much.

 ELLA-Hotel Square Adjustable 5W-35W

Super Modular Luminaire

ELLA Hotel series has made itself super modular from inside out. You can easily make a brand new luminaire by a quick and simple twist of the LED module + mounting ring combos: round & square, trim & trimless, fixed & adjustable. All these infinite possibilities will make the luminaire fit right into any commercial, residential, and especially hospitality settings. Therefore, no matter the demanding customer is expecting an LED recessed downlight solution for his hotel, store, restaurant, high-end bathroom, or the sweet home, you can always say yes.

 ELLA-Hotel Round Adjustable 5W-35W

Ultra Easy Installation

ELLA's super modular design helps you wave farewell to the cost- and time-consuming installation work, and ring in the pleasant easy installation. With no tool needed at all, ELLA can be installed and taken out in seconds.

No more annoying dangling downlight fixtures, no more waiting for the electrician, and no more scratching on the fresh-paint ceiling.


-Elegant & compact in its style, versatile in its using.

-Precise light control, 15°, 24°, 38°, 55° beam lens options.

-Interchangeable different color secondary reflectors for aniti-glare and decorative purpose.

-Super modular design enables no-tool installation/replacement of LED module, mounting ring, beam lens, honeycomb filter, and secondary reflector.

-355° rotation and 30° tilt.

-Anti-glare accessories provide maximum visual comfort.

-IP20 is standard, IP44 is optional.

Order info.PowerLed CurrentLuminous
CRICCTBeam Angle
EM060-EF61SA01-15D10W250mA621 lm90+2700K15°
EM060-EF61SA01-24D10W250mA666 lm90+2700K24°
EM060-EF61SA01-38D10W250mA698 lm90+2700K38°
EM060-EF61SA01-55D10W250mA589 lm90+2700K55°
EM060-EF61SA01-15D15W350mA866 lm90+2700K15°
EM060-EF61SA01-24D15W350mA935 lm90+2700K24°
EM060-EF61SA01-38D15W350mA983 lm90+2700K38°
EM060-EF61SA01-55D15W350mA816 lm90+2700K55°
EM070-EF71SA01-15D20W500mA1435 lm90+2700K15°
EM070-EF71SA01-24D20W500mA1622 lm90+2700K24°
EM070-EF71SA01-38D20W500mA1949 lm90+2700K38°
EM070-EF71SA01-55D20W500mA1692 lm90+2700K55°
EM070-EF71SA01-15D25W600mA1548 lm90+2700K15°
EM070-EF71SA01-24D25W600mA1751 lm90+2700K24°
EM070-EF71SA01-38D25W600mA1713 lm90+2700K38°
EM070-EF71SA01-55D25W600mA1692 lm90+2700K55°
EM090-EF91SA01-15D30W700mA2033 lm90+2700K15°
EM090-EF91SA01-24D30W700mA2152 lm90+2700K24°
EM090-EF91SA01-38D30W700mA1991 lm90+2700K38°
EM090-EF91SA01-55D30W700mA2043 lm90+2700K55°
EM090-EF91SA01-15D35W700mA2432 lm90+2700K15°
EM090-EF91SA01-24D35W700mA2568 lm90+2700K24°
EM090-EF91SA01-38D35W700mA2385 lm90+2700K38°
EM090-EF91SA01-55D35W700mA2462 lm90+2700K55°

ImageDescriptionModel NO#Available for
Ella-HotelHoneycomb FilterEM060-HEM060
Ella-HotelBeam Soft LensEM060-LEM060
Ella-HotelHoneycomb FilterEM070-HEM070
Ella-HotelBeam Soft LensEM070-LEM070
Ella-HotelHoneycomb FilterEM090-HEM090


Model Power Picture Download
EM050 7w Ella hotel 7W EM050 LED Module + Mounting Ring Download
Model Power Picture Download
EM050 7w Ella hotel 7W EM050 LED Module + Mounting Ring Download
Model Power Picture Download
EM050 7w Ella hotel 7W EM050 LED Module + Mounting Ring IESLDT
EM060 9W Ella hotel 9W EM060 LED Module + Mounting Ring IESLDT
EM070 25W Ella hotel 25W EM070 LED Module + Mounting Ring IESLDT
EM090 30W Ella hotel 30W EM090 LED Module + Mounting Ring IESLDT
EM090 35W Ella hotel 35W EM090 LED Module + Mounting Ring IESLDT

How can we support you?

*Subscribe for new products & discount.



More About The ELLA Family

As the latest generation of ENCORE downlight system, ELLA has not only kept the aesthetic design, precise light control and great UGR, but also has upgraded the versatility to a new level with the super modular design in a compact format. ELLA's LED module matches with numerous mounting rings within the system, offering a wide range of options particularly for hospitality, residential, and any indoor commercial setting. On top of mounting rings, ELLA also provides many possibilities in shape, round or square; adjustment, fixed or adjustable; size and wattages.
