ELLA Downlight System

ELLA Downlight System

Products Specification:

Application: Recessed-mounted, Pendant

SDCM: <3

Beam Angle: 15°, 24°, 38°, 55°

Power: 5W, 8W, 10W, 15W, 20W, 25W, 30W, 35W

CCT: 2700K, 3000K, 4000K

Line Drawing:

ELLA Downlight System

General Features:

Accessories

AVA - Commercial MR16 Modular Downlight 5-15W

AVA - Commercial MR16 Modular Downlight 5-15W

Secondary Reflector




ELLA Downlight System

Super Modular Design Brings Infinite Possibilities!

As the latest generation of ENCORE downlight system, ELLA has not only kept the aesthetic design, precise light control and great UGR, but also has upgraded the versatility to a new level with the super modular design in a compact format. ELLA's LED module matches with numerous mounting rings within the system, offering a wide range of options particularly for hospitality, residential, and any indoor commercial setting. On top of mounting rings, ELLA also provides many possibilities in shape, round or square; adjustment, fixed or adjustable; size and wattages.


 ELLA-Hotel Round Adjustable 5W-35W

Aesthetic and Practical Design

At first glance, ELLA impresses customers with its distinguishable e-shaped design, which represents ENCORE, ELLA, and an ultra easy life.
Take another closer look, ELLA downlight is in "e" shape to realize the stack effect so that air flows within the heatsink, and the heat dissipation can be ensured to avoid overheat. Therefore, ELLA could truly realize high wattage in a smaller size (e.g. cutout 75mm, 15W. The average 75mm LED recessed downlight generally could only make 10-12W)
Plus, ELLA's top logo can be customized into one of your own, so that your product could be instantly the superstar product boasting all the competitive features above.


 ELLA-Hotel Round Adjustable 5W-35W

Atmosphere-boosting Lights

Light is not just a brightness that lets you see things, it sets a mood and creates atmosphere. ELLA Hotel series offers 4 kinds of quality lights-oblique, direct, elliptical, and small round-to set different moods and create different atmospheres. Each of the four options will bring you a unique atmosphere lighted up in a precisely controlled lighting effect.

 ELLA-Hotel Round Adjustable 5W-35W



4 Beam Angles

Available in 15°, 24° , 38° and 55° beam angles, ELLA LED recessed downlight allows enough flexibility for you to choose from narrow beam on small objects requiring accent lighting to flood light on walls lacking general brightness. But no matter which angle is needed and where it is needed, one thing that remains the same is ELLA's high-level light quality and evenly blended light edge.


 ELLA-Hotel Round Adjustable 5W-35W

Above-average Anti-glare

ELLA's thoughtful design enlarges the cut-off angle to be 38°, which helps every user easily get rid of the annoying and damaging glare issue. Therefore, on one hand, ELLA brings a very high level of visual comfort, and on the other hand, it also realizes healthy lighting need, which is crucial especially for families with newborns, school-age children, and family members staring at screens a lot.


 ELLA-Hotel Round Adjustable 5W-35W

Anti-glare Accessories

In order to push the anti-glare effect further to a new level, ELLA is designed to be compatible with either honeycomb or soft lens, so that UGR could be minimized.

ELLA cares about every user's eye health very much.


 ELLA-Hotel Round Adjustable 5W-35W

Super Modular LED Engine

ELLA's LED engine is designed with super modular concept, allowing no-tool twist-on-off installation from lens to accessories. With this ultra easy product, you may prepare the luminaire stock in the most convenient manner and respond to lighting projects with different beam angle and anti-glare requirement in the most efficient manner.


 ELLA Downlight System

Super Modular Mounting Ring

ELLA's super modular design transforms the installation process from a risky ceiling-ruining process to a fun and easy surprise-creating experience.

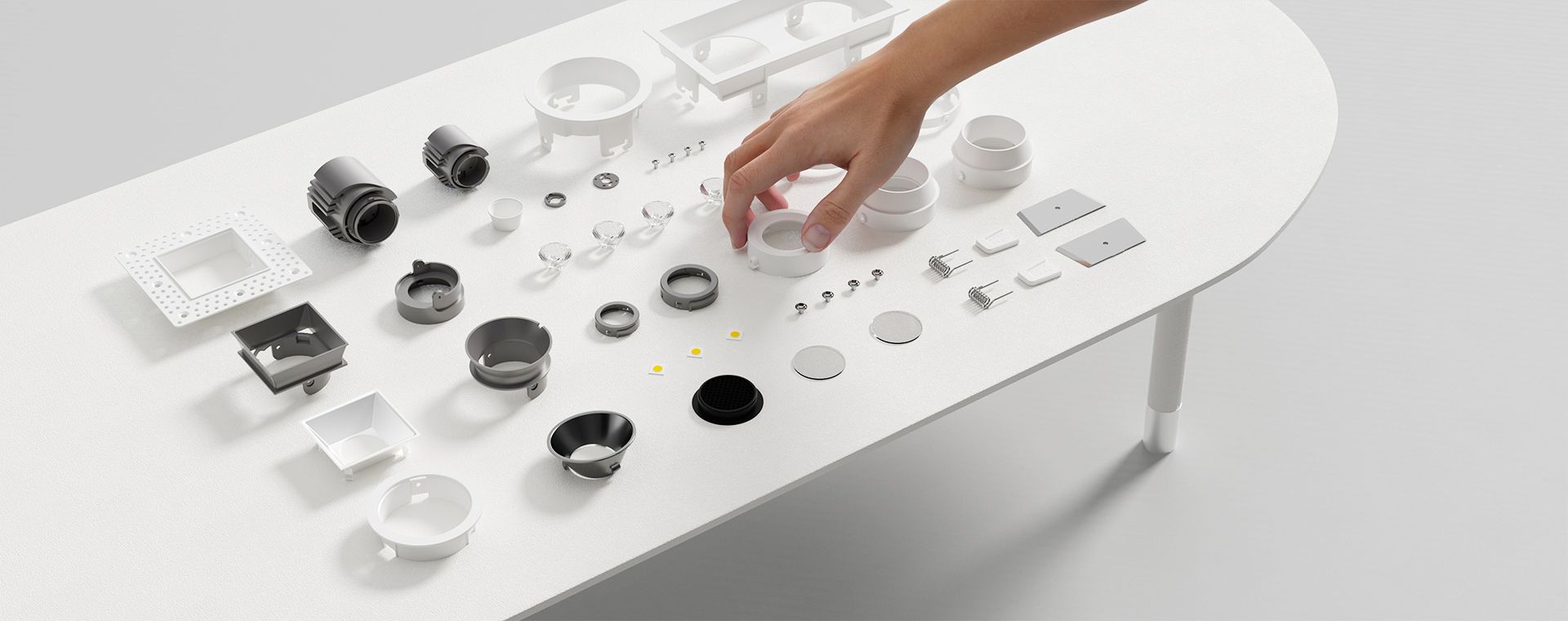

ELLA has over 23 mounting rings including round & square, trim & trimless, fixed & adjustable, and appearances of different styles. Every one of them requires only an easy push to be installed in the ceiling.
When changing the secondary reflector,  you could totally cast tools aside, because a gentle pinch would help you take the LED engine out and the mounting ring stays put, avoiding unnecessary scratches on your precious ceiling. Therefore, the super modular design not only protects your ceiling, but also ensures luminaire installation to be easy and efficient.
There are also 3 classic reflector colors to match with various environments and moods.

 ELLA-Hotel Round Adjustable 5W-35W



Super Modular Luminaire

ELLA Hotel series has made itself super modular from inside out. You can easily make a brand new luminaire by a quick and simple twist of the LED module + mounting ring combos: round & square, trim & trimless, fixed & adjustable. All these infinite possibilities will make the luminaire fit right into any commercial, residential, and especially hospitality settings. Therefore, no matter the demanding customer is expecting an LED recessed downlight solution for his hotel, store, restaurant, high-end bathroom, or the sweet home, you can always say yes.

 ELLA Downlight System

All In One Package

With more than 23 versatile mounting rings in different designs and dimensions, ELLA is no doubt the led recessed downlight solutions for any project, ranging from hospitality, residential, commercial, deep anti-glare to wall washing.

 ELLA Downlight System

Specs

-Elegant & compact in its style, versatile in its using.


-Precise light control, 15°, 24°, 38°, 55° beam lens options.


-Interchangeable different color secondary reflectors for aniti-glare and decorative purpose.


-Super modular design enables no-tool installation/replacement of LED module, mounting ring, beam lens, honeycomb filter, and secondary reflector.


-355° rotation and 30° tilt.


-Anti-glare accessories provide maximum visual comfort.


-IP20 is standard, IP54 is optional.


Application:Recessed luminaires,Pendant
Light source:COB LED
Light solution: 15°,24°,38°,55°
SDCM:<3
Watt:5W-35W
CCT:2700K,3000K,4000K,5000K
Luminous:347lm-2875lm
Control option:On/off,Triac,DALI,Phase dim
CRI:80+,90+
Module:
EM050,EM060,EM070,EM090



ImageDescriptionModel NO#Available for
Ella-HotelHoneycomb FilterEM050-HEM050

 Ella-Hotel

Beam Soft LensEM050-LEM050
Ella-HotelHoneycomb FilterEM060-HEM060
Ella-HotelBeam Soft LensEM060-LEM060
Ella-HotelHoneycomb FilterEM070-HEM070
Ella-HotelBeam Soft LensEM070-LEM070
Ella-HotelHoneycomb FilterEM090-HEM090
