ELLA-Residential 5W-35W

ELLA-Residential 5W-35W

Products Specification:

Application: Recessed-mounted

SDCM: <3

Beam Angle: 15°, 24°, 38°, 55°

Power: 5W, 8W, 10W, 15W, 20W, 25W, 30W, 35W

CCT: 2700K, 3000K, 4000K

Line Drawing:

ELLA-Residential 5W-35W

General Features:

Accessories


ELLA-Residential

ELLA-Residential LED recessed downlight is well-received in a variety of settings including commercial, hospitality, and especially residential spaces for both its perfect lighting effects and flexible mounting ring options. Its super modular design, along with 16 round & square mounting rings, fixed & tilt adjustment,  4 wattages and 3 sizes, sweeps the market as soon as its first introduction. Honeycomb filter can be added to maximize visual comfort.





 ELLA-Hotel Round Adjustable 5W-35W



4 Beam Angles

Available in 15°, 24° , 38° and 55° beam angles, ELLA LED recessed downlight allows enough flexibility for you to choose from narrow beam on small objects requiring accent lighting to flood light on walls lacking general brightness. But no matter which angle is needed and where it is needed, one thing that remains the same is ELLA's high-level light quality and evenly blended light edge.

 ELLA-Residential 5W-35W

Diverse Mounting Rings

ELLA Residential LED recessed downlight does not provide these many mounting rings for a show of flexibility, but aims to set a standard of practicality. Various kinds of light-small round, oval, and large round-help customers find the right light for different projects.


 ELLA-Residential 5W-35W

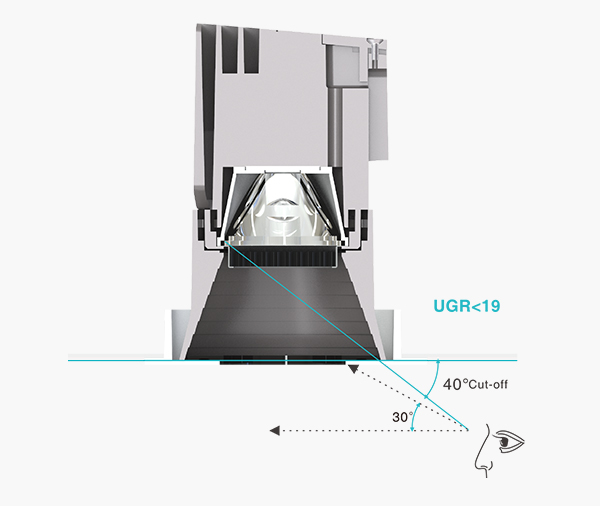

Above-average Anti-glare

ELLA's thoughtful design enlarges the cut-off angle to be 40°, which helps every user easily get rid of the annoying and damaging glare issue. Therefore, on one hand, ELLA brings a very high level of visual comfort, and on the other hand, it also realizes healthy lighting need, which is crucial especially for families with newborns, school-age children, and family members staring at screens a lot.


 ELLA-Residential 5W-35W

Anti-glare Accessories

In order to push the anti-glare effect further to a new level, ELLA is designed to be compatible with either honeycomb or soft lens, so that UGR could be minimized.

ELLA cares about every user's eye health very much.

 ELLA-Residential 5W-35W



Super Modular Luminaire

ELLA Residential series has made itself super modular from inside out. You can easily make a brand new luminaire by a quick and simple twist of the LED module + mounting ring combos: round & square, trim & trimless, fixed& adjustable. All these infinite possibilities will make the luminaire fit right into any commercial, hospitality, and especially residential settings. Therefore, no matter the demanding customer is expecting an LED recessed downlight solution for his sweet home, store, restaurant, high-end bathroom, or hotel, you can always say yes.


 ELLA-Residential 5W-35W

Full Lighting Solutions

11 adjustable along with 5 fixed versions, ELLA Residential presents in total 16 solutions for residential settings where quality light and luminaires are expected. The full 16 lighting solutions are all available in 4 sizes from tiny 55mm cutout to big 110mm cutout. Whatever is needed in the space, ELLA will help you find it.

Specs

-Elegant & compact in its style, versatile in its using.


-Precise light control, 15°, 24°, 38°, 55° beam lens options.


-Numerous mounting rings with round & square and adjustable & fixed options.


-Super modular design, replacing LED module, mounting ring, beam lens and anti-glare accessories without any needs for tools.


-IP20 is standard, IP44 is optional.


Order info.PowerLed CurrentLuminous
Flux(lm)
CRICCTBeam Angle
(°)
EM050-EF52RA01-15D5W120mA302 lm90+2700K15°
EM050-EF52RA01-24D5W120mA334 lm90+2700K24°
EM050-EF52RA01-38D5W120mA323 lm90+2700K38°
EM050-EF52RA01-55D5W120mA303 lm90+2700K55°
EM050-EF52RA01-15D8W180mA357 lm90+2700K15°
EM050-EF52RA01-24D8W180mA394 lm90+2700K24°
EM050-EF52RA01-38D8W180mA381 lm90+2700K38°
EM050-EF52RA01-55D8W180mA357 lm90+2700K55°
EM060-EF62RA01-15D10W250mA629 lm90+2700K15°
EM060-EF62RA01-24D10W250mA667 lm90+2700K24°
EM060-EF62RA01-38D10W250mA687 lm90+2700K38°
EM060-EF62RA01-55D10W250mA580 lm90+2700K55°
EM060-EF62RA01-15D15W250mA1173 lm90+2700K15°
EM060-EF62RA01-24D15W250mA1199 lm90+2700K24°
EM060-EF62RA01-38D15W250mA1203 lm90+2700K38°
EM060-EF62RA01-55D15W250mA1114 lm90+2700K55°
EM070-EF72RF01-15D20W500mA1843 lm90+2700K15°
EM070-EF72RF01-24D20W500mA1889 lm90+2700K24°
EM070-EF72RF01-38D20W500mA1819 lm90+2700K38°
EM070-EF72RF01-55D20W500mA1647 lm90+2700K55°
EM070-EF72RF01-15D25W600mA1790 lm90+2700K15°
EM070-EF72RF01-24D25W600mA1837 lm90+2700K24°
EM070-EF72RF01-38D25W600mA1851 lm90+2700K38°
EM070-EF72RF01-55D25W600mA1676 lm90+2700K55°
EM090-EF92RA01-15D30W700mA2270 lm90+2700K15°
EM090-EF92RA01-24D30W700mA2312 lm90+2700K24°
EM090-EF92RA01-38D30W700mA2105 lm90+2700K38°
EM090-EF92RA01-55D30W700mA2250 lm90+2700K55°
EM090-EF92RA01-15D35W850mA2693 lm90+2700K15°
EM090-EF92RA01-24D35W850mA2762 lm90+2700K24°
EM090-EF92RA01-38D35W850mA2516 lm90+2700K38°
EM090-EF92RA01-55D35W850mA2619 lm90+2700K55°



ImageDescriptionModel NO#Available for
Ella-HotelHoneycomb FilterEM050-HEM050

Ella-Hotel

Beam Soft LensEM050-LEM050
Ella-HotelHoneycomb FilterEM060-HEM060
Ella-HotelBeam Soft LensEM060-LEM060
Ella-HotelHoneycomb FilterEM070-HEM070
Ella-HotelBeam Soft LensEM070-LEM070
Ella-HotelHoneycomb FilterEM090-HEM090




Downloads

Model Power Picture Download
ELLA-RESIDENTIAL 5W ELLA RESIDENTIAL 5W EM050 LED Module + Mounting Ring Download
Model Power Picture Download
ELLA-RESIDENTIAL 5W ELLA RESIDENTIAL 5W EM050 LED Module + Mounting Ring Download
Model Power Picture Download
ELLA-RESIDENTIAL 5W ELLA RESIDENTIAL 5W EM050 LED Module + Mounting Ring IESLDT
EM060 9W ELLA RESIDENTIAL 9W EM060 LED Module + Mounting Ring IESLDT
ELLA70 20W ELLA RESIDENTIAL 20W EM070 LED Module + Mounting Ring IESLDT
ELLA70 25W ELLA RESIDENTIAL 25W EM070 LED Module + Mounting Ring IESLDT
ELLA90 30W ELLA RESIDENTIAL 30W EM090 LED Module + Mounting Ring IESLDT
ELLA90 35W ELLA RESIDENTIAL 35W EM090 LED Module + Mounting Ring IESLDT
