Custom BIRO Track Light

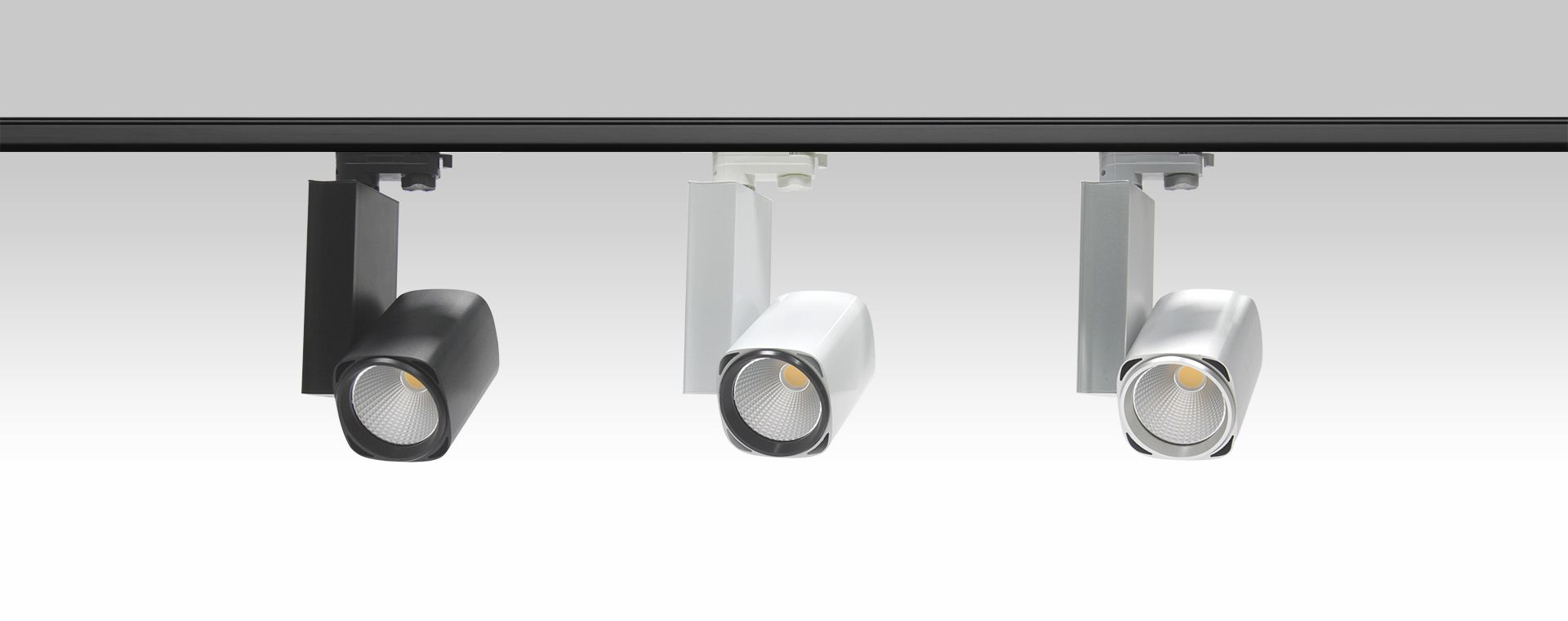

BIRO Track Light 20W-30W

Products Specification:

Application: Track-mounted

SDCM: ＜3

Beam Angle: 15°, 24°, 38°, 60°

Power: 20W, 30W

CCT: 2700K, 3000K, 4000K, 5000K

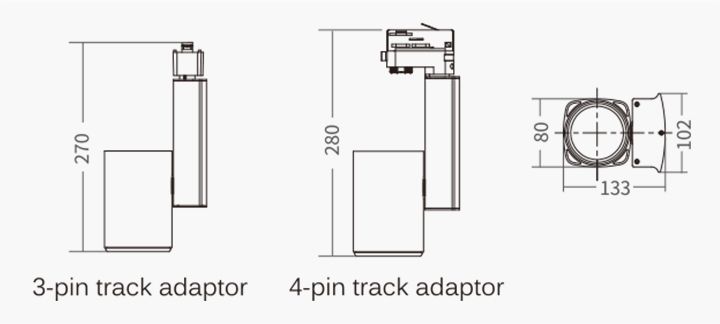

Line Drawing:

BIRO Track Light 20W-30W

General Features:

OVEGA-Narrow Beam 10W

Accessories

OVEGA-Premium Small LED Track Light 10W-15W

Frame Color

AIMER Track Light 25-35W

Great Light Quality

Available in 15°, 24° , 38° and 60° beam angles, BIRO allows enough flexibility from narrow beam to flood light. BIRO’s light effect remains even and smooth for every beam angle with high light efficiency >100lm/w.

BIRO Track Light 20W-30W

Anti-glare Accessory

Honeycomb is available for better eye comfort. The push-lock structure saves the trouble of using tools, making life not only more comfortable but also easier.

BIRO Track Light 20W-30W

Solid Practicality

Both the luminaire head and the whole luminaire could be swiveled 355°, projecting light in almost all directions. The separate driver design makes sure the balance of the luminaire is well maintained in all possible direction when adjusting position even on suspended track rail.

BIRO Track Light 20W-30W

Satisfying Heat Dissipation

The combination of Al6063 and separate heat sink design brings out the best heat dissipation performance in BIRO, making sure it reaches up to 30W. The lifespan of the luminaire is also maximized because of the separation of driver and COB heat sink. BIRO has been one of the classic LED track lights of ENCORE since its rolling out with the record of zero customer complaint for 8 years in a row.

-Interchangeable reflector: 15°, 24°, 38°, 60°.

-Privately-designed joint can hold the track head at any positions without malfunctions.

-Beam angle adjustable mechanism provides endless beam options from a narrow to wide flood distribution by simply rotate the rubber ring.

-Precision aiming adjustment: 355° aiming both horizontal and vertical rotation.

-Can be equipped with anti-glare honeycomb filter.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
EN-TLB020-01-830N015B	20W	520mA	1974lm	80+	3000K	15°
EN-TLB020-01-830N015B	20W	520mA	2077lm	80+	4000K	15°
EN-TLB020-01-830N024B	20W	520mA	1980lm	80+	3000K	24°
EN-TLB020-01-830N024B	20W	520mA	2084lm	80+	4000K	24°
EN-TLB020-01-830N038B	20W	520mA	1974lm	80+	3000K	38°
EN-TLB020-01-830N038B	20W	520mA	2078lm	80+	4000K	38°
EN-TLB020-01-830N060B	20W	520mA	1981lm	80+	3000K	60°
EN-TLB020-01-830N060B	20W	520mA	2085lm	80+	4000K	60°
EN-TLB030-01-830N015B	30W	700mA	2643lm	80+	3000K	15°
EN-TLB030-01-830N015B	30W	700mA	2782lm	80+	4000K	15°
EN-TLB030-01-830N024B	30W	700mA	2640lm	80+	3000K	24°
EN-TLB030-01-830N024B	30W	700mA	2779lm	80+	4000K	24°
EN-TLB030-01-830N038B	30W	700mA	2632lm	80+	3000K	38°
EN-TLB030-01-830N038B	30W	700mA	2770lm	80+	4000K	38°
EN-TLB030-01-830N060B	30W	700mA	2605lm	80+	3000K	60°
EN-TLB030-01-830N060B	30W	700mA	2742lm	80+	4000K	60°

None

Datesheet
Installation Manual
LDT/IES File

Model	Power	Picture	Download
TLB020-01	20W		Download

Model	Power	Picture	Download
TLB020-01	20W		Download

Model	Power	Picture	Download
TLB020-01	20W		IES LDT
TLB030-01	30W		IES LDT
