EVO Track Light 10-15W

Products Specification:

Application: Track-mounted

SDCM: ＜3

Beam Angle: 24°, 36°, 50°

Power: 10W, 15W

CCT: 2700K, 3000K, 3500K, 4000K

Line Drawing:

EVO Track Light 10-15W

General Features:

ALINE Track Light 10-15W

Accessories

ALINE Track Light 10-15W

Frame Color

EVO Track Light

(10W 15W)

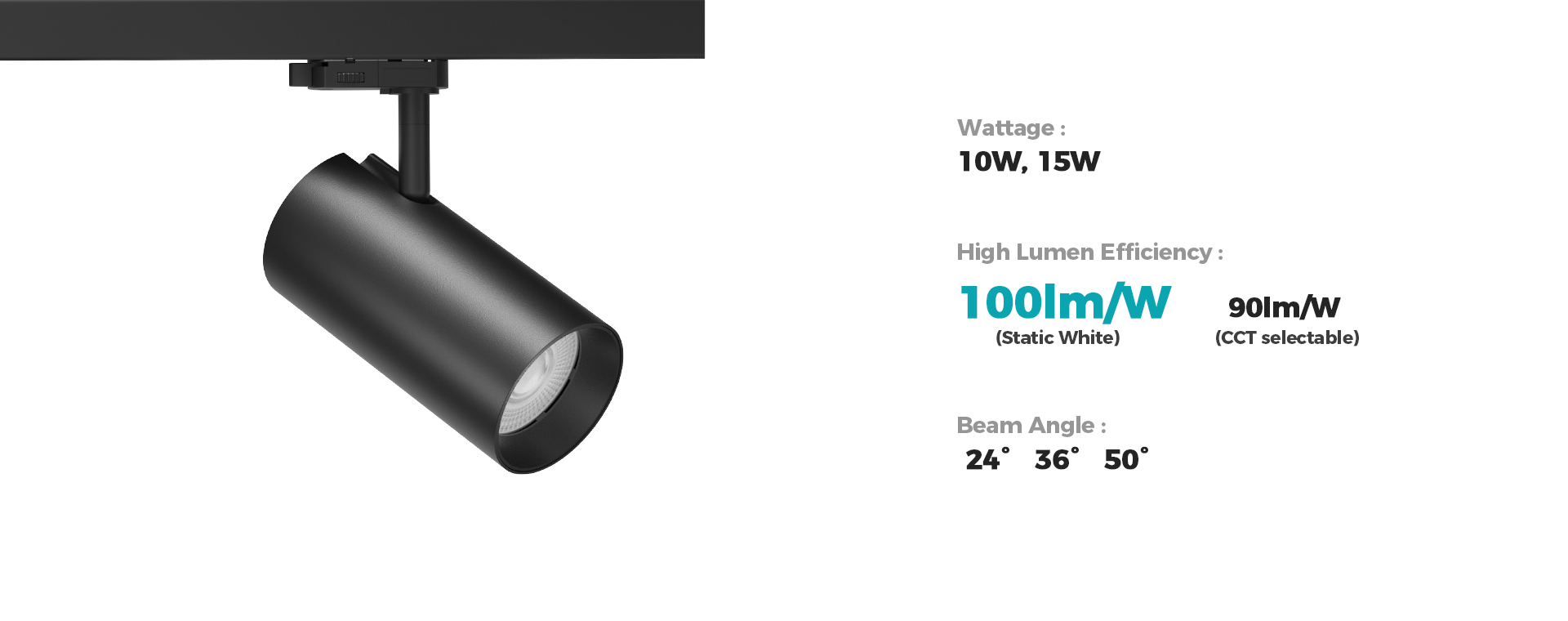

EVO is a stylish and compact LED track light that will fit smoothly into any retail, gallery environments. High lumen efficiency(>100lm/W) & versatile optical accessories can increase the great light comfort and fulfill different light demands. The head can be adjusted precisely 360°+ horizontal(rotation) and 90° vertical without dead angle. The light, as a result, is emitted exactly where you need it. The integrated driver gives clean feeling and the ceiling will not be cluttered with drivers aimed in different directions.

EVO Track Light 10-15W

ALINE Track Light 10-15W

Specs

Features
Specsheet
Accessories

- Stylish and compact design with integrated driver.

- Light efficiency is up to 100lm/W(static white) & 90lm/W(CCT selectable).

- Interchangeable lens: 24°, 36°, 50°.

- Help client reduce inventory pressure, make CCT selectable(27K/30K/40K) as an option.

- Maximum the visual comfortable, the UGR is<16, plus honeycomb filter, the UGR is even <10.

- Very clean & elegant design, decorate the environment in a minimalist style.

- Privately-designed joints can hold the track head at any positions without malfunctions.

- 360°+ rotation without dead angle and 90°vertical aiming.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
EN-TLE010-11	10W	250mA	863lm	90+	3000K	24°
EN-TLE010-11	10W	250mA	887lm	90+	3000K	36°
EN-TLE010-11	10W	250mA	846lm	90+	3000K	50°
EN-TLE015-11	15W	350mA	1198lm	90+	3000K	24°
EN-TLE015-11	15W	350mA	1222lm	90+	3000K	36°
EN-TLE015-11	15W	350mA	1183lm	90+	3000K	50°
