IMAX-Zoomable 10W-15W

Products Specification:

Application: Track-mounted, Wall-mounted

SDCM: ＜3

Beam Angle: 6°-50°, 10°-50°

Power: 10W, 15W

CCT: 2700K, 3000K, 4000K, 5000K

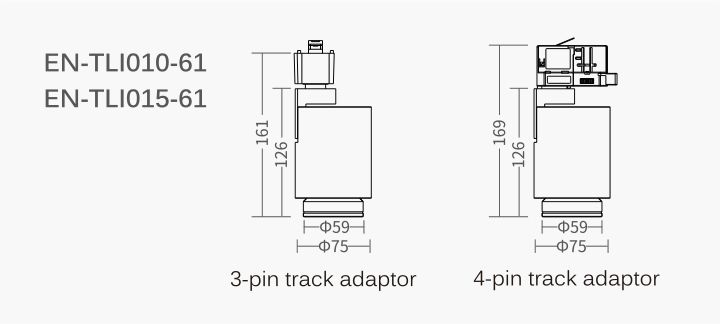

Line Drawing:

IMAX-Zoomable 10W-15W

General Features:

Accessories

Frame Color

IMAX Zoomable 6°-50°

(10W 15W)

IMAX Zoomable 6°-50° track lights are slim and clean LED track lights that fit perfectly into any museum, gallery, and places hoping for a minimalist impression. The latest addition to the IMAX Zoomable series-Zoomable 6°-50°, besides all the highlights and key features of other zoomable LED track lights such as precise light control, even light distribution, and fine adjusting experience, further narrows the beam angle to 6°, which not only integrates spot light and flood light in one luminaire, but also perfects the spot light. The luminaire head swivels precisely horizontal 360°and vertical 90°without dead angle. The light, as a result, is emitted exactly where you need it. The integrated driver gives clean feeling and avoids a cluttered ceiling caused by drivers pointing in different directions.

IMAX-Zoomable 10W-15W

Capable Zooming Performance

IMAX Zoomable LED track light, the 2nd–generation IMAX Zoomable luminaire, offers a wide angle adjusting range from 6°to 50° & 10°to 50° for various lighting effects such as accent lighting and flood lighting. It manages to realize ±5% accurate beam control. Moreover, the light quality remains outperforming at any angle when zooming through an easy push and pull of the lens. Honeycomb and barn door can be added for a better visual comfort.

IMAX-Zoomable 10W-15W

Capable Anti-glare Comfort

When most of the LED track lights are satisfied with UGR<19, IMAX Zoomable pushes the standard to the next level with 40-degree anti-glare angle and easy-to-install honeycomb and barn door, reducing UGR to under 16 to bring every user a high-level eye comfort.

IMAX-Zoomable 10W-15W

Minimalist Design

As important as they are, screws can be a little "less wanted" for aesthetic purpose. Therefore, IMAX Zoomable has made screws disappeared on the visible surface, leaving only a simple, clean, and elegant appearance for customers.

Specs

Features
Specsheet
Accessories

-Slim and clean design with integrated driver.

-By adjusting the focal length, the beam angle is changed from 6° to 50°& 10° to 50°.

-Privately-designed joints can hold the track head at any positions without malfunctions.

-360°+ rotation without dead angle and 90°vertical aiming.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
EN-TLI010-61-830N06W	10W	700mA	315lm	80+	3000K	6°
EN-TLI010-61-830N050W	10W	700mA	518lm	80+	3000K	50°
EN-TLI015-61-830N010W	15W	250mA	646lm	80+	3000K	10°
EN-TLI015-61-830N050W	15W	250mA	1080lm	80+	3000K	50°
Beam angle adjustable from 15°to 70°
EN-TLI015-01-830N015B	15W	350mA	579lm	80+	3000K	15°
EN-TLI015-01-830N070B	15W	350mA	1301lm	80+	3000K	70°
Beam angle adjustable from 15°to 90°
EN-TLI015-01-830N015B	15W	350mA	303lm	80+	3000K	15°
EN-TLI015-01-830N090B	15W	350mA	1136lm	80+	3000K	90°

	Honey-comb	EN-TLI-AC01	IMAX-Zoomable 10W/15W
	Barn-door	EN-TLI-AC02	IMAX-Zoomable 10W/15W

Downloads

Datesheet
Installation Manual
LDT/IES File

Model	Power	Picture	Download
TLI015-61	10W-15W		Download

None

Model	Power	Picture	Download
TLI015-61	10W-15W		IES LDT
