MEGA Track Light 10W

MEGA Track Light 10W

videovideo

Products Specification:

Application: Track-mounted

SDCM: <3

Beam Angle: 10°, 25°, 40°, 60°

Power: 10W

CCT: 2700K, 3000K, 4000K, 5000K

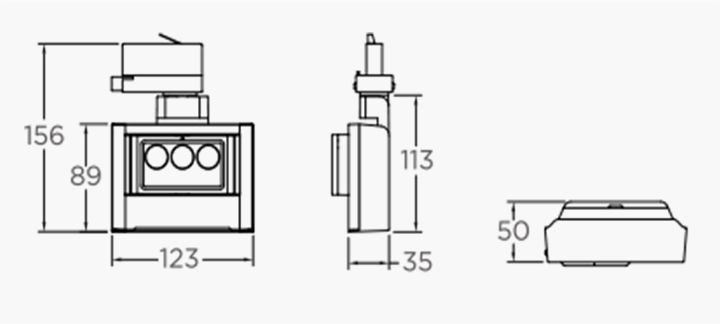

Line Drawing:

MEGA Track Light 10W

General Features:

Accessories

Frame Color

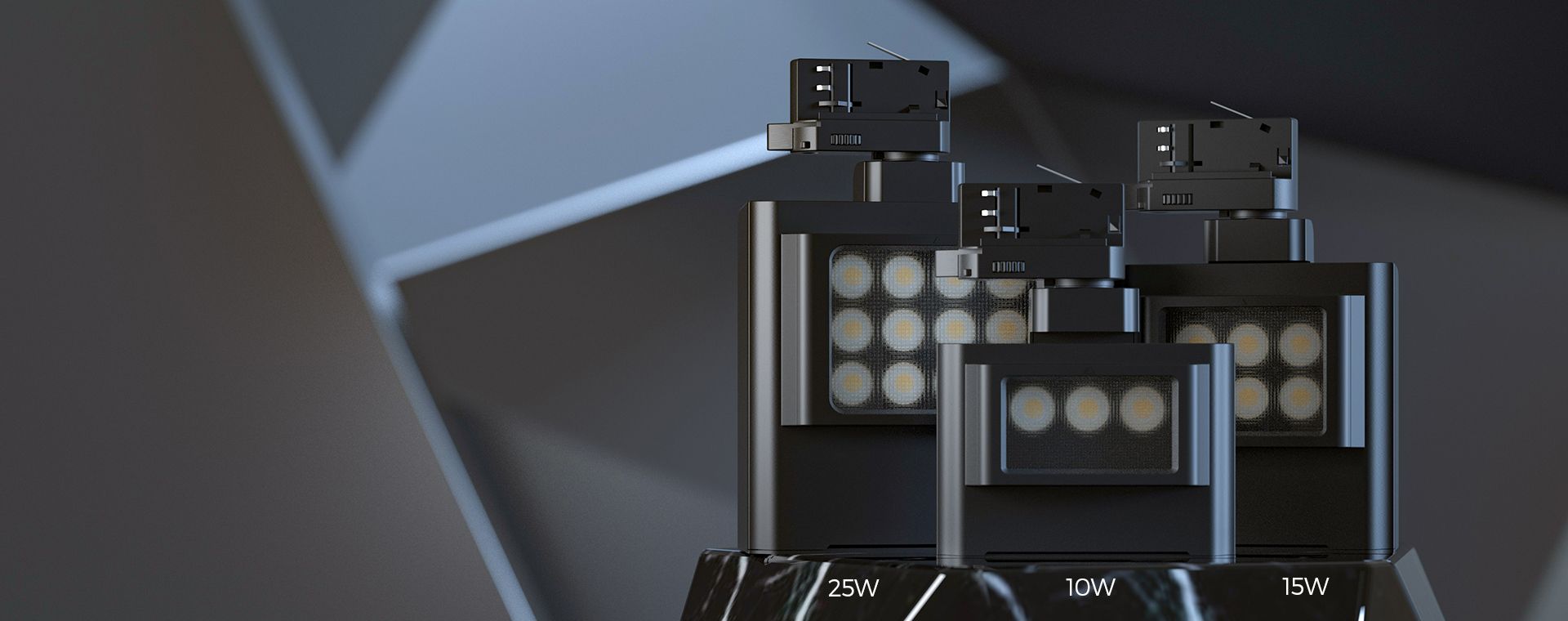

MEGA Track Light

(10W 15W 25W)

Mega- a tailor-made LED track light for museums and galleries. The minimalist industrial design concept can fit smoothly into the exhibition enviroments. Using the advanced high lumen output and up to CRI95+ high saturation light color LED chips to restore the real color of the exhibits with soft and natural light. Equipped with superflexible snap-on interchangeable filters design offers 10 types of beam shapes from 10°to 80°,flood and wall washing lighting. Different beam shapes provide accurate light distribution along with high saturation lighting color. Built-in flicker-free driver, support standard dimming triac, 0/1-10V individual dimmer and intellgent dimming DALI, Casambi etc to satisfy the requirement of flexible adjust the lighting brightness.





 MEGA Track Light 10W



Fabulous Appearance

Ultra-thin flat appearance distinguished it from traditional track lights. Square streamlined design makes it looks speical and gentle, and well presents the craftsmanship spirit.

 MEGA Track Light 10W



User-friendly Snap-on Design

Mega is not only care about the external beauty but also focus on providing good use experience to you. The snap-on design offers easy replacement experience of optical filters. And the triangle mark can helps you fast postioning to the lock even in darkness.


 MEGA Track Light 10W

Super Reliable Joint

Mega updated the joint into double-spindle, which is 5kg+ load-bearing joint to hold the lamp at any positions without loosen, provides you a sense of reliability and trust.


 MEGA Track Light 10W

Perfect Thermal Management

High efficiency heat convection design in the compact design ensures 50,000hrs lifespan. Perfect thermal management integrates small body with big wattage makes the ceiling looks clear and comfortable.


 MEGA Track Light 10W

Concealed 1-10V Contol Gear

Different with other series, the Mega owns a concealed 1-10V control gear which presents the minimalist aesthetic design concept and easy for adjustment of brightness.

 MEGA Track Light 10W



Magical Filters

In addtion to the complete lighting solutions, Mega also allow various versions of spotlight, floodlight, and wall-washing light with 4 types of light filters. Infinite lighting creations, all by Mega.

 MEGA Track Light 10W

Master Lighting Effect

Every piece of Mega LED track light delivers 3 kinds of lighting effects-spotlight, floodlight, and wall washing light-with each kind reaching a master level of lighting quality. Therefore, with all the lighting solutions in one luminaire, Mega is considered as a strong partner for virtually any lighting task.

Specs

-Delicated & compact square shape design ensures easy installation.


-Covers 10W-30W lumen packages making the range ideal for close distance as well as the high ceilings ilumination.


-Combines spotlights, floodlight and wallwashing in a single luminaire.


-Snap-on design for easy interchangeability of optical filters.


-Privately-designed joints can hold the lights at any positions without malfunctions.


360°+ rotation without dead angle and 90°vertical aiming.


-Privately-designed joints can hold the track head at any positions without malfunctions.

Order info.PowerLed CurrentLuminous
Flux(lm)
CRICCTBeam Angle
(°)
EN-TLY010-11-930N010W10W250mA843lm90+3000K10°
EN-TLY010-11-930N025W10W250mA748lm90+3000K25°
EN-TLY010-11-930N040W10W250mA880lm90+3000K40°
EN-TLY010-11-930N060W10W250mA744lm90+3000K60°
