OVEGA-Zoomable LED Track Lighting 20W-30W

Products Specification:

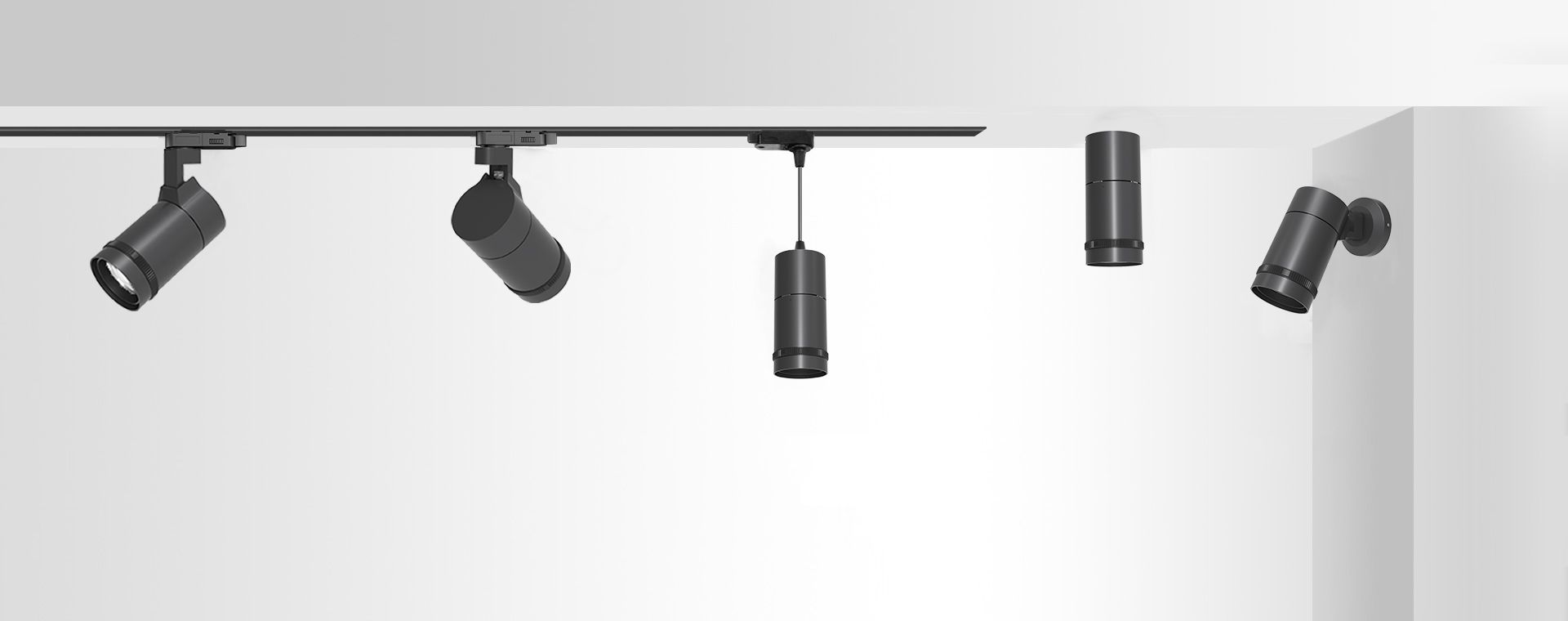

Application: Track-mounted, Surface-mounted, Wall-mounted, Pendant

SDCM: ＜3

Beam Angle: 10°-60°

Power: 20W, 25W

CCT: 2700K, 3000K, 4000K, 5000K

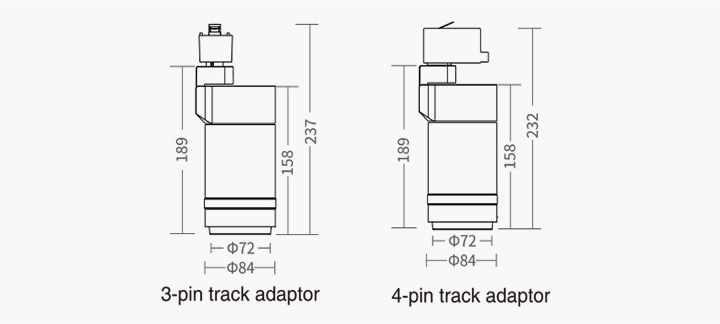

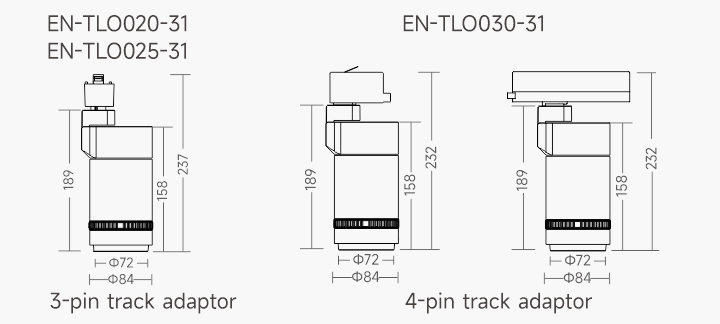

Line Drawing:

OVEGA-Zoomable LED Track Lighting 20W-30W

General Features:

Accessories

Frame Color

OVEGA-Zoomable

(20W 25W)

OVEGA-Zoomable is a stylish and compact LED track light that fits perfectly into any retail, museum and gallery setting. Its adjustable beam mechanism is designed to provide endless beam options from 25° narrow to 60°wide flood distribution. The luminaire head swivels precisely horizontal 360°and vertical 90° without dead angle. The light, as a result, is emitted exactly where you need it. The integrated driver gives clean feeling and avoids a cluttered ceiling caused by drivers pointing in different directions.

OVEGA-Zoomable 20W-30W

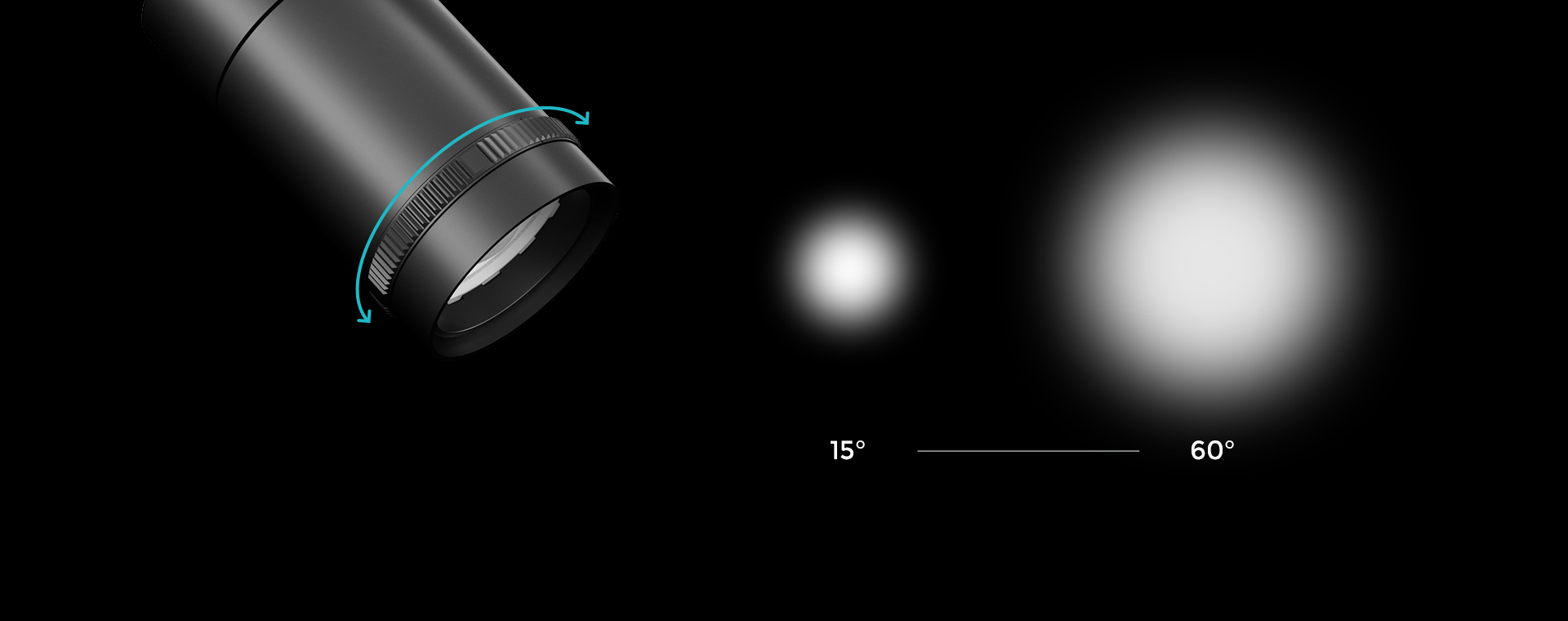

Capable Zooming Performance

OVEGA Zoomable Small LED track light, the 3rd–generation ENCORE Zoomable luminaire, offers a wide angle adjusting range from 10° to 60° for various lighting effects such as accent lighting and flood lighting. It manages to realize ±5% accurate beam control. Moreover, the light quality remains outperforming at any angle when zooming.

OVEGA-Zoomable Small 10W-15W

2 different ways to adjust CCT

OVEGA-Zoomable 20W-30W

Capable Rubber Metal Combo

Unlike the majority of zoomable track light fixtures, OVEGA Zoomable adopts the rule-breaking combo of rubber + metal, which not only creates the similar exquisite appearance of digital camera, but also realizes camera-level artistic using pleasure, precise zooming adjustment, and careful heat protection. *on-request scale marking available

OVEGA-Zoomable 20W-30W

Capable Anti-glare Comfort

When most of the LED track lights are satisfied with UGR<19, OVEGA Zoomable pushes the standard to the next level with 40-degree anti-glare angle and easy-to-install honeycomb filter, reducing UGR to under 16 to bring every user a high-level eye comfort.

OVEGA-Zoomable Small 10W-15W

Capable Modular Design

As the forerunner of track lighting system in China, OVEGA has well realized the modular design concept in each OVEGA product with 4 interchangeable installation bases. No matter which is your favorite, we make it possible all in the same system with the same unified design.

Imagine all the time, energy, and money saved from the exhausting hunting for "the one".

Remarkable Outdoor Living Store, Australia

Retail Store ,Australia

Nike Eugene Oregon Store, USA

Daqing Oil Field Museum

Sichuan Museum, China

Remarkable Outdoor Living Store, Australia
Retail Store ,Australia
Nike Eugene Oregon Store, USA
Daqing Oil Field Museum
Sichuan Museum, China

Specs

Features
Specsheet
Accessories

-Stylish and compact design with integrated driver.

-Excellent modular combination concept: integrated driver+ different fixture bases, DIY to get different lighting solutions and easy for maintenance.

-Beam angle adjustable mechanism provides endless beam options from a narrow to wide flood distribution by simply rotate the rubber ring.

-Light efficiency is up to 90lm/W.

-Privately-designed joints can hold the track head at any positions without malfunctions.

-360°+ rotation without dead angle and 90°vertical aiming.

-Use OVEGA family to get a unified impression in one environment.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
EN-TLO020-31-830N025W	20W	520mA	1213lm	80+	3000K	10°
EN-TLO020-31-830N060W	20W	520mA	1518lm	80+	3000K	60°
EN-TLO025-31-830N025W	25W	600mA	1517lm	80+	3000K	25°
EN-TLO025-31-830N060W	25W	600mA	1898lm	80+	3000K	60°

Image	Description	Model NO#	Available for
	Honeycomb Louve	EN-TLO-AC11	OVEGA-Zoomable 20W/25W

Downloads

Datesheet
Installation Manual
LDT/IES File

Model	Power	Picture	Download
TLO030-31	30w		Download

Model	Power	Picture	Download
TLO030-31	30w		Download

Model	Power	Picture	Download
TLO020-31	20W		IES LDT
TLO025-31	25W		IES LDT
TLO030-31	30w		IES LDT
