VEGA-Reflector 30W

Products Specification:

Application: Track-mounted, Recessed, Surface-mounted

SDCM: ≤3

Beam Angle: 22°, 28°, 38°, 60°

Power: 30W

Static White: 2700K, 3000K, 3500K, 4000K

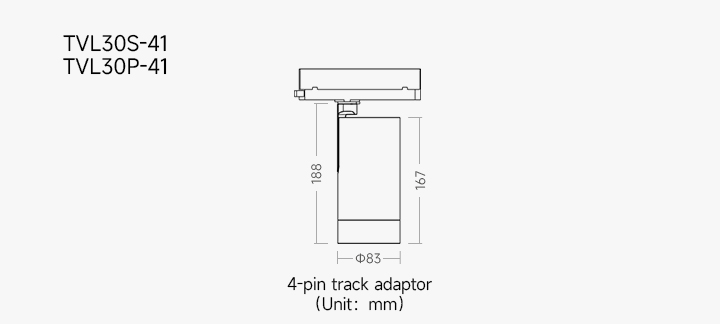

Line Drawing:

VEGA-Reflector 30W

General Features:

ALINE Track Light 10-15W

VEGA Track Light 10W

VEGA-Standard 15W-20W

Frame Color

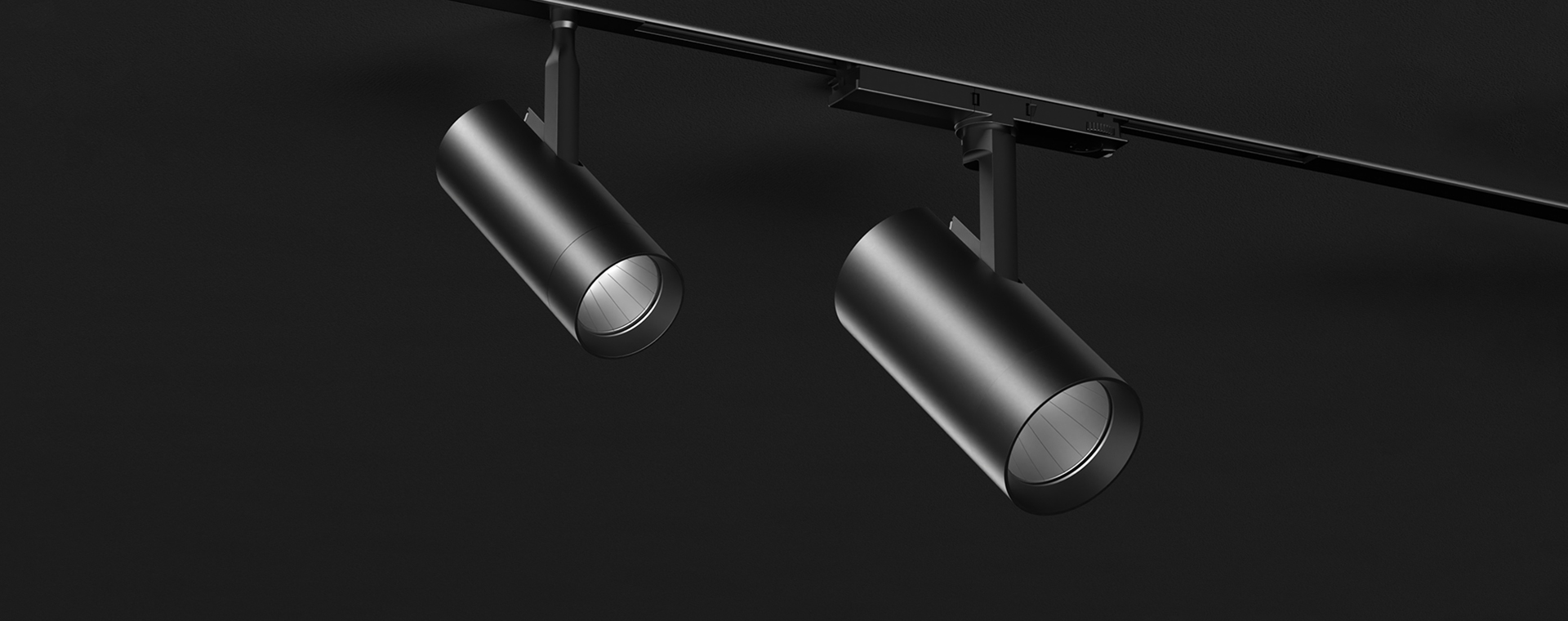

VEGA-Reflector Track Light

(30W)

The VEGA Reflector track light is available in two compact sizes- 2" and 3"-and combines powerful lighting with an elegant, slim design. Featuring in-track drivers for diverse dimming options, it's perfectly suited for both retail and commercial spaces.

VEGA-Reflector 20W

Slim&Clean Design

Finely engineered mechanism for premium look and better user experience.

VEGA-Reflector 20W

VEGA Track Light System

Specs

Features
Specsheet
Accessories

- Slim and sleek aesthetic design without screw.

- 360+° rotatable, 90° tiltable.

- In-track driver for flexible dimming: triac, dali, wireless control.

- Flexible mounting options: Track-mounted, Recessed and Surface-mounted

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
TVL30S-41	30W	750mA	3300lm	90+	3000K	22°
TVL30S-41	30W	750mA	3284lm	90+	3000K	28°
TVL30S-41	30W	750mA	3266lm	90+	3000K	38°
TVL30S-41	30W	750mA	3387lm	90+	3000K	60°
TVL30P-41	30W	750mA	3936lm	90+	3000K	22°
TVL30P-41	30W	750mA	3858lm	90+	3000K	28°
TVL30P-41	30W	750mA	3821lm	90+	3000K	38°
TVL30P-41	30W	750mA	3896lm	90+	3000K	60°
