OVEGA Cylinder-Standard

Products Specification:

Application: Surface-mounted, Pendant

SDCM: ＜3

Beam Angle: 15°, 24°, 38°, 60°

Power: 20W, 25W, 30W

CCT: 2700K, 3000K, 3500K, 4000K

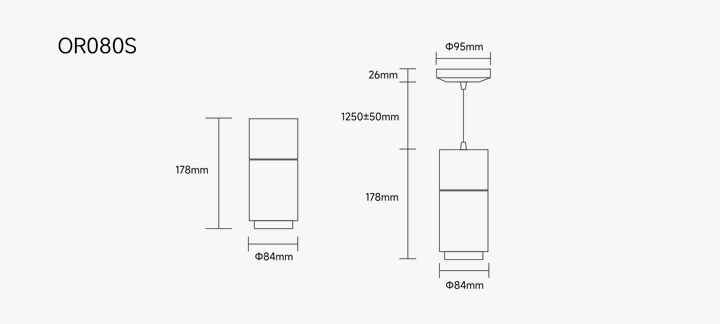

Line Drawing:

OVEGA Cylinder-Standard

General Features:

OVEGA-Narrow Beam 10W

Frame Color

OVEGA Cylinder-Standard

(20W 25W 30W)

OVEGA Cylinder-Standard is a stylish and compact cylinder light that fits smoothly into any retail and gallery setting. The front snoot brings a good eye comfort. The light, as a result, is emitted exactly where you need it. The integrated driver gives clean feeling and avoids a cluttered ceiling caused by drivers pointing in different directions.

OVEGA-Standard 20-30W

4 Beam Angles

OVEGA Standard’s 4 beam angles- 15°, 24°, 38°, and 60°- are all projected with negligible filed angle, realizing a better-than-average less-dispersed final lighting effect.

OVEGA Cylinder-Standard

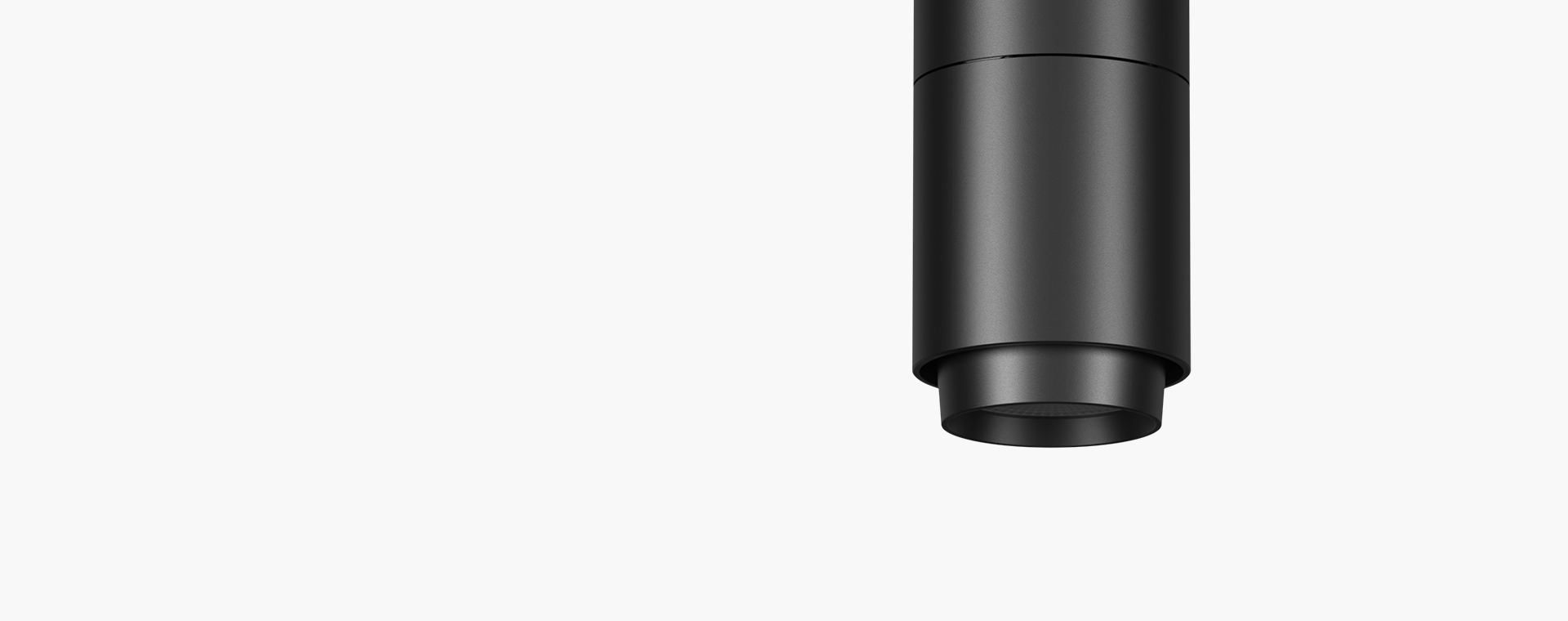

Anti-glare

OVEGA-Standard adopts the built-in extended front snoot design, which brings a good eye comfort and saves unnecessary cost on anti-glare accessories.

OVEGA Cylinder-Standard

ENCORE Private LED Holder

What does ENCORE Private LED holder have to offer:

Perfect size & shape matching with CITIZEN, CREE, LUMINUS, PHILIPS COB LED;

User-friendly & positioning-free lens replacement;

Total 2% lumen increase by the smooth PC surface.

OVEGA-Standard 20-30W

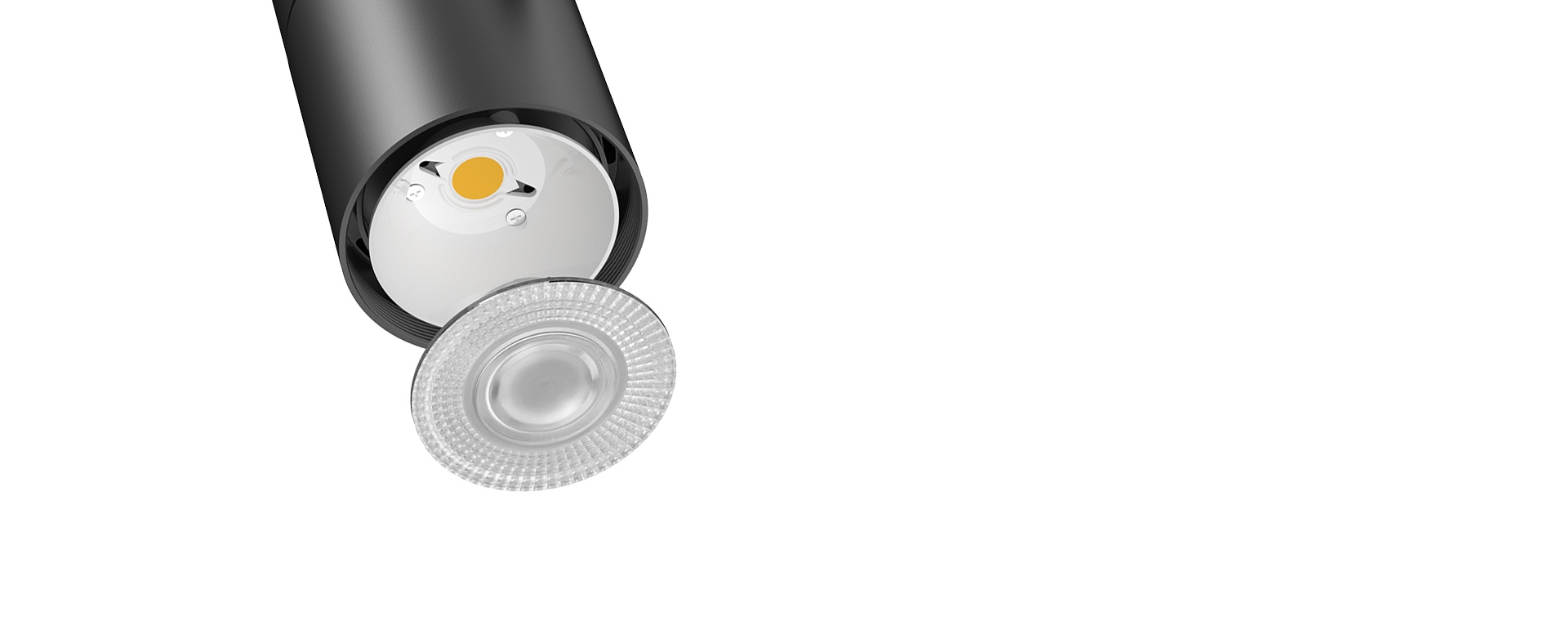

2-Step Zero-Tool Lens Replacement

ENCORE knows well that our customers are long bothered by lens changes due to order mistake or component malfunction happened to average luminaire. Therefore, we are here with solution-ENCORE private LED holder. No matter you've accidentally placed the wrong angle order or want to see the effect of more angles without wasting too much money on unnecessary samples, or you're preparing stock for the upcoming busy sales season, the LED holder will have these issues all taken care of.

OVEGA-Standard 20-30W

Capable Modular Design

As the forerunner of track lighting system in China, OVEGA has well realized the modular design concept in each OVEGA product with 4 interchangeable installation bases. No matter which is your favorite, we make it possible all in the same system with the same unified design. Imagine all the time, energy, and money saved from the exhausting hunting for "the one".

Specs

Features
Specsheet
Accessories

-Stylish and compact design with integrated driver.

-Excellent modular combination concept: integrated driver+ different fixture bases, DIY to get different light solutions and easy for maintenance.

-Light efficiency is up to 95lm/W.

-Interchangeable lens: 15°, 24°, 38°, 60°.

-Use OVEGA family to get a unified impression in one environment.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
OR080S	20W	520mA	1669lm	90+	3000K	15°
OR080S	20W	520mA	1796lm	90+	3000K	24°
OR080S	20W	520mA	1800lm	90+	3000K	38°
OR080S	20W	520mA	1638lm	90+	3000K	60°
OR080S	25W	600mA	1888lm	90+	3000K	15°
OR080S	25W	600mA	2065lm	90+	3000K	24°
OR080S	25W	600mA	2070lm	90+	3000K	38°
OR080S	25W	600mA	1914lm	90+	3000K	60°
OR080S	30W	730mA	2265lm	90+	3000K	15°
OR080S	30W	730mA	2362lm	90+	3000K	24°
OR080S	30W	730mA	2358lm	90+	3000K	38°
OR080S	30W	730mA	2152lm	90+	3000K	60°
