OVEGA Cylinder-Zoomable

Products Specification:

Application: Surface-mounted, Pendant

SDCM: ＜3

Beam Angle: 15°-40°(10/15W), 10°-60°(20/25W), 25°-60°(30W)

Power: 10W, 15W, 20W, 25W, 30W

CCT: 2700K, 3000K, 3500K, 4000K

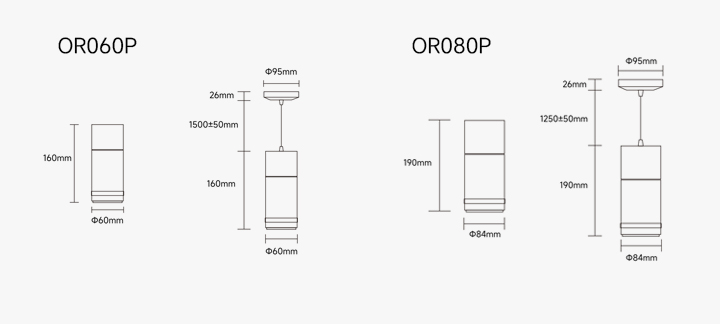

Line Drawing:

OVEGA Cylinder-Zoomable

General Features:

OVEGA-Narrow Beam 10W

Accessories

OVEGA-Premium Small LED Track Light 10W-15W

Frame Color

OVEGA Cylinder-Zoomable

(10W-30W)

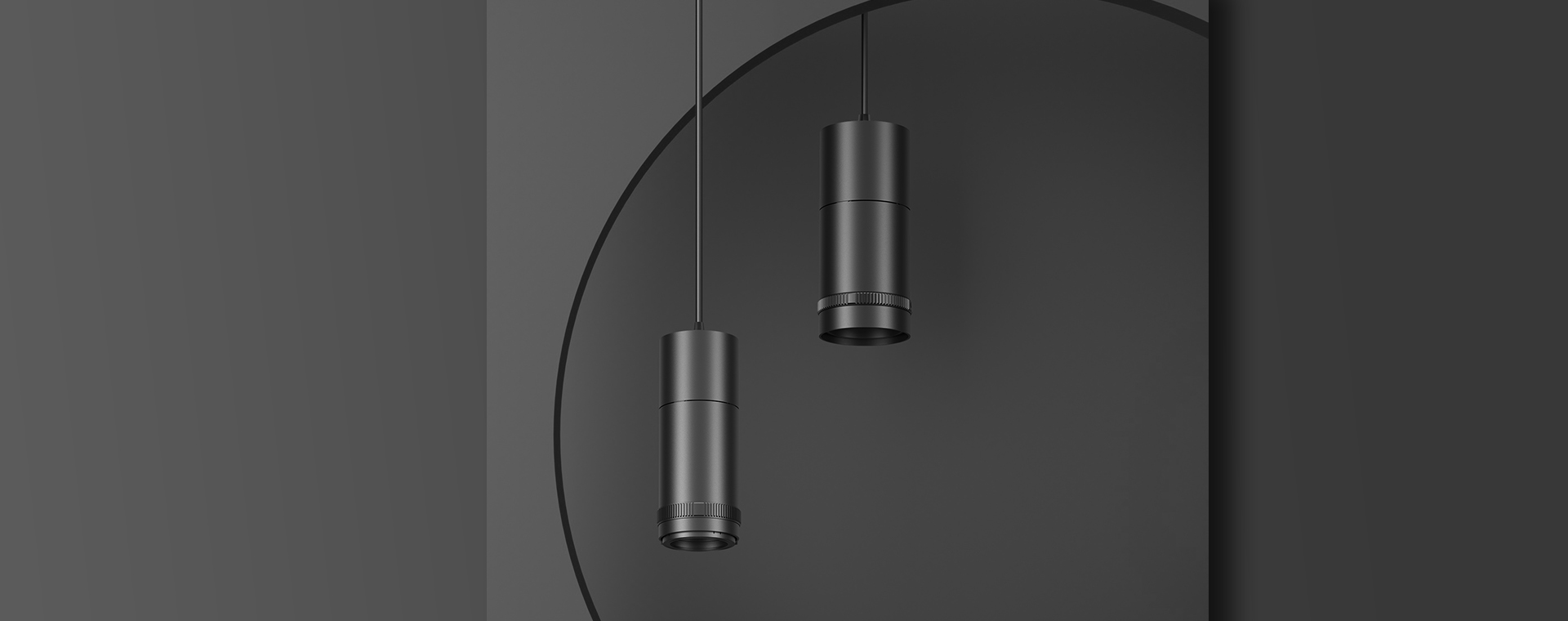

OVEGA Cylinder-Zoomable is a stylish and compact cylinder light that fits perfectly into any retail, museum and gallery setting. Its adjustable beam mechanism is designed to provide endless beam options from 10° narrow to 60° wide flood distribution. The light, as a result, is emitted exactly where you need it. The integrated driver gives clean feeling and avoids a cluttered ceiling caused by drivers pointing in different directions.

OVEGA-Zoomable Small LED Track lighting 10W-15W

Capable Zooming Performance

OVEGA Cylinder-Zoomable , the 3rd–generation ENCORE Zoomable luminaire, offers a wide angle adjusting range from 10° to 60° for various lighting effects such as accent lighting and flood lighting. It manages to realize ±5% accurate beam control. Moreover, the light quality remains outperforming at any angle when zooming.

OVEGA-Zoomable Small 10W-15W

Capable Rubber Metal Combo

Unlike the majority of zoomable cylinder light fixtures, OVEGA Zoomable adopts the rule-breaking combo of rubber + metal, which not only creates the similar exquisite appearance of digital camera, but also realizes camera-level artistic using pleasure, precise zooming adjustment, and careful heat protection. *on-request scale marking available

OVEGA-Zoomable Small 10W-15W

Capable Anti-glare Comfort

When most of the cylinder lights are satisfied with UGR<19, OVEGA Zoomable pushes the standard to the next level with 40-degree anti-glare angle and easy-to-install honeycomb filter, reducing UGR to under 16 to bring every user a high-level eye comfort.

OVEGA-Zoomable Small 10W-15W

Capable Modular Design

As the forerunner of track lighting system in China, OVEGA has well realized the modular design concept in each OVEGA product with 4 interchangeable installation bases. No matter which is your favorite, we make it possible all in the same system with the same unified design.

Imagine all the time, energy, and money saved from the exhausting hunting for "the one".

Specs

Features
Specsheet
Accessories

-Stylish and compact design with integrated driver.

-Excellent modular combination concept: integrated driver+ different fixture bases, DIY to get different lighting solutions and easy for maintenance.

-Beam angle adjustable mechanism provides endless beam options from a narrow to wide flood distribution by simply rotate the rubber ring.

-Light efficiency is up to 90lm/W.

-Use OVEGA family to get a unified impression in one environment.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
OR060Z	10W	250mA	620lm	90+	3000K	15°
OR060Z	10W	250mA	845lm	90+	3000K	40°
OR060Z	15W	350mA	757lm	90+	3000K	15°
OR060Z	15W	350mA	1084lm	90+	3000K	40°
OR080Z	20W	520mA	1090lm	90+	3000K	10°
OR080Z	20W	520mA	1365lm	90+	3000K	60°
OR080Z	25W	600mA	1232lm	90+	3000K	10°
OR080Z	25W	600mA	1484lm	90+	3000K	60°
OR080Z	30W	600mA	1911lm	90+	3000K	25°
OR080Z	30W	600mA	2043lm	90+	3000K	60°
