DELLA Adjustable Downlight 10W-15W

English

Home / Products / Downlight / DELLA Adjustable Downlight 10W-15W

Overview Specs

DELLA Adjustable Downlight 10W-15W

Products Specification:

Application: Recessed-mounted

SDCM: ≤3

Beam Angle: 15°, 24°, 36°, 50°

Power: 10W, 15W

Static White: 2700K, 3000K, 3500K, 4000K

Dim-to Warm: 1800K-3000K

Tunable White: 2700K-6000K

Full Spectrum: RGBCW

Line Drawing:

DELLA Adjustable Downlight 10W-15W

General Features:

DELLA Downlight 8W-10W

DELLA Adjustable Downlight 10W-15W

Accessories

DELLA Mini Downlight 5W-8W

Secondary Reflector

DELLA Downlight System

The DELLA Adjustable Downlight features a SHIFT-AXIS optical system that allows 5°-20° tilt adjustment with zero light loss or internal glare-even at full offset. Its smooth bearing-based mechanism delivers precise, click-confirmed positioning, while an optional lock screw prevents beam drift in high-vibration environments. Designed for visual comfort with a 50° cut-off angle, it is ideal for high-end commercial and residential spaces.

DELLA Adjustable Downlight 10W-15W

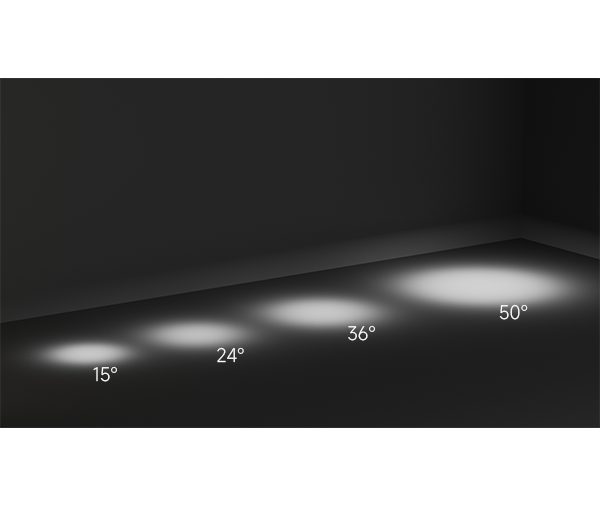

4 Beam Angle

Available in 15°, 24°, 36° and 50° beam angles, DELLA downlight allows enough flexibility for you to choose from accent lighting, flood lighting or general lighting no matter for small objects or big walls.

DELLA Adjustable Downlight 10W-15W

Precise Control of Light

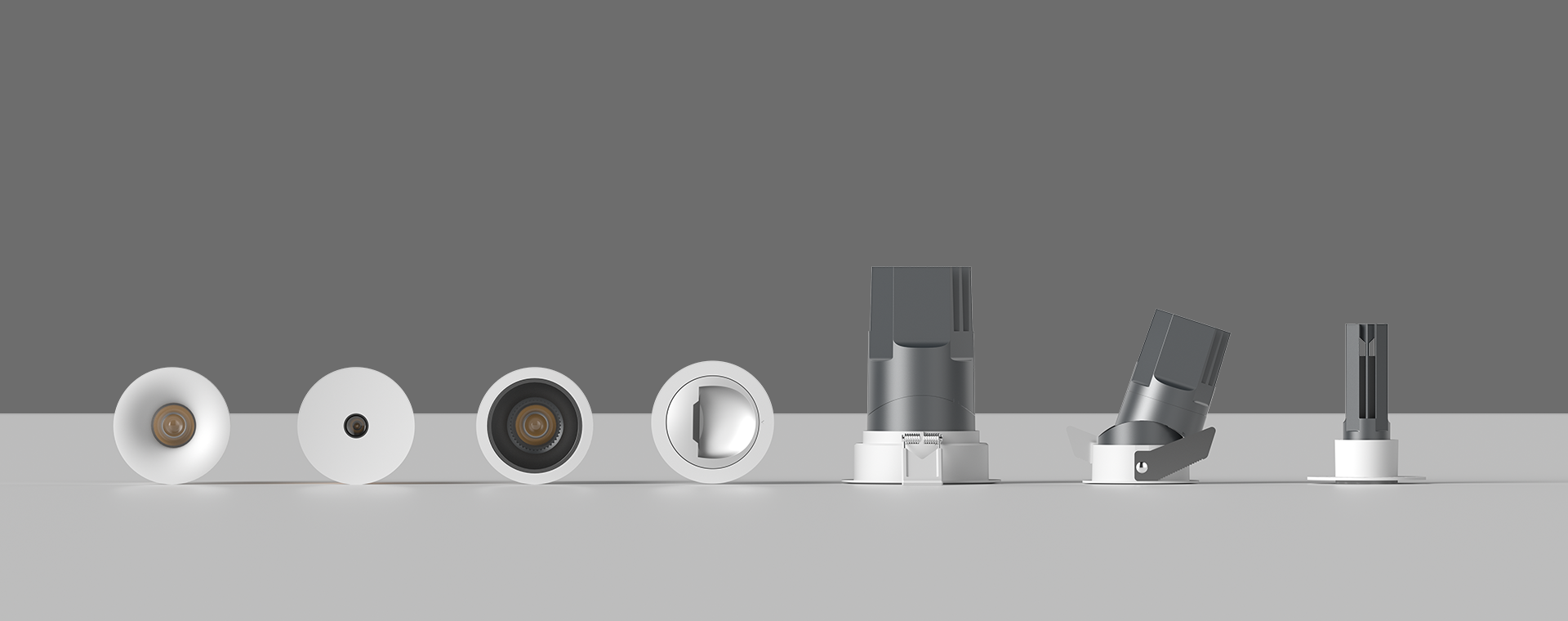

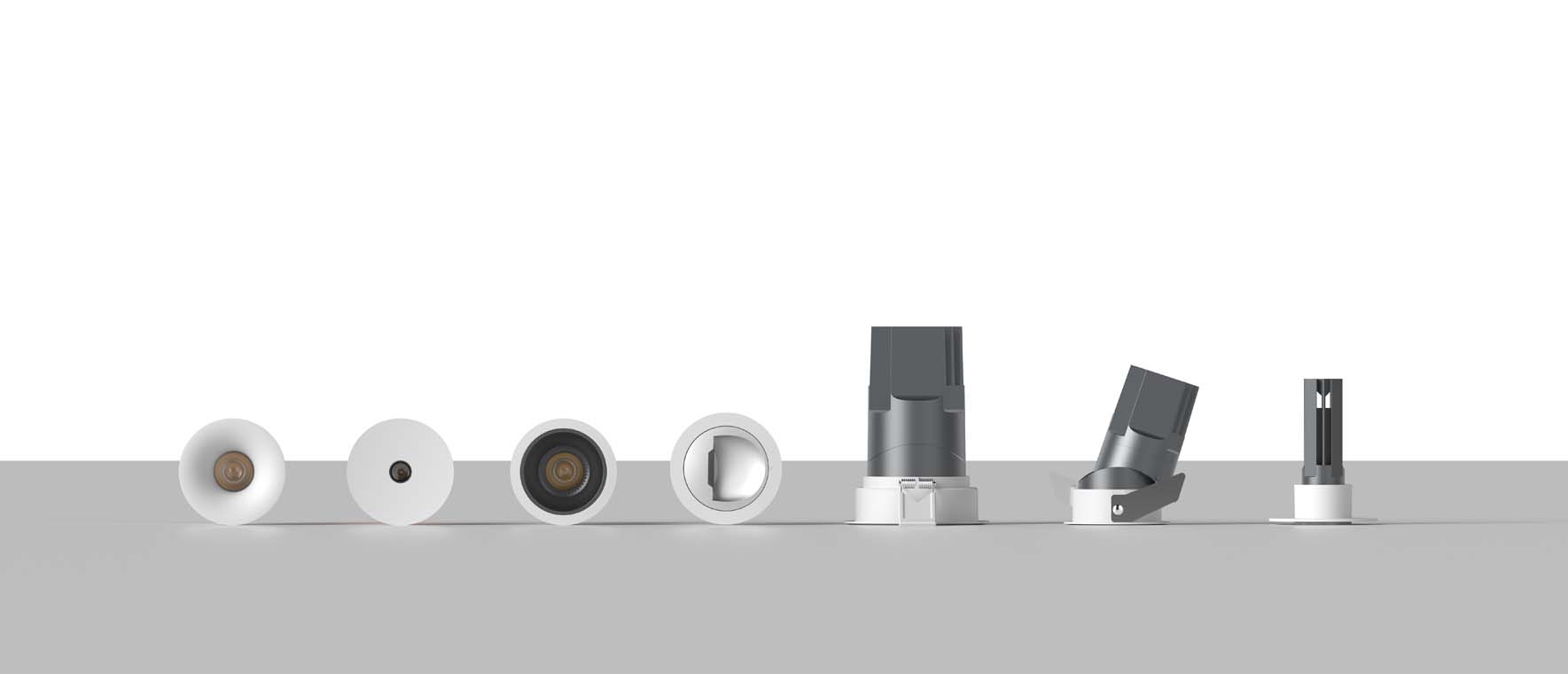

Four kinds of facial rings can be selected to create different light spot atmosphere and outstanding light shape. Optional oblique/direct/elliptical/small round holes.

DELLA Downlight 8W-10W

Shift-Axis Design With Zero Light Loss

The adjustment is always at pivot of light center to avoid being blocked for full distribution.

DELLA Downlight 8W-10W

Fully Enclosed Design

To ensure highest efficiency of distribution without light leakage even at tilt.

DELLA Adjustable Downlight 10W-15W

Precise Tiltable Adjustment

The light is precisly tiltable with scale and lock point.

DELLA Downlight 8W-10W

Pull Ring Design (Foldable)

No more hard work, pull out led engine in second.

DELLA Adjustable Downlight 10W-15W

Super Modular Design

Any parts could be replaced manually without tools

Specs

Features
Specsheet
Accessories

- Pure Shift-Axis Optics: Adjust 5°-20° with no light leakage, stray light or beamdistortion.

- Precision Click-Adjust: Bearing-assisted tilt with tactile and audible lockingfeedback

- Vibration-Resistant Lock: Optional screw secures aim in dynamic installations.

- 50°cut-off angle with excellent UGR performance for glare-free illumination.

- Super modular design allows any module tool-free replacement and maximizessimplicity for installation, removal, and maintenance under ceilings.

Order info.	Power	Luminous Flux(lm)	Max Candela(cd)	CRI	CCT	Beam Angle (°）
DM60-DF61RA01N	10W	827	5395	90+	3000K	15°
DM60-DF61RA01N	10W	760	3318	90+	3000K	24°
DM60-DF61RA01N	10W	805	1908	90+	3000K	36°
DM60-DF61RA01N	10W	831	1345	90+	3000K	50°
DM60-DF61RA01N	15W	760	6455	90+	3000K	15°
DM60-DF61RA01N	15W	936	5665	90+	3000K	24°
DM60-DF61RA01N	15W	914	2895	90+	3000K	36°
DM60-DF61RA01N	15W	884	1284	90+	3000K	50°
