DELLA Fixed Downlight 8W-10W

DELLA Fixed Downlight 8W-10W

Products Specification:

Application: Recessed-mounted

SDCM:≤3

Beam Angle: 15°, 28°, 36°, 42°(8W)

                           28°, 36°, 42°(10W)

Power: 8W, 10W

Static White: 2700K, 3000K, 3500K, 4000K

Dim-to Warm: 1800K-3000K

Tunable White: 2700K-6000K

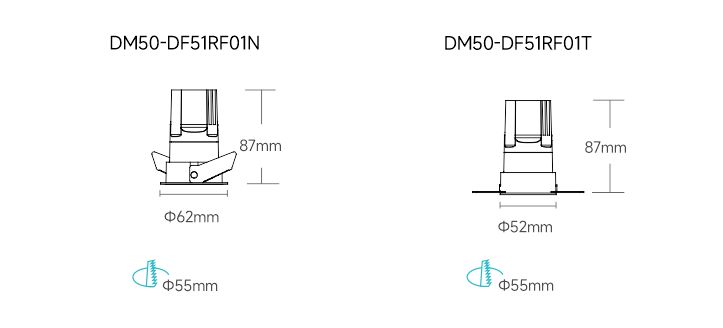

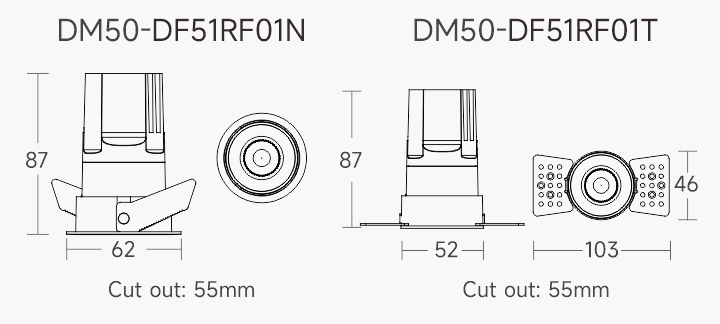

Line Drawing:

DELLA Fixed Downlight 8W-10W

General Features:

DELLA Downlight 8W-10W

DELLA Fixed Downlight 8W-10W


Accessories

DELLA Mini Downlight 5W-8W

DELLA Mini Downlight 5W-8W

Secondary Reflector

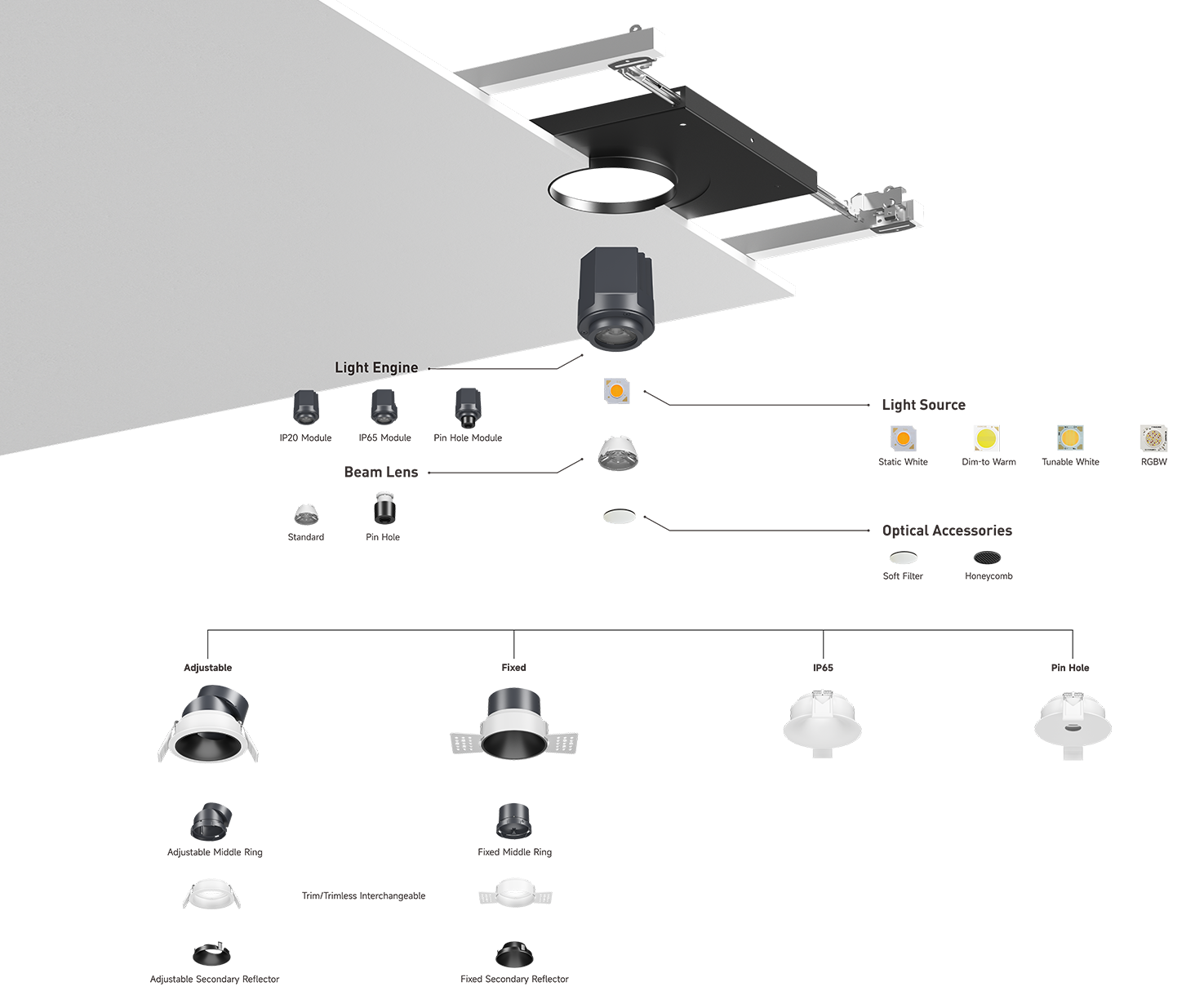

DELLA Downlight System

DELLA Fixed Downlight embodies the core of the DELLA 2.0 system-exceptional optical control and glare management in a clean, minimalist form. With its narrow bezel seamlessly integrating into the ceiling, it delivers visual comfort through a precise 45° cut-off angle and low UGR. Designed for longevity andflexibility, its tool-free modularity allows easy optical and LED enginere placement-making it a reliable, sustainable choice for commercial, hospitality,and residential environments where light quality and simplicity matter.


DELLA Fixed Downlight 8W-10W

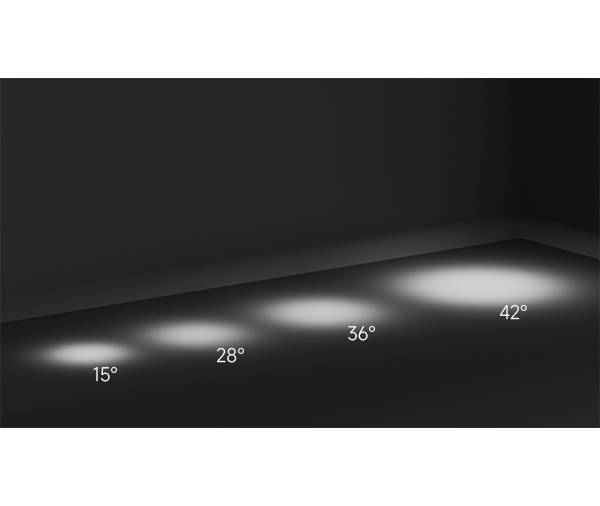

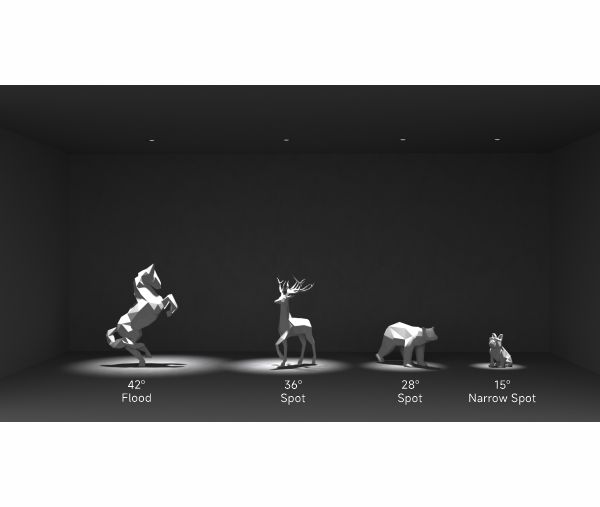

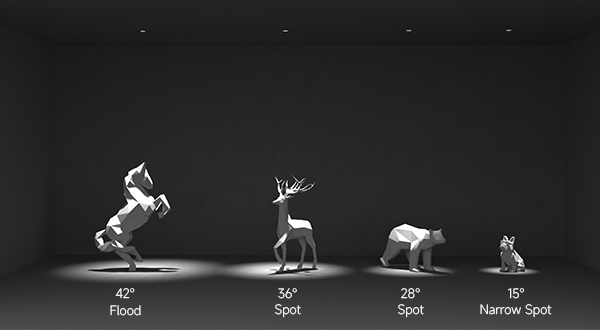

4 Beam Angle

Available in 15°, 28°, 36° and 42° beam angles, DELLA downlight allows enough flexibility for you to choose from accent lighting, flood lighting or general lighting no matter for small objects or big walls.


 DELLA Fixed Downlight 8W-10W

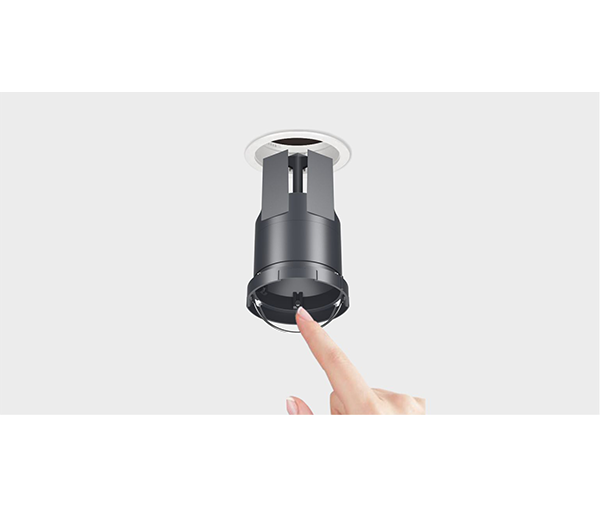

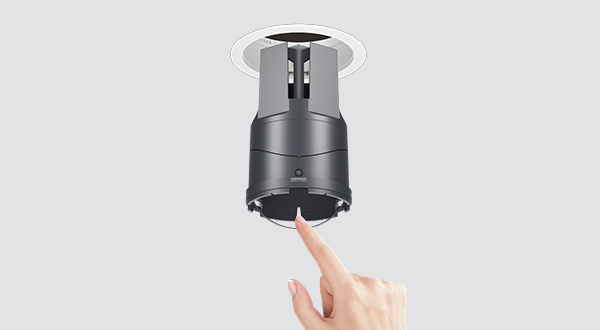

Pull Ring Design (Foldable)

No more hard work, pull out led engine in second.



 DELLA Downlight 8W-10W

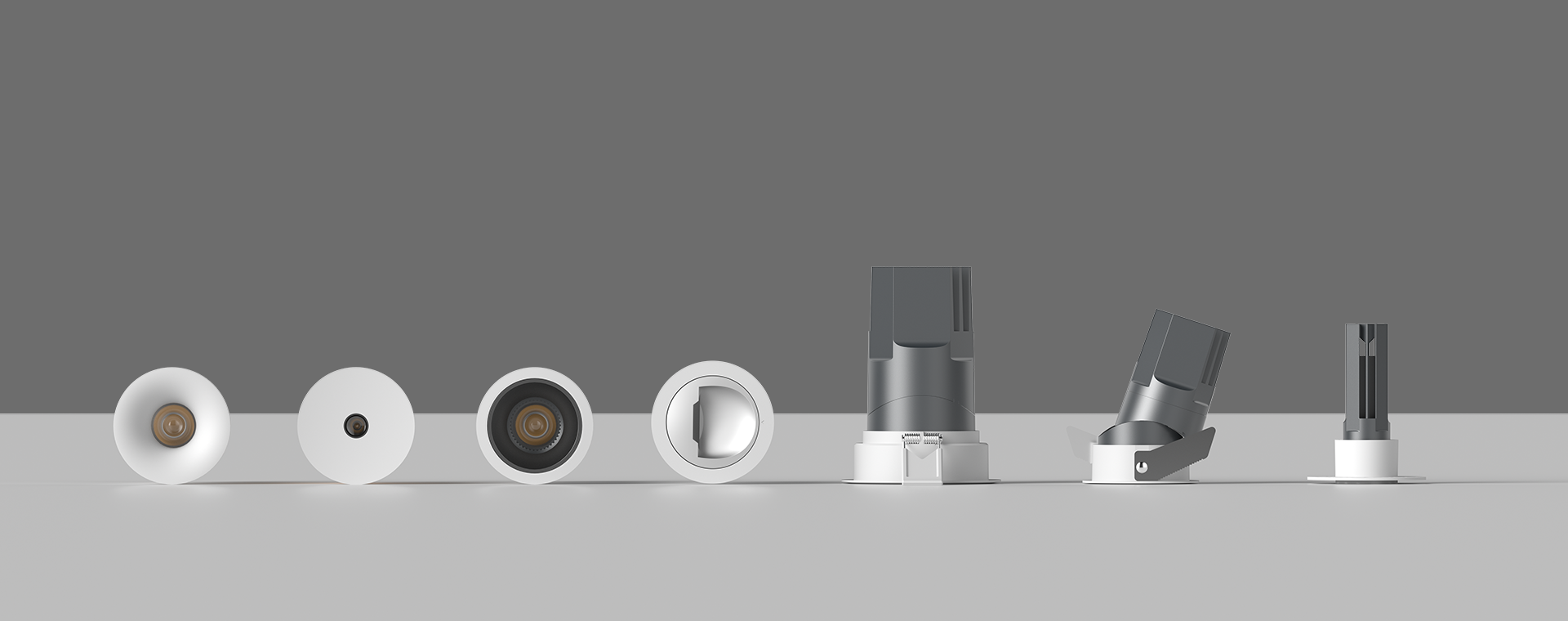

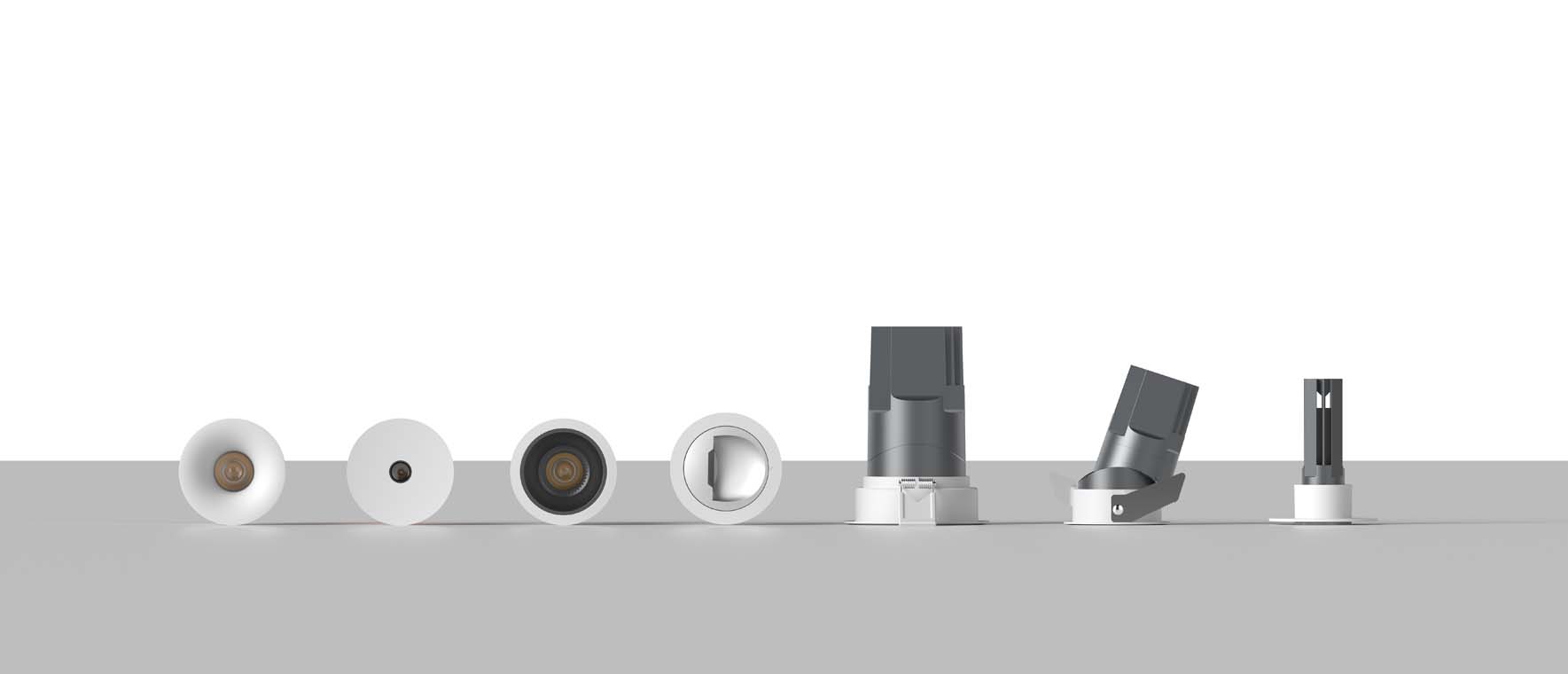

Super Modular Design

Any parts could be replaced manually without tools

Specs

- All optics and trims replaceable without tools; LED engine can be swapped independently for extended product life.


- Super modular design allows any module tool-free replacement and maximizes simplicity for installation, removal, and maintenance under ceilings.


- 45° cut-off angle with excellent UGR performance for glare-free illumination.


- Minimal bezel ensures a clean, integrated ceiling appearance.

Order info.PowerLuminous
Flux(lm)
Max Candela(cd)CRICCTBeam Angle
(°)
DM50-DF51RF01N8W470402390+3000K15°
DM50-DF51RF01N8W563225690+3000K28°
DM50-DF51RF01N8W567150390+3000K36°
DM50-DF51RF01N8W608131690+3000K42°
DM50-DF51RF01N10W715286490+3000K28°
DM50-DF51RF01N10W712191290+3000K36°
DM50-DF51RF01N10W771166590+3000K42°


ImageDescriptionModel NO#Available for

DELLA Mini Downlight 5W-8W

HoneycombDM50-HDM50
DELLA Downlight 10W-15W


Soft LensDM50-L

DM50
