AVA - Residential MR16 Modular Downlight 5-15W

AVA - Residential MR16 Modular Downlight 5-15W

videovideo

Products Specification:

Application:  Recessed-mounted

SDCM: <3

Beam Angle: 10°, 15°, 24°, 38°, 50°

Power: 5W, 8W, 10W, 15W

CCT: 2700K, 3000K, 4000K

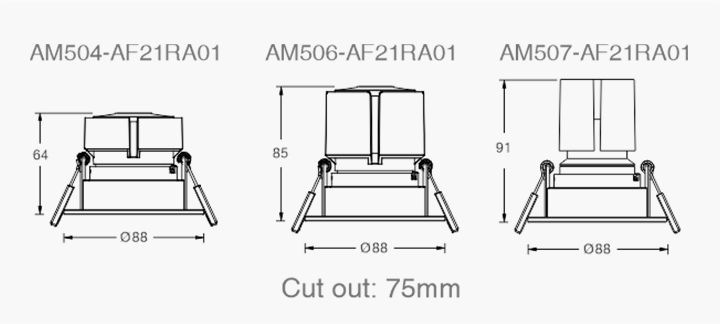

Line Drawing:

AVA - Residential MR16 Modular Downlight 5-15W

General Features:

Accessories


AVA-Residential Downlight

(The easiest way for halogen MR16 to modern LED!)

Ava-Residential series, it well integrated the excellent aesthetic appearance and extraordinary functions. Versatile spot lighting or accent lighting could be easily achieved by different mounting rings options with higher anti-glare function. Modular design with the mounting rings of Spot, Standard, Deep Frame, Narrow Trim plus adjustable or fixed options in various wattage, Ava-Residential series is a great choice to get a unified impression in one environment.





 AVA - Residential MR16 Modular Downlight 5-15W



5 Beam Angles

Available in 10°, 15°, 24°, 38° and 50° beam angles, Ava MR16 downlight allows enough flexibility for you to choose from accent lighting, flood lighting or general lighting no matter for small objects or big walls. Except the complete beam angles, it also provide 90lm/W efficacy with uniform light distribution to fill in every details of the space.


 AVA - Residential MR16 Modular Downlight 5-15W

Anti-glare

In the glare free angle, there is no direct view of the LED and the visible part of the reflector produces practically no glare at all. 38 degree cut-off angle offers very high visual comfort.


 AVA - Residential MR16 Modular Downlight 5-15W

Anti-glare Accessories

Honeycomb filter and soft lens can be added to provide maximum visual comfort.


 AVA - Residential MR16 Modular Downlight 5-15W

Modular Design Luminaire

Ava’s LED engine is designed with modular concept, everything is changeable except COB, support free DIY on optical lens and accessories. You can easily get a brand new luminaire by a quick and simple snap on of the LED module + mounting ring without any tools. Humanized modular design ensures fast delivery and low stock mangement cost.

 AVA - Residential MR16 Modular Downlight 5-15W

Diverse Mounting Rings

With various mounting rings in different cut-outs& low glare leverl& tiltable, Ava would be a great fit no matter for commercial or residential applications to offer precise directional spotlights for brilliant effects.Ava also compatible with the MR16, convenient to replacing from the conventional MR16, GU10 to the modern LED.


 AVA - Residential MR16 Modular Downlight 5-15W

Dim-to Warm

Dimmable luminaires can be operated using group dimmers,that makes them ideal for energy-efficient renovation of existing lighting installations which are equipped with this widely used dimmer technology.

Specs

-Ava50 module fits various custom mounting rings or any MR16 fittings for wide range of applications.


-Aesthetic in design, Small in size but high in wattage thanks to it’s efficient convection ventilation design heatsink.


-Uniform light distribution, light efficiency up to 90lm/W, 4 beam angles selectable(15, 24, 36, 50D).


-Dim-to Warm 1800K-3000K and single color 2700K to 5000K range with SDCM<3 high color consistency.


-Ava50 Module, mounting rings, optics and accessories, all in modular design to help customer to reduce stock.


-Variable Mounting rings with different cut-outs & low glare level & tiltable for choice.


None
None

Downloads

None
None
None

How can we support you?

Contact us for any information you need or for a quote, you can contact our sales team directly or complete the form below, we will reply you promptly.

Present your candidature

*Access exclusive offers, news, and more.

YES
NO

*COMMENTS

More About The AVA Family

Elegant MR16 compatible design, Ava was born to be versatile. The perfect thermal management ensures the high wattage in the smaller housing. Aesthetic design is not the only advantage of Ava, it’s 90lm/w efficacy with uniform light distribution also worth a mention. Except the single color 2700K to 5000K range, Ava also offers 1800K-3000K dim-to-warm create a SDCM<3; color consistency home-like atmospere to where it is needed. It complies with the modular design, everything is changeable except COB, well covered the commercial and residential applications. The performance of Ava is the ice of the cake on the aesthetic appearance.
