VILLA-Round Adjustable 5W-25W

VILLA-Round Adjustable 5W-25W

videovideo

Products Specification:

Application: Recessed-mounted

SDCM: <3

Beam Angle: 15°, 24°, 38°, 60°

Power: 5W, 10W, 18W, 25W

CCT: 2700K, 3000K, 4000K

Line Drawing:

VILLA-Round Adjustable 5W-25W

General Features:

Accessories

Secondary Reflector




VILLA-Round Adjustable

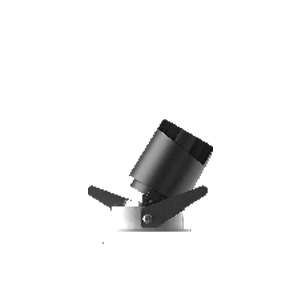

VILLA-Round Adjustable LED Downlight is outstanding for its elegant style and versatile application. It provides full range of adjustment with wattage from 5W to 25W in 4 sizes and 355° rotation as well as 30 ° tilt. It’s easy to be adjusted to specific angle thanks to the precisely engineered adjustment mechanism. Different interchangeable color secondary reflectors meet both anti-glare and decorative function, and provide the maximum level of visual comfort.


 VILLA-Round Adjustable 5W-25W

Precise Light Control

Four kinds of facial rings can be selected to create different light spot atmospheres and outstanding light shapes.

 VILLA-Round Adjustable 5W-25W



Beam Angle

VILLA Downlight provides 15°, 24°, 38° and 60° beam angles for your choice. Anti-glare accessories can also be added for better visual comfort.


 VILLA-Round Adjustable 5W-25W

High Visual Comfort

The glare-free angle ensures that there is no direct view of the LED and the visible part of the reflector produces practically no glare at all. This zone offers a high level of visual comfort.


 VILLA-Round Adjustable 5W-25W

355° Rotation

355° rotation allows light projection in the place you want it to be, and the raised bump design tells you when to stop the rotating, ensuring no wiring entanglement or short circuit is caused.


 VILLA-Round Adjustable 5W-25W

30° Tilt

Unlike other avergae tilt downlights, VILLA enables 10 ° precise tilt each time with the thoughtful tilting hole design.


 VILLA-Round Adjustable 5W-25W

Modular Design

The modular design is achieved with LED module, mounting ring and secondary reflector. It’s easy to customize, manage stock, install and do maintenance, and easy to change the secondary reflector.

 VILLA-Round Adjustable 5W-25W


Specs

-Elegant in its style, versatile in its using.

-Full range of adjustable downlight with wattages from 5W to 25W in 4 sizes.

-Easy to adjust to specific angle thanks to precision engineered adjustment mechanism.

-355° rotation and 30° tilt.

-Interchangeable different color secondary reflectors for anti-glare and decorative function.

-Anti-glare accessories provide maximum visual comfort.


Order info.PowerLed CurrentLuminous
Flux(lm)
CRICCTBeam Angle
(°)
VRA050-927N015W5W120mA208lm90+2700K15°
VRA050-927N024W5W120mA247lm90+2700K24°
VRA050-927N038W5W120mA212lm90+2700K38°
VRA075-927N015W10W250mA544lm90+2700K15°
VRA075-927N024W10W250mA548lm90+2700K24°
VRA075-927N038W10W250mA554lm90+2700K38°
VRA095-927N015W18W450mA1068lm90+2700K15°
VRA095-927N024W18W450mA1015lm90+2700K24°
VRA095-927N038W18W450mA994lm90+2700K38°
VRA095-927N024W18W450mA921lm90+2700K60°
VRA120-927N015W25W700mA1503lm90+2700K15°
VRA120-927N024W25W700mA1482lm90+2700K24°
VRA120-927N038W25W700mA1561lm90+2700K38°



ImageDescriptionModel NO#Available for
VILLA-Round Adjustable 5W-25WHoneycombVR050-HVRA050/TRA050
VRA075/TRA075
VRA095/TRA095
VRA120/TRA120
VILLA-Round Adjustable 5W-25WFlood soft lightVR075-FVRA075/TRA075
VRA095/TRA095
VRA120/TRA120
VILLA-Round Adjustable 5W-25WMdeium soft lightVR075-MVRA075/TRA075
VRA095/TRA095
VRA120/TRA120
VILLA-Round Adjustable 5W-25WSquare lightVR075-SVRA075/TRA075
VRA095/TRA095
VRA120/TRA120
VILLA-Round Adjustable 5W-25WRectangular lightVR075-RVRA075/TRA075
VRA095/TRA095
VRA120/TRA120



Downloads

Model Power Picture Download
VILLA-Round Adjustable 25W VILLA-Round Adjustable 5W-25W Download
Model Power Picture Download
VILLA-Round Adjustable 25W VILLA-Round Adjustable 5W-25W Download
Model Power Picture Download
VILLA-Round Adjustable 5W VRA050 CREE CRI90 3000K IESLDT
VILLA-Round Adjustable 10W VRA075 CREE CRI90 3000K IESLDT
VILLA-Round Adjustable 18W VRA095 CREE CRI90 2700K IESLDT
VILLA-Round Adjustable 25W VRA120 CREE CRI90 3000K IESLDT

How can we support you?

Contact us for any information you need or for a quote, you can contact our sales team directly or complete the form below, we will reply you promptly.

Present your candidature

*Access exclusive offers, news, and more.

YES
NO

*COMMENTS

More About The VILLA Family

VILLA is not only an aesthetic designed downlight, but also release high quality light thanks to combination of a precision light beam reflector and secondary reflector. 4 sizes with wattages from 5W to 25W plus adjustable version and fixed version, VILLA is truly a LED downlight system, can perfectly fit into any settings requiring quality light ranging from comercial, residential sites to hotels.
