FLEX-Standard 20W-25W

Products Specification:

Application: Track-mounted, Surface-mounted

SDCM: ＜3

Beam Angle: 15°, 24°, 38°, 60°

Power: 20W, 25W

CCT: 2700K, 3000K, 4000K, 5000K

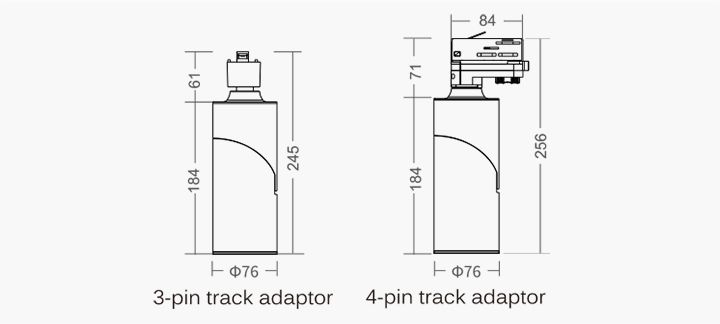

Line Drawing:

FLEX-Standard 20W-25W

General Features:

Frame Color

FLEX-Standard

(20W 25W)

FLEX-Standard is a stylish and slim foldable cylinder LED track light that fits perfectly into any retail, museum and gallery setting. Its various beam angles- 15°, 24°, 38°, and 60°- are all projected with negligible filed angle, realizing a better-than-average less-dispersed final lighting effect. The luminaire head swivels precisely horizontal 360°and vertical 90° without dead angle. The light, as a result, is emitted exactly where you need it.

FLEX-Standard 20W-30W

Premium Lighting Effect

FLEX-Standard offers premium light quality. The even light distribution and silky light effect remain unchanged in different beam angle options.

FLEX-Standard 20W-30W

Better Eye Comfort

The front ring is designed with multi-layer whorls, which could realize diffuse reflection for a higher level of eye comfort.

FLEX-Standard 20W-25W

Magic Magnet

The magic magnet, tiny as it is, secures the two foldable parts together as one perfect seamless cylinder track light when needed, and glows like a delicate diamond when unfolded, adding to the already charming glamour of FLEX.

FLEX-Standard 20W-30W

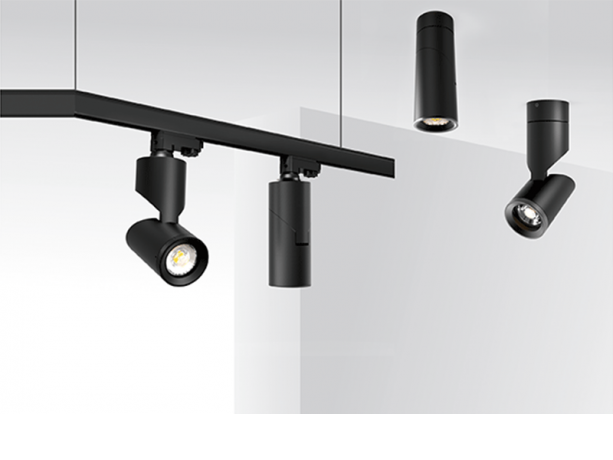

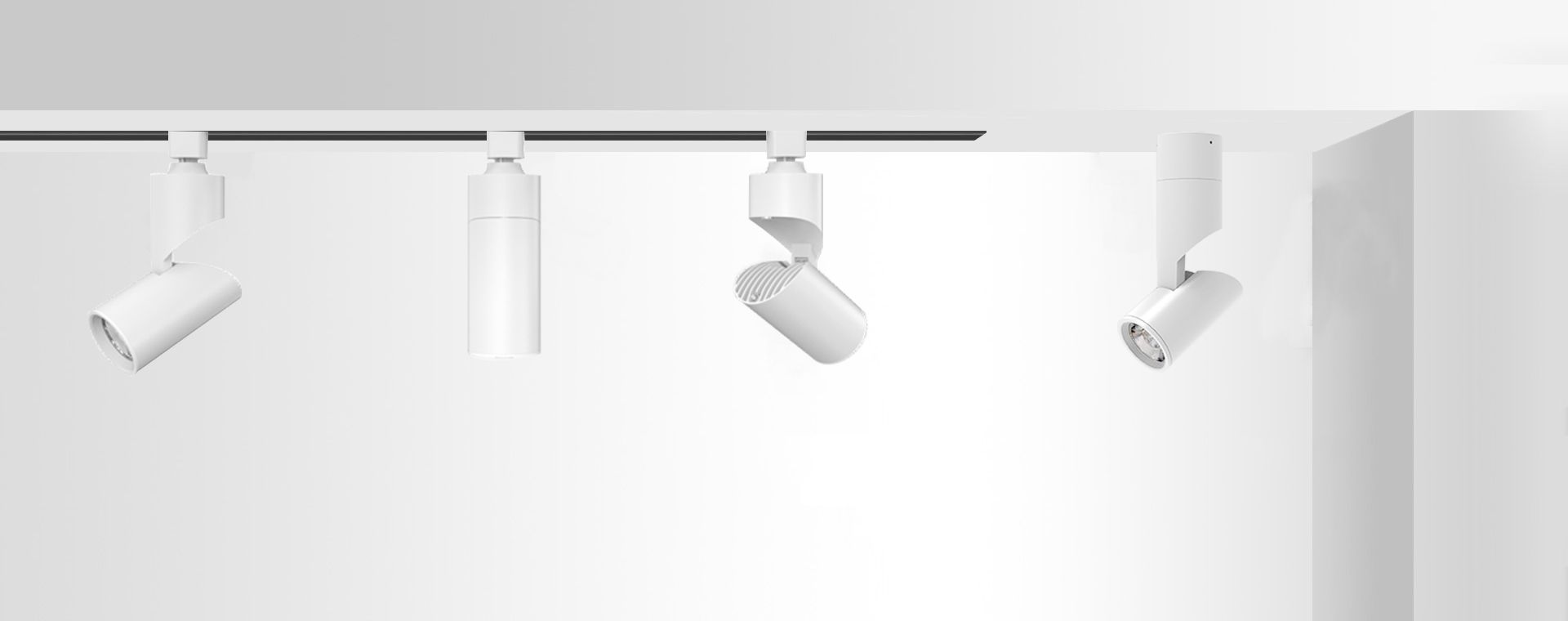

Different Installation Methods

FLEX track light family supports both on-track and surface-mounted installation, and surface-mounted FLEX obviously catches attention for its above-average flexibility: the whole luminaire swivels 355° horizontally just like when it’s on track, and the foldable part swivels 90° vertically, projecting the light in all directions. Therefore, FLEX is the right luminaire of many possibilities for the same space with different requirements.

Modehaus Laschober Store, Austria

Modehaus Laschober Store, Austria

Specs

Features
Specsheet
Accessories

-A sleek & elegant cylinder in foldable design,concise but not simple.

-Light efficiency is up to 90lm/W.

-Interchangeable lens: 15°, 24°, 40°, 60°.

-Privately-designed joints can hold the lights at any positions without malfunctions.

-Smart magnet can make fixture base and driver box seamless connested.

-360°+ rotation without dead angle and 90°vertical aiming.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
EN-TLF020-21-830N015B	20W	520mA	2164lm	80+	3000K	15°
EN-TLF020-21-840N015B	20W	520mA	2278lm	80+	4000K	15°
EN-TLF020-21-830N024B	20W	520mA	2268lm	80+	3000K	24°
EN-TLF020-21-840N024B	20W	520mA	2388lm	80+	4000K	24°
EN-TLF020-21-830N038B	20W	520mA	2281lm	80+	3000K	38°
EN-TLF020-21-840N038B	20W	520mA	2401lm	80+	4000K	38°
EN-TLF020-21-830N060B	20W	520mA	2114lm	80+	3000K	60°
EN-TLF020-21-840N060B	20W	520mA	2225lm	80+	4000K	60°
EN-TLF025-21-830N015B	25W	600mA	2332lm	80+	3000K	15°
EN-TLF025-21-840N015B	25W	600mA	2508lm	80+	4000K	15°
EN-TLF025-21-830N024B	25W	600mA	2453lm	80+	3000K	24°
EN-TLF025-21-840N024B	25W	600mA	2578lm	80+	4000K	24°
EN-TLF025-21-830N038B	25W	600mA	2462lm	80+	3000K	38°
EN-TLF025-21-840N038B	25W	600mA	2580lm	80+	4000K	38°
EN-TLF025-21-830N060B	25W	600mA	2321lm	80+	3000K	60°
EN-TLF025-21-840N060B	25W	600mA	2439lm	80+	4000K	60°

None

Downloads

Datesheet
Installation Manual
LDT/IES File

Model	Power	Picture	Download
TLF020-02	20W		Download

Model	Power	Picture	Download
TLF020-02	20W		Download

Model	Power	Picture	Download
TLF020-02	20W		IES LDT
TLF025-02	25W		IES LDT

How can we support you?

Contact us for any information you need or for a quote, you can contact our sales team directly or complete the form below, we will reply you promptly.

Present your candidature

More About The FLEX Family

Embrace many possibilities with FLEX family. Each of FLEX products is a realization of nice flexibility in a distinctive magnetic break-join structure design. Different versions of FLEX offer such different lighting solutions as fixed beam angles realized with interchangeable lens, and adjustable beam angle from 25°to 60°realized with adjustment structure, providing accent lighting, spot lighting, and flood lighting. Except for versatile lighting solutions, FLEX is also a system with different installation methods(on-track and surface-mounting). Therefore, for environments asking for different lighting solutions & installation methods, FLEX family will be a good choice with more possibilities in the unified impression.
