Hotel downlight fixtures

ELLA-Hotel Round Fixed 5W-35W

Products Specification:

Application: Recessed-mounted, Pendant

SDCM: ＜3

Beam Angle: 15°, 24°, 38°, 50°

Power: 5W, 8W, 10W, 15W, 20W, 25W, 30W, 35W

Static White: 2700K, 3000K, 3500K, 4000K

Dim-to Warm: 2000K-3000K

Tunable White: 2700K-6000K

Full Spectrum: RGBCW

Line Drawing:

ELLA-Hotel Round Fixed 5W-35W

General Features:

Accessories

AVA - Commercial MR16 Modular Downlight 5-15W

Secondary Reflector

ELLA-Hotel Round Fixed 5W-35W

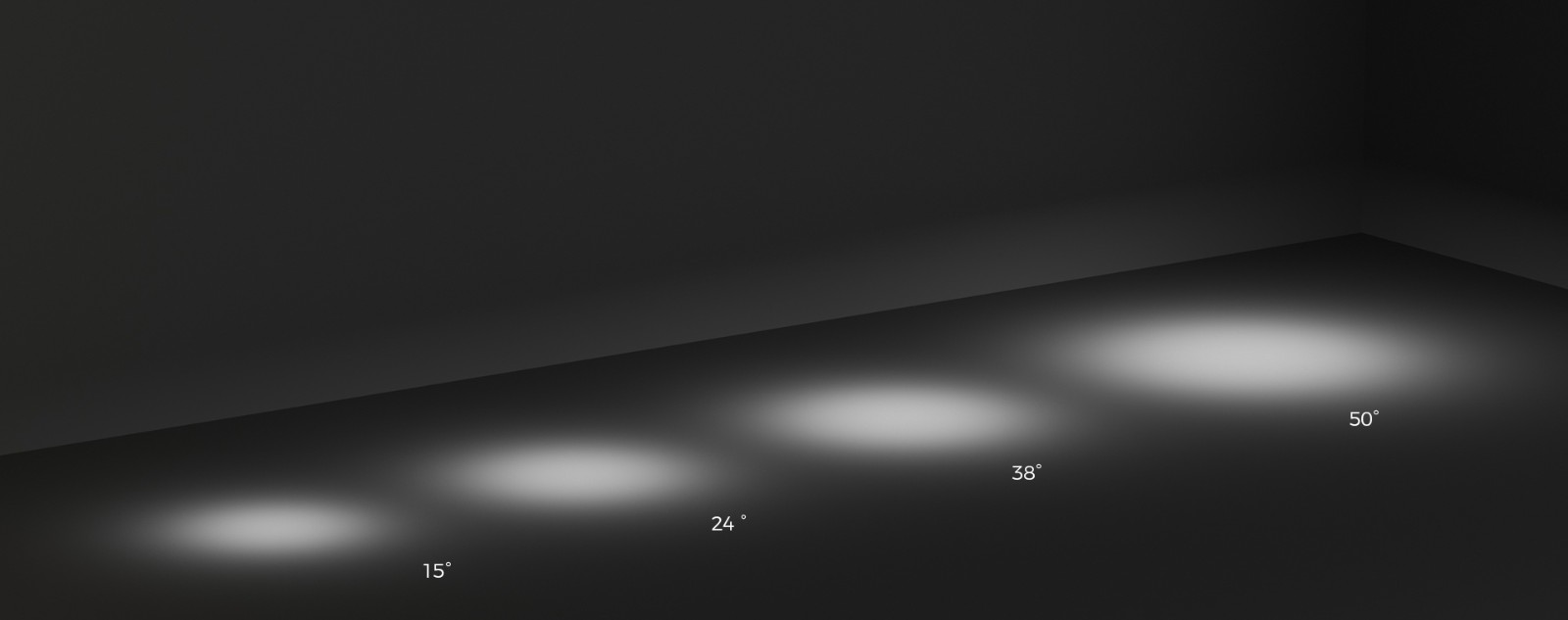

4 Beam Angles

Available in 15°, 24° , 38° and 50° beam angles, ELLA LED recessed downlight allows enough flexibility for you to choose from narrow beam on small objects requiring accent lighting to flood light on walls lacking general brightness. But no matter which angle is needed and where it is needed, one thing that remains the same is ELLA's high-level light quality and evenly blended light edge.

ELLA-Hotel Round Fixed 5W-35W

Above-average Anti-glare

ELLA's thoughtful design enlarges the cut-off angle to be 38°, which helps every user easily get rid of the annoying and damaging glare issue. Therefore, on one hand, ELLA brings a very high level of visual comfort, and on the other hand, it also realizes healthy lighting need, which is crucial especially for families with newborns, school-age children, and family members staring at screens a lot.

ELLA-Hotel Round Fixed 5W-35W

Anti-glare Accessories

In order to push the anti-glare effect further to a new level, ELLA is designed to be compatible with either honeycomb or soft lens, so that UGR could be minimized.

ELLA cares about every user's eye health very much.

ELLA-Hotel Round Fixed 5W-35W

Super Modular Luminaire

ELLA Hotel series has made itself super modular from inside out. You can easily make a brand new luminaire by a quick and simple twist of the LED module + mounting ring combos: round & square, trim & trimless, fixed & adjustable. All these infinite possibilities will make the luminaire fit right into any commercial, residential, and especially hospitality settings. Therefore, no matter the demanding customer is expecting an LED recessed downlight solution for his hotel, store, restaurant, high-end bathroom, or the sweet home, you can always say yes.

ELLA-Hotel Round Fixed 5W-35W

Ultra Easy Installation

ELLA's super modular design helps you wave farewell to the cost- and time-consuming installation work, and ring in the pleasant easy installation. With no tool needed at all, ELLA can be installed and taken out in seconds.

No more annoying dangling downlight fixtures, no more waiting for the electrician, and no more scratching on the fresh-paint ceiling.

-Elegant & compact in its style, versatile in its using.

-Precise light control, 15°, 24°, 38°, 50° beam lens options.

-Interchangeable different color secondary reflectors for aniti-glare and decorative function.

-Super modular design, replacing LED module, trims, beam lens, honeycomb filter and secondary reflectors without any needs for tools.

-355° rotation and 30° tilt.

-Anti-glare accessories provide maximum visual comfort.

-Service the LED optics and Driver from above the ceiling.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
EM050-EF51RF01-15D	5W	120mA	256 lm	90+	3000K	15°
EM050-EF51RF01-24D	5W	120mA	312 lm	90+	3000K	24°
EM050-EF51RF01-38D	5W	120mA	346 lm	90+	3000K	38°
EM050-EF51RF01-50D	5W	120mA	253 lm	90+	3000K	50°
EM050-EF51RF01-15D	8W	180mA	412 lm	90+	3000K	15°
EM050-EF51RF01-24D	8W	180mA	447 lm	90+	3000K	24°
EM050-EF51RF01-38D	8W	180mA	482 lm	90+	3000K	38°
EM050-EF51RF01-50D	8W	180mA	364 lm	90+	3000K	50°
EM060-EF61RF01-15D	10W	250mA	802 lm	90+	3000K	15°
EM060-EF61RF01-24D	10W	250mA	875 lm	90+	3000K	24°
EM060-EF61RF01-38D	10W	250mA	893 lm	90+	3000K	38°
EM060-EF61RF01-50D	10W	250mA	852 lm	90+	3000K	50°
EM060-EF61RF01-15D	15W	350mA	1059 lm	90+	3000K	15°
EM060-EF61RF01-24D	15W	350mA	1158 lm	90+	3000K	24°
EM060-EF61RF01-38D	15W	350mA	1124 lm	90+	3000K	38°
EM060-EF61RF01-50D	15W	350mA	1124 lm	90+	3000K	50°
EM070-EF71RF01-15D	20W	500mA	1494 lm	90+	3000K	15°
EM070-EF71RF01-24D	20W	500mA	1653 lm	90+	3000K	24°
EM070-EF71RF01-38D	20W	500mA	1670 lm	90+	3000K	38°
EM070-EF71RF01-50D	20W	500mA	1622 lm	90+	3000K	50°
EM070-EF71RF01-15D	25W	600mA	1652 lm	90+	3000K	15°
EM070-EF71RF01-24D	25W	600mA	1948 lm	90+	3000K	24°
EM070-EF71RF01-38D	25W	600mA	1944 lm	90+	3000K	38°
EM070-EF71RF01-50D	25W	600mA	1901 lm	90+	3000K	50°
EM090-EF91RF01-15D	30W	700mA	2450 lm	90+	3000K	15°
EM090-EF91RF01-24D	30W	700mA	2550 lm	90+	3000K	24°
EM090-EF91RF01-38D	30W	700mA	2608 lm	90+	3000K	38°
EM090-EF91RF01-50D	30W	700mA	2436 lm	90+	3000K	50°
EM090-EF91RF01-15D	35W	800mA	2770 lm	90+	3000K	15°
EM090-EF91RF01-24D	35W	800mA	2875 lm	90+	3000K	24°
EM090-EF91RF01-38D	35W	800mA	2904 lm	90+	3000K	38°
EM090-EF91RF01-50D	35W	800mA	2738 lm	90+	3000K	50°

Image	Description	Model NO#	Available for
	Honeycomb	EM050-H	EM050
	Soft Lens	EM050-L	EM050
	Honeycomb	EM060-H	EM060
	Soft Lens	EM060-L	EM060
	Honeycomb	EM070-H	EM070
	Soft Lens	EM070-L	EM070
	Honeycomb	EM090-H	EM090
	Soft Lens	EM090-H	EM090

Datesheet
Installation Manual
LDT/IES File

Model	Power	Picture	Download
EM050	7w		Download

Model	Power	Picture	Download
EM050	7w		Download

Model	Power	Picture	Download
EM050	7w		IES LDT
EM060	9W		IES LDT
EM070	25W		IES LDT
EM090	30W		IES LDT
EM090	35W		IES LDT

*Subscribe for new products.

YES

More About The ELLA Family

As the latest generation of ENCORE downlight system, ELLA has not only kept the aesthetic design, precise light control and great UGR, but also has upgraded the versatility to a new level with the super modular design in a compact format. ELLA's LED module matches with numerous mounting rings within the system, offering a wide range of options particularly for hospitality, residential, and any indoor commercial setting. On top of mounting rings, ELLA also provides many possibilities in shape, round or square; adjustment, fixed or adjustable; size and wattages.
