Manufacture Aimer Track Light

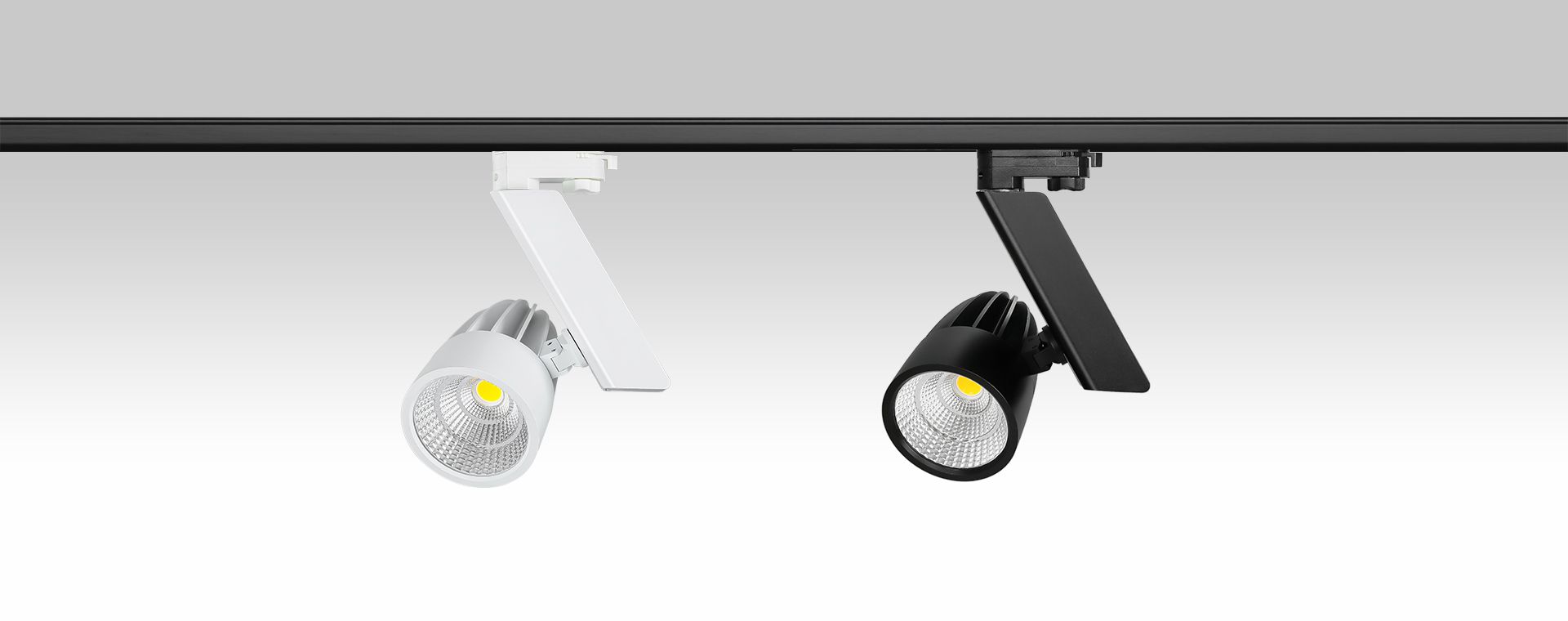

AIMER Track Light 25-35W

Products Specification:

Application: Track-mounted

SDCM: ＜3

Beam Angle: 15°, 24°, 38°, 60°

Power: 25W, 30W, 35W

CCT: 2700K, 3000K, 4000K, 5000K

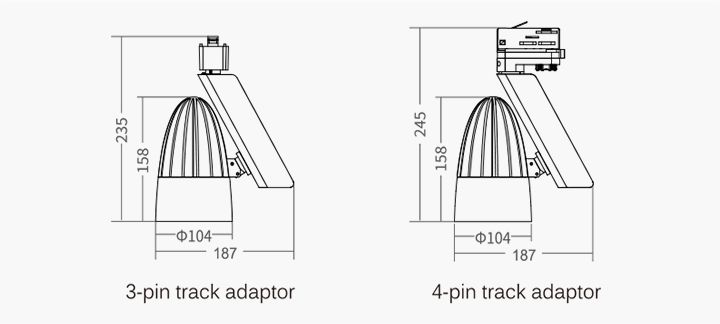

Line Drawing:

AIMER Track Light 25-35W

General Features:

OVEGA-Narrow Beam 10W

Accessories

OVEGA-Premium Small LED Track Light 10W-15W

Frame Color

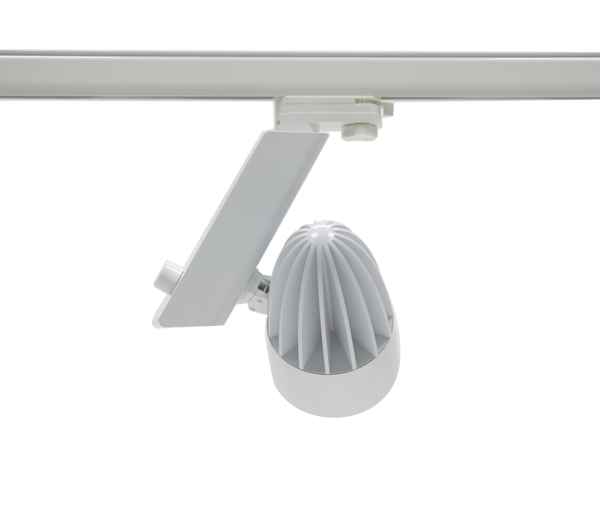

AIMER Track Light 25-35W

Great Light Quality

Available in 15°, 24° , 38° and 60° beam angles, AIMER allows enough flexibility from narrow beam to flood light. AIMER’s light effect remains even and smooth for every beam angle with high light efficiency >100lm/w.

AIMER Track Light 25-35W

Anti-glare Accessory

Honeycomb is available for better eye comfort. The push-lock structure saves the trouble of using tools, making life not only more comfortable but also easier.

AIMER Track Light 25-35W

Solid Practicality & Distinctive Appearance

Both the luminaire head and the whole luminaire could be swiveled 355°, projecting light in almost all directions. The separate driver design makes sure the balance of the luminaire is well maintained in all possible directions when adjusting position even on suspended track rail.

AIMER Track Light 25-35W

Satisfying Heat Dissipation

The combination of Al6063 and separate heat sink design brings out the best heat dissipation performance in AIMER, making sure it reaches up to 35W. The lifespan of the luminaire is also maximized because of the separation of driver and COB heat sink. AIMER has been one of the classic LED track lights of ENCORE since its rolling out with the record of zero customer complaint for 8 years in a row.

-Classic in style, Versatile in use.

-Light efficiency is up to 95lm/W.

-Interchangeable reflector:15°，24°，38°，60°.

-Support Triac, 1-10V and DALI dimming thanks to enough drive-box space in a unique design.

-Privately-designed joint can hold the track head at any positions without malfunctions.

-Rotating solution: 355° in horizontal, 355° in vertical.

-Self-dimming is available thanks to built-in dimmer(1-10V dimming).

-Can be equipped with anti-glare honeycomb filter.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
EN-TLA025-01-830N015B	25W	600mA	2299lm	80+	3000K	15°
EN-TLA025-01-830N015B	25W	600mA	2420lm	80+	4000K	15°
EN-TLA025-01-830N024B	25W	600mA	2321lm	80+	3000K	24°
EN-TLA025-01-830N024B	25W	600mA	2444lm	80+	4000K	24°
EN-TLA025-01-830N038B	25W	600mA	2385lm	80+	3000K	38°
EN-TLA025-01-830N038B	25W	600mA	2511lm	80+	4000K	38°
EN-TLA025-01-830N060B	25W	600mA	2335lm	80+	3000K	60°
EN-TLA025-01-830N060B	25W	600mA	2458lm	80+	4000K	60°
EN-TLA030-01-830N015B	30W	730mA	2976lm	80+	3000K	15°
EN-TLA030-01-830N015B	30W	730mA	2943lm	80+	4000K	15°
EN-TLA030-01-830N024B	30W	730mA	2837lm	80+	3000K	24°
EN-TLA030-01-830N024B	30W	730mA	2986lm	80+	4000K	24°
EN-TLA030-01-830N038B	30W	730mA	2919lm	80+	3000K	38°
EN-TLA030-01-830N038B	30W	730mA	3073lm	80+	4000K	38°
EN-TLA030-01-830N060B	30W	730mA	2834lm	80+	3000K	60°
EN-TLA030-01-830N060B	30W	730mA	2983lm	80+	4000K	60°
EN-TLA035-01-830N015B	35W	850mA	3186lm	80+	3000K	15°
EN-TLA035-01-830N015B	35W	850mA	3354lm	80+	4000K	15°
EN-TLA035-01-830N024B	35W	850mA	3224lm	80+	3000K	24°
EN-TLA035-01-830N024B	35W	850mA	3394lm	80+	4000K	24°
EN-TLA035-01-830N038B	35W	850mA	3262lm	80+	3000K	38°
EN-TLA035-01-830N038B	35W	850mA	3434lm	80+	4000K	38°
EN-TLA035-01-830N060B	35W	850mA	3195lm	80+	3000K	60°
EN-TLA035-01-830N060B	35W	850mA	3364lm	80+	4000K	60°

None

Datesheet
Installation Manual
LDT/IES File

Model	Power	Picture	Download
TLA025-01	25W		Download

Model	Power	Picture	Download
TLA025-01	25W		Download

Model	Power	Picture	Download
TLA025-01	25W		IES LDT
TLA030-01	30W		IES LDT
			IES LDT
