IMAX-Standard 15W-30W

IMAX-Standard 15W-30W

videovideo

Products Specification:

Application: Track-mounted, Wall-mounted

SDCM: <3

Beam Angle: 15°, 24°, 38°, 60°

Power: 15W, 20W, 30W

CCT: 2700K, 3000K, 4000K, 5000K

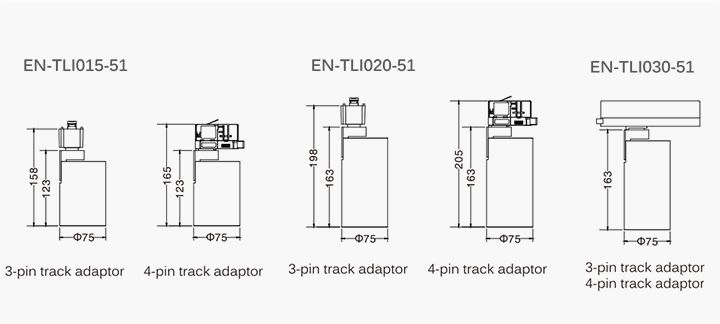

Line Drawing:

IMAX-Standard 15W-30W

General Features:

Accessories

Frame Color


IMAX-Standard

(20W 25W 30W)

IMAX-Standard track lights are slim and clean LED track lights that fit perfectly into any retail, gallery, and places hoping for a minimalist impression. All of the 3 versions have understood well the idea of "less is more". Therefore, not a single visible screw can be found on the surface, which makes them a super star especially for high-end projects. But IMAX-Standard series doesn't just have a nice appearance, the high lumen efficiency(>100lm/W) and versatile optical accessories are also the highlights that have won themselves quite a number of loyal customers. The luminaire head swivels precisely horizontal 360°and  vertical 90° without dead angle. The light, as a result, is emitted exactly where you need it. The integrated driver gives clean feeling and avoids a cluttered ceiling caused by drivers pointing in different directions.





 IMAX-Standard 15W-30W

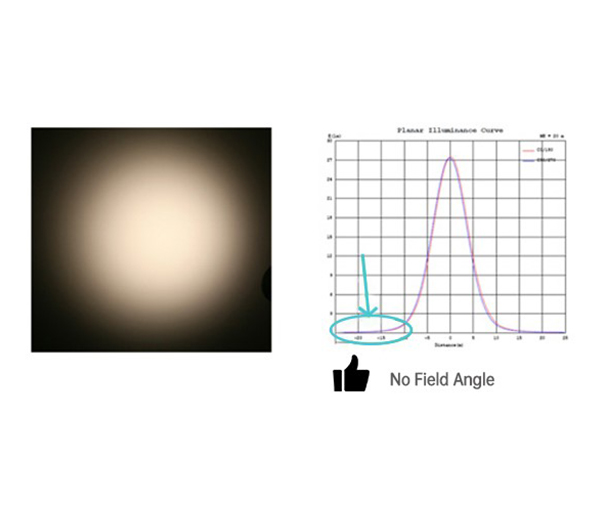

What does an IMAX light look like?

The light emitting from every IMAX remains at a very satisfactory level for its good structure design and quality component selection. Therefore, they all share the same characteristics of negligible filed angle, evenly distributed light area, stable& smooth central light intensity, and untraceable light edge.

 IMAX-Standard 15W-30W

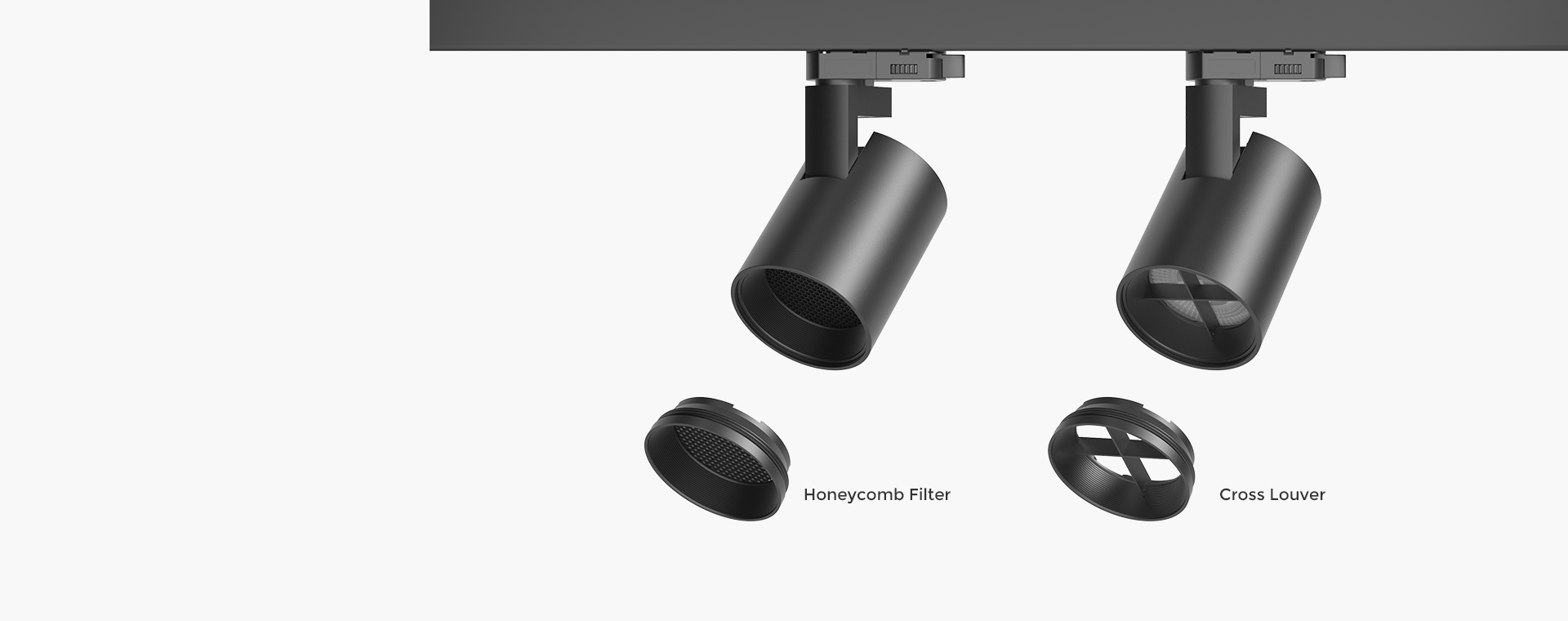

Anti-glare Accessory Options

IMAX Standard offers 2 such different anti-glare accessory options as honeycomb and cross louve. Tastes differ, but IMAX Standard always has one more choice for you.Also, every one of them allows tool-free twist-on-off installation. Your dexterous hands are good enough.

 IMAX-Standard 15W-30W

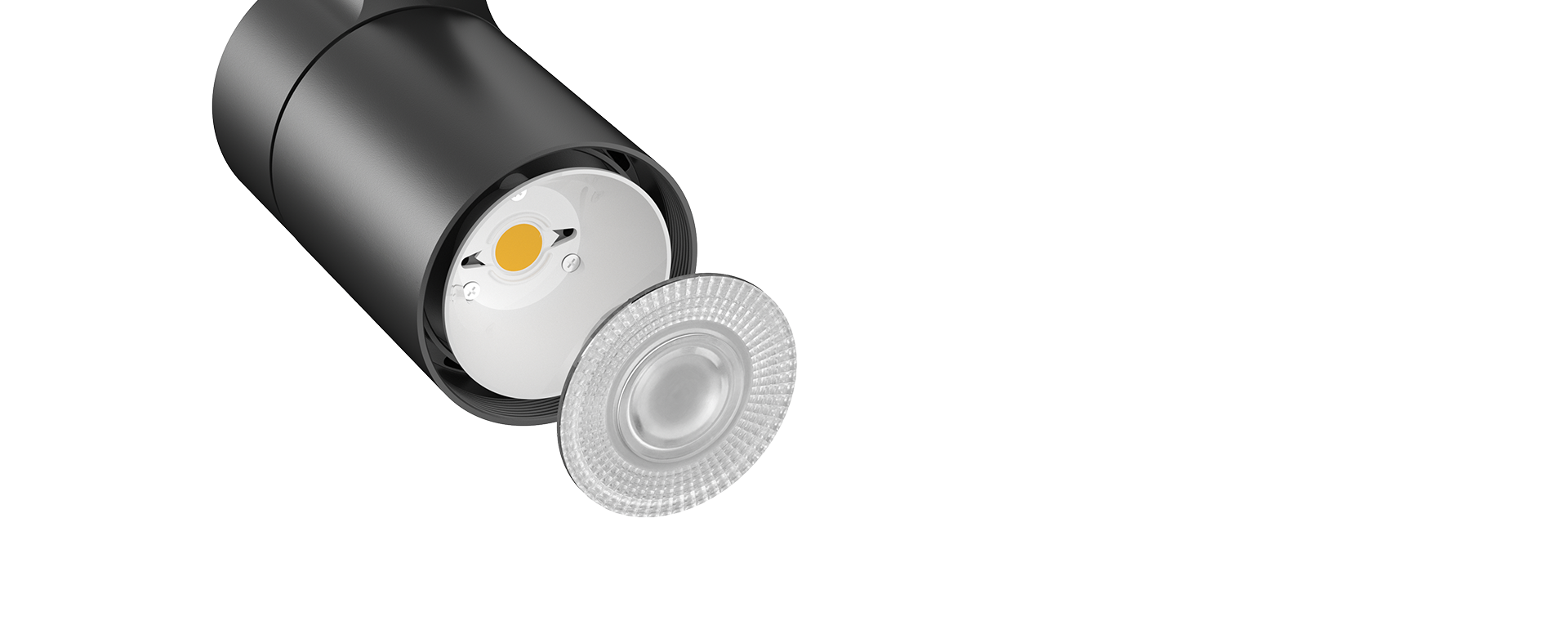

ENCORE Private LED Holder

What does ENCORE Private LED holder have to offer:Perfect size & shape matching with CITIZEN, CREE, LUMINUMS, PHILIPPS COB LED;User-friendly & positioning-free lens replacement;Total 2% lumen increase by the smooth PC surface of LED holder.

 IMAX-Standard 15W-30W



Minimalist Design

As important as they are, screws can be a little "less wanted" for aesthetic purpose. Therefore, IMAX Standard series has made screws disappeared on the visible surface, leaving only a simple, clean, and elegant appearance for customers.

Specs

-Slim and clean design with adaptor driver.


-Light efficiency is up to 100lm/W.


-Interchangeable lens: 15°, 24°, 38°, 60°.


-Can be dressed in honeycomb filter and cross louve to enhance the visual quality, reduce glare.


-Privately-designed joints can hold the track head at any positions without malfunctions.


-360°+ rotation without dead angle and 90°vertical aiming.


Order info.PowerLed CurrentLuminous
Flux(lm)
CRICCTBeam Angle
(°)
EN-TLI015-51-830N015W15W350mA1418lm80+3000K15°
EN-TLI015-51-830N024W15W350mA1514lm80+3000K24°
EN-TLI015-51-830N038W15W350mA1532lm80+3000K38°
EN-TLI015-51-830N060W15W350mA1371lm80+3000K60°
EN-TLI020-51-830N015W20W500mA1940lm80+3000K15°
EN-TLI020-51-830N024W20W500mA2069lm80+3000K24°
EN-TLI020-51-830N038W20W500mA2076lm80+3000K38°
EN-TLI020-51-830N060W20W500mA1855lm80+3000K60°
EN-TLI030-51-830N015W30W700mA2488lm80+3000K15°
EN-TLI030-51-830N024W30W700mA2701lm80+3000K24°
EN-TLI030-51-830N038W30W700mA2720lm80+3000K38°
EN-TLI030-51-830N060W30W700mA2438lm80+3000K60°





IMAX Standard 20WHoneycomb FilterEN-TLI-AC03IMAX-Standard 20W
IMAX Standard 20WCross LouverEN-TLI-AC04IMAX-Standard 20W



Downloads

Model Power Picture Download
TLI020-51 20W IMAX - Standard 20W Download
Model Power Picture Download
TLI020-51 20W IMAX - Standard 20W Download
Model Power Picture Download
TLI020-51 20W IMAX - Standard 20W IESLDT

How can we support you?

Contact us for any information you need or for a quote, you can contact our sales team directly or complete the form below, we will reply you promptly.

Present your candidature

*Access exclusive offers, news, and more.

YES
NO

*COMMENTS

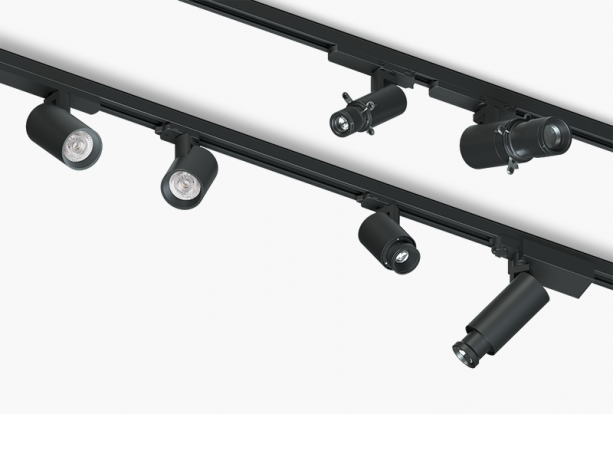

More About The IMAX Family
