IMAX-Projector 10-20W

IMAX-Projector 10-20W

videovideo

Products Specification:

Application: Track-mounted, Wall-mounted

SDCM: <3

Beam Angle: 21°-34°, 18°-30°, 27°-42°

Power: 10W, 20W

CCT: 2700K, 3000K, 4000K, 5000K

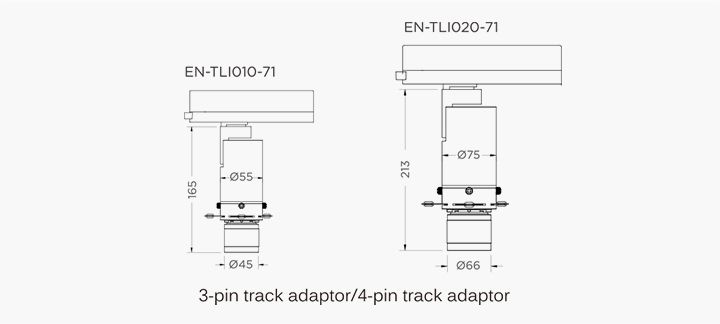

Line Drawing:

IMAX-Projector 10-20W

General Features:

Frame Color


IMAX-Projector

(10-20W)

IMAX-Projector is a slim and functional LED track light that fits perfectly into any high-end museum, gallery setting and places looking for luminaires with great performance and appearance at the same time. Its adjustable beam and framing patterns mechanism provide different light spot sizes and shapes. The luminaire head swivels precisely horizontal 360° and  vertical 90° without dead angle. The light, as a result, is emitted exactly where you need it. The integrated driver gives clean feeling and avoids a cluttered ceiling caused by drivers pointing in different directions.





 IMAX-Projector 10-20W



Professional Art Museum Contour Projector

IMAX-Projector is considered as a professional art museum contour projector & gallery contour spotlight. It is designed with accurate lighting effects for objects requiring above-average lighting projection, especially art pieces. IMAX Projector realizes a brand new lighting mode with high transparency optical lens and advanced optical aperture imaging technique. The final projection effect, therefore, is precise, bringing the static art exhibition to life.

Color filters and customized logo patterns are available.

 IMAX-Projector 10-20W

UGR<6

No Spilt Light

No Stray Light

When museum and art lovers take a moment in front of the art pieces, they wish to see only the art itself without disruption. IMAX Projector uses well-designed optical system and precision optical lens to maximize light beam collection in the dim and dark environment, making sure that there's no spilt light nor stray light, so that proper attention could be given only to the exhibits.

In the mean while, IMAX Projector reduces UGR to less than 6, giving enough attention to the exhibit while maintaining a high-level visual comfort.

 IMAX-Projector 10-20W

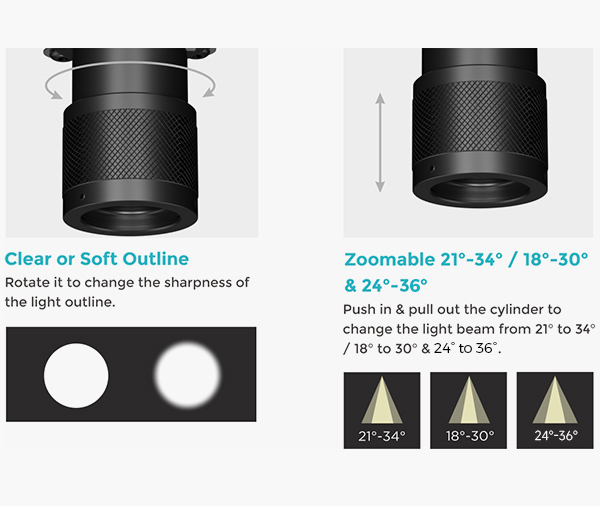

Precise Light Control

The camera-like front lens allows users to pull and push for different beam angles from narrow 18° to wider 30° form distance. So it could draw people's attention only to the amazing details of the art pieces or help viewers see the big picture.

On the other hand, the camera-like front lens also could be turned from side to side for either clear-cut edge for a futuristic sense or soft vague edge for a gentle and romantic sense.

With the easy transformation between sharp and blurry, IMAX Projector is able to offer lighting solutions to different settings and meet different needs.

 IMAX-Projector 10-20W

Framing for Different Light Shapes

In order to have various lighting shapes, the framing blades could be pushed and pulled to create unique shapes according to the exhibit.

IMAX Projector has installed adjustable diaphragm to add to its flexibility. Therefore, the actual angle could be further controlled to 3° for a 100% attention on the object. The adjustment of the diaphragm is enjoyable with the light texture and smooth round adjusting bar.

 IMAX-Projector 10-20W

LOGO Projection

LOGO of any kind can be added for a projection of uniqueness. Color filters can also be used for a more vivid exhibition.

LOGO and filters installation/removal is quite simple by locking the LOGO or filters under the circle holder.

 IMAX-Projector 10-20W



Minimalist Design

As important as they are, screws can be a little "less wanted" for aesthetic purpose. Therefore, IMAX Projector has made screws disappeared on the visible surface, leaving only a simple, clean, and elegant appearance for customers.

Specs

-Tailor-made contour projector for high-end museums & galleries thanks to it’s precise light control.


-Designed for sharp-focused or soft-focused projection of a light field.


-A set of four framing blades bring sharp-edged or soft edged, high-contrast square & triangle light shape at user’s convenience.


-Logo projection, customized logo can be projected at your request.


-Privately-designed joints can hold the track head at any positions without malfunctions.


-360°+ rotation without dead angle and 90°vertical aiming.


-An adjustable beam (21°-34°/18°-30°&27°-42°)can be switched to 3°-45° by using the iris diaphgram;




None

Downloads

Model Power Picture Download
TLI020-71 20W IMAX-Projector 20W Download
None
Model Power Picture Download
TLI020-71 20W IMAX-Projector 20W IESLDT
