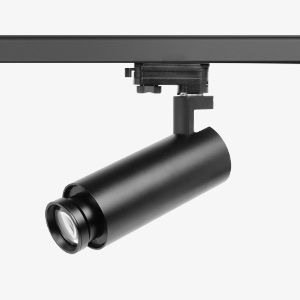

IMAX-Zoomable 15W-20W

Products Specification:

Application: Track-mounted, Wall-mounted

SDCM: ＜3

Beam Angle: 10°-70°, 15°-70°

Power: 15W, 20W, 30W

CCT: 2700K, 3000K, 3500K, 4000K

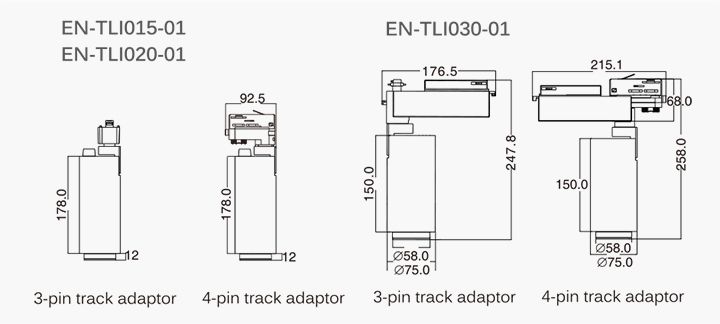

Line Drawing:

IMAX-Zoomable 15W-20W

General Features:

IMAX-Zoomable 10W-15W

OVEGA-Narrow Beam 10W

Accessories

OVEGA-Premium Small LED Track Light 10W-15W

IMAX-Zoomable 10W-15W

Frame Color

IMAX-Zoomable

(15W 20W 30W)

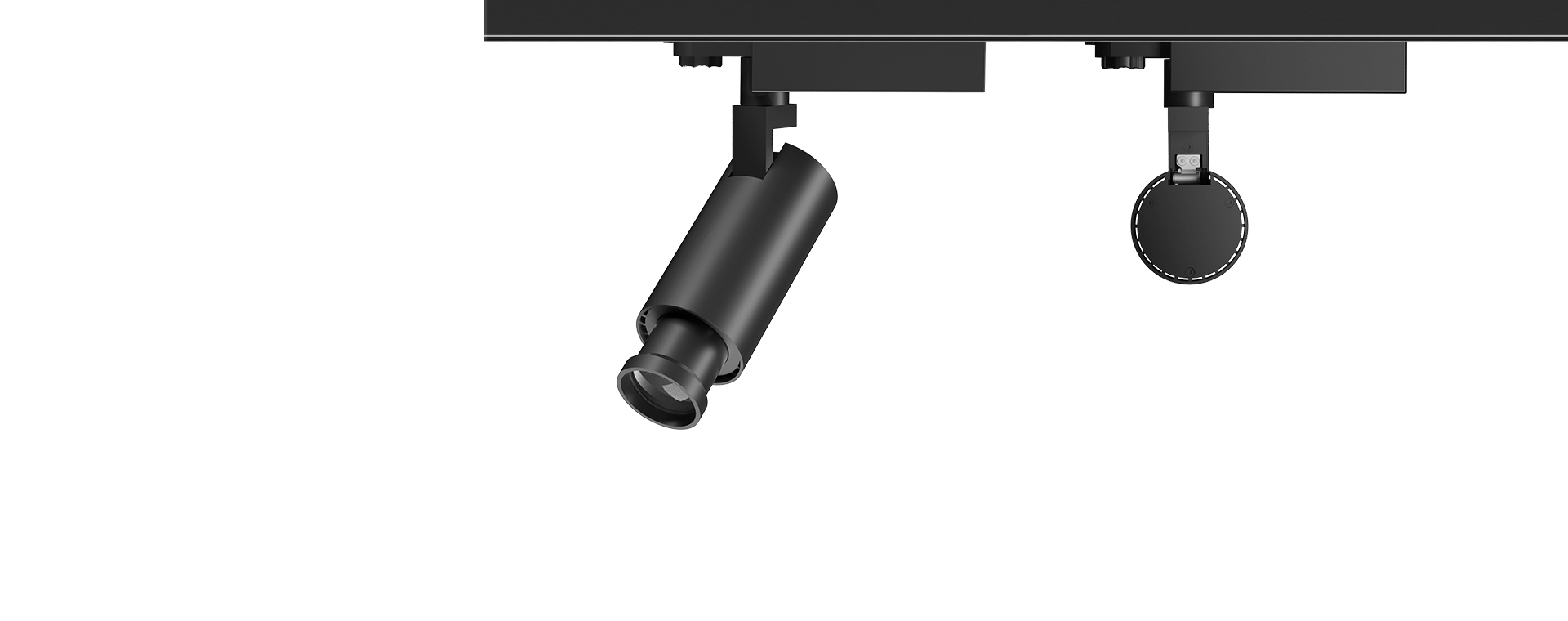

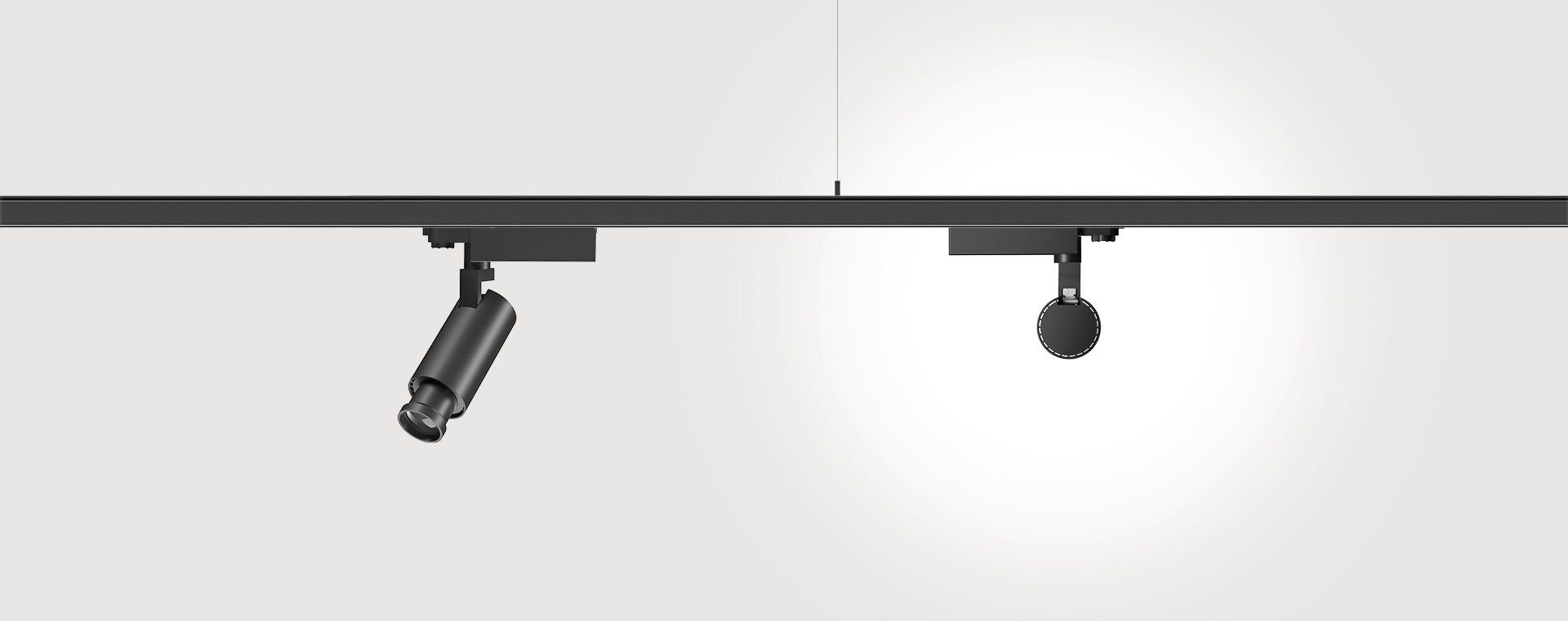

IMAX-Zoomable track lights are slim and clean LED track lights that fit perfectly into any museum, gallery, and places hoping for a minimalist impression. The two classic zoomable LED track lights both have highlights and key features such as precise light control, even light distribution, and fine adjusting experience. The two versions of zoomable allow flexible beam adjustment from 15°-70°(soft) to 10°-70°(sharp), easily covering almost all the lighting needs of various settings. The luminaire head swivels precisely horizontal 360°and vertical 90° without dead angle. The light, as a result, is emitted exactly where you need it. The integrated driver gives clean feeling and avoids a cluttered ceiling caused by drivers pointing in different directions.

IMAX-Zoomable 15W-20W

Capable Zooming Performance

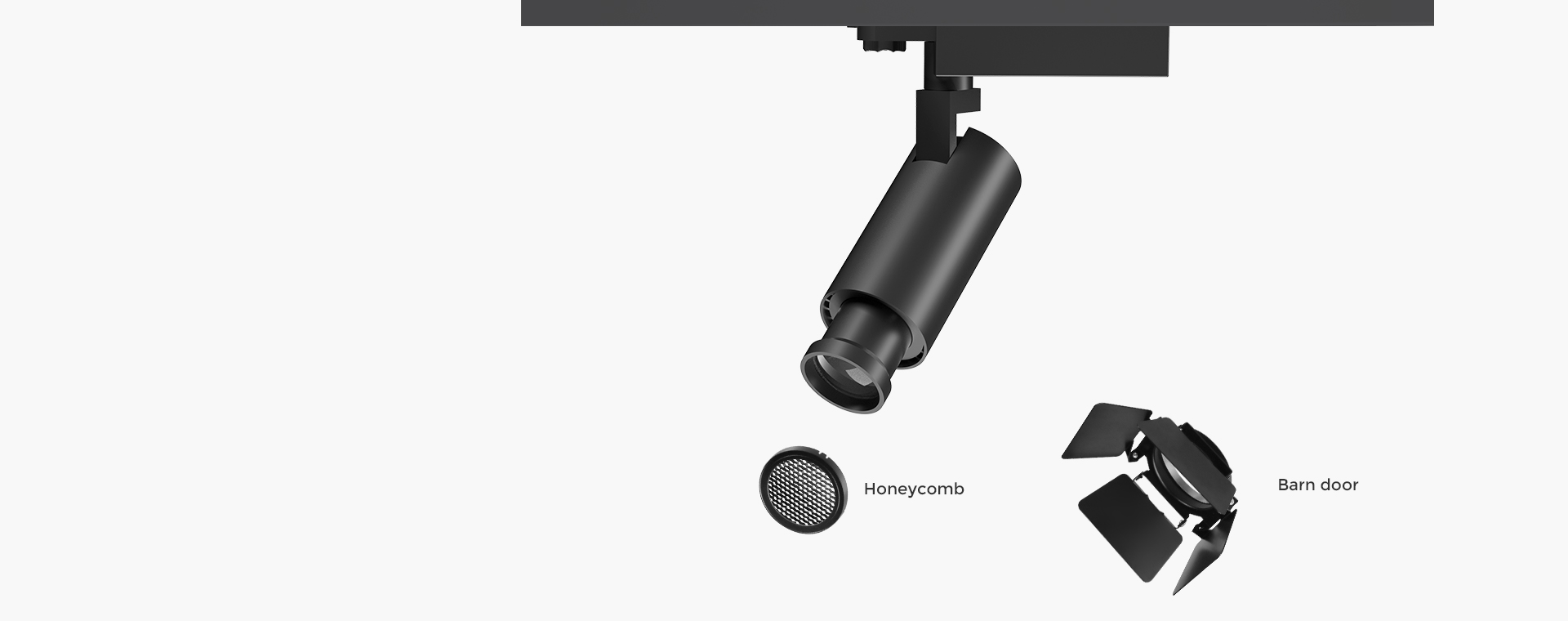

IMAX Zoomable LED track lights offer a wide angle adjusting range from 15°-70° with soft lighting effect to 10°-70° with sharp and clear-cut lighting effect. The two versions offer a complete lighting solution including accent lighting, wall washing lighting, and flood lighting. Moreover, the light quality remains outperforming at any angle when zooming through an easy push and pull of the lens. Honeycomb and barn door can be added for a better visual comfort.

IMAX-Zoomable 15W-20W

Capable Anti-glare Comfort

When most of the LED track lights are satisfied with UGR<19, IMAX Zoomable pushes the standard to the next level with 40-degree anti-glare angle and easy-to-install honeycomb and barn door, reducing UGR under 16 to bring every user a high-level eye comfort.

IMAX-Zoomable 15W-20W

Minimalist Design

As important as they are, screws can be a little "less wanted" for aesthetic purpose. Therefore, IMAX Zoomable series has made screws disappeared on the visible surface, leaving only a simple, clean, and elegant appearance for customers.

Specs

Features
Specsheet
Accessories

-Slim and clean design with integrated driver.(15W, 20W)

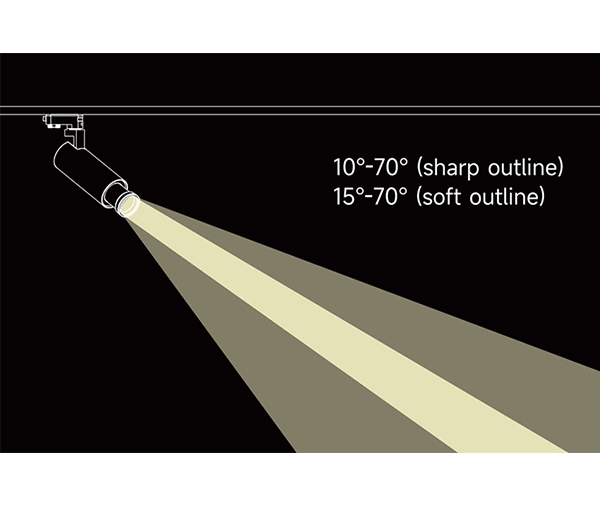

-By adjusting the focal length, the beam angle is changed from 10° to 70° with sharp outline or from 15° to 70°with soft outline .

-Privately-designed joints can hold the track head at any positions without malfunctions.

-Self-dimming is available thanks to built-in dimmer(0/1-10V dimming).

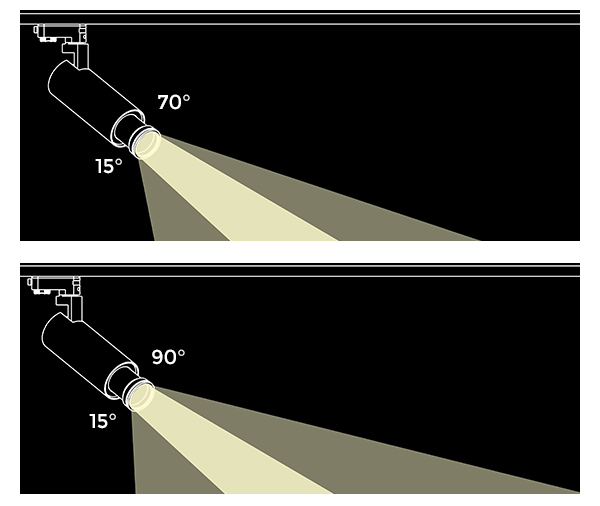

-360°+ rotation without dead angle and 90° vertical aiming.

Order info.	Power	Led Current	Luminous Flux(lm)	CRI	CCT	Beam Angle (°）
TLI015-01	15W	350mA	243lm	90+	3000K	10°
TLI015-01	15W	350mA	880lm	90+	3000K	70°
TLI015-01	15W	350mA	502lm	90+	3000K	15°
TLI015-01	15W	350mA	1127lm	90+	3000K	70°
TLI020-01	20W	500mA	332lm	90+	3000K	10°
TLI020-01	20W	500mA	1180lm	90+	3000K	70°
TLI020-01	20W	500mA	641lm	90+	3000K	15°
TLI020-01	20W	500mA	1448lm	90+	3000K	70°
TLI030-01	30W	700mA	380lm	90+	3000K	10°
TLI030-01	30W	700mA	1551lm	90+	3000K	70°
TLI030-01	30W	700mA	847lm	90+	3000K	15°
TLI030-01	30W	700mA	1828lm	90+	3000K	70°

	Honey-comb	TLI-AC01	IMAX-Zoomable 15W/20W
	Barn-door	TLI-AC06	IMAX-Zoomable 15W/20W

Downloads

Datesheet
Installation Manual
LDT/IES File

Model	Power	Picture	Download
TLI020-01	15W-20W		Download

None

Model	Power	Picture	Download
TLI020-01	15W-20W		IES LDT
